METART-WW34MSS-Triple Wires Architectural Stainless Steel Wire Mesh

Specification

Material: Stainless Steel 201, 304, or 316.

Mesh Type: Rigid Architectural Wire Mesh

Opening rate: 10%

Estimated Square Meter Weight: Approx 15.8kg/㎡

Finish: Mill Finish

Sheet Size: Custom made.

GET A QUOTE

Introduction

The pattern in the series of WW34 known as METART WW34MSS is a somewhat medium-sized one.

This pattern has a more solid structure, a larger wire gauge, and a larger opening rate as compared to its identical variant pattern WW34SSS. Additionally, the wire gauge is larger.

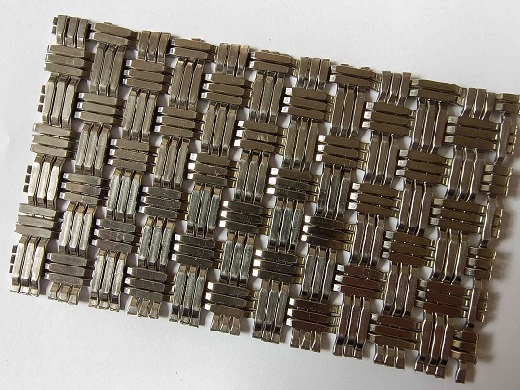

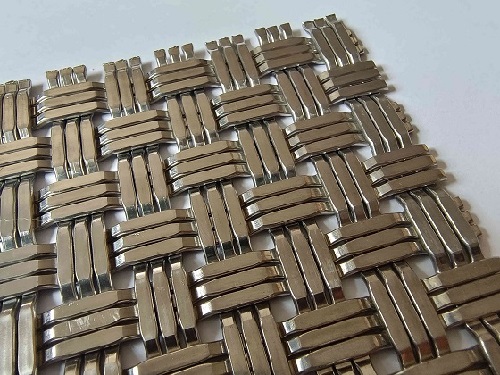

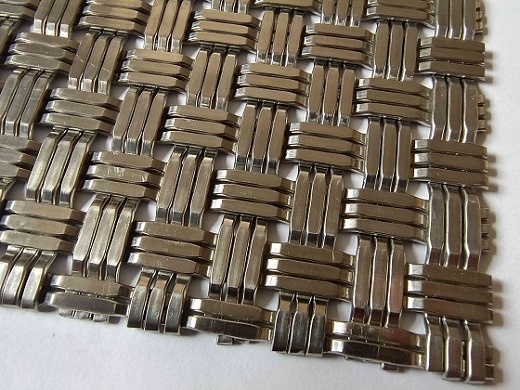

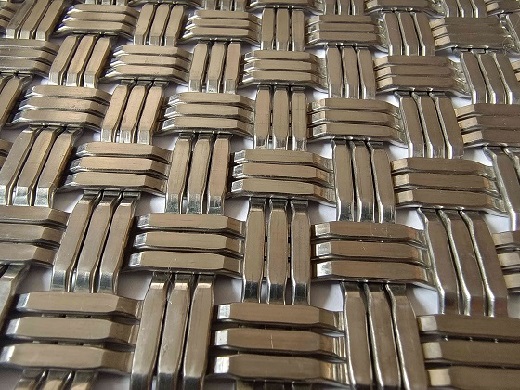

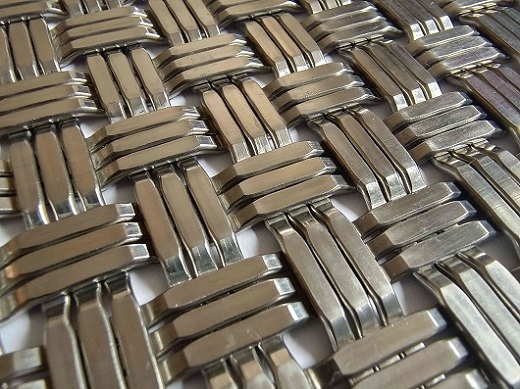

This design produces a stunning appearance while offering an excellent level of discretion thanks to the use of 9 mm wide groups of triple-flattened stainless steel wires and a hole size of 4 mm by 4 mm. This inventive woven mesh design has a total screen thickness of 2.8mm, making it suitable for a wide range of architectural and decorative applications. It is particularly useful for projects that require a very high level of seclusion and rigidity.

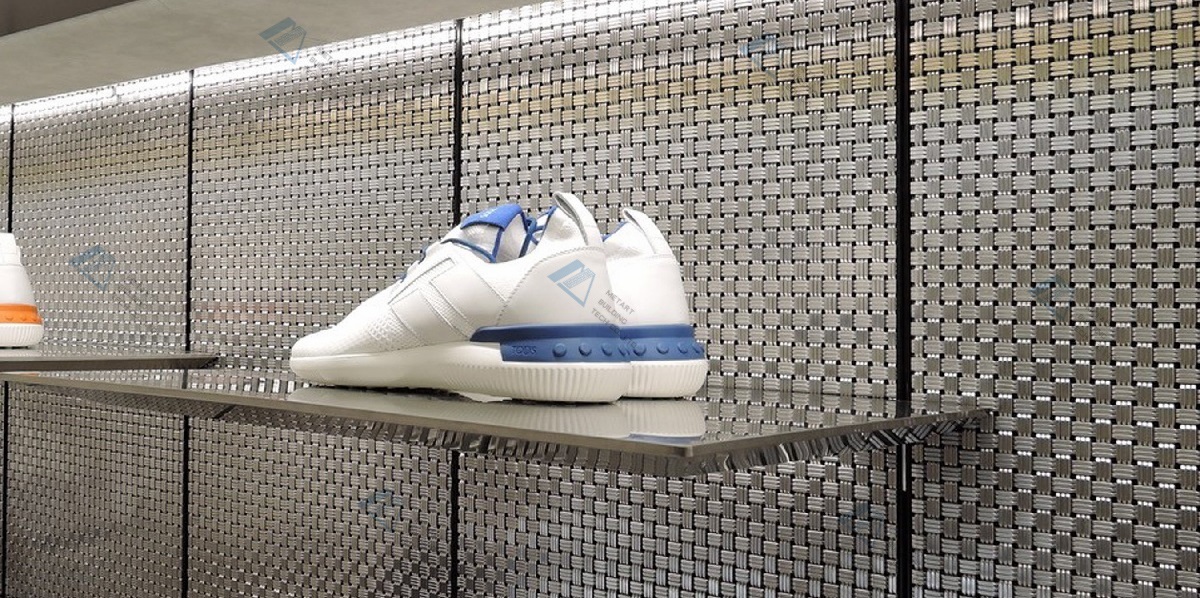

This architectural woven wire pattern is appropriate for use as hotel wall cladding mesh, lift cabin cladding mesh, studio partition screen infill panels, conference center privacy screen mesh, exhibition hall decorative fencing panel, bank privacy screen mesh, flats privacy building facade mesh, art center wall feature screens, airport wall cladding, airport privacy screens, swimming pool privacy screen mesh, commercial building shading screens, office metal divider infill mesh, and commercial building shading screens.

Specification Table.



Overall thickness of the fabric

2.8mm

Opening rate

10%

Privacy Rate

90%

Estimated Square Meter Weight

15.8kg/㎡

Finish

Mill Finish

The way of cutting

Straight Cut

All optional ways of cut

Straight Cut

All optional Finishes

Mill Finish ( Original stainless steel bright finish),
Antique Bronze plating, Antique Copper plating, Antique brass plate, vacuum titanium plated

Custom made specifications and Mini order accepted.

Note:

All the measurements including wire thickness, diameter, opening, and overall thickness are nominal numbers. The actual specification might have a tiny bit of tolerance according to fabrication

Application
