METART-WW33-Elevator Wall Cladding Decorative Metal Mesh

Specification

Raw Material: SS201, SS304, SS316.

Mesh Type: Rigid Architectural Cladding Wire Mesh

Opening Area: 0%

Estimated Square Meter Weight: Approx 12.5kg/㎡

Finish: Mill Finish

Sheet Size: Custom made

GET A QUOTE

Introduction

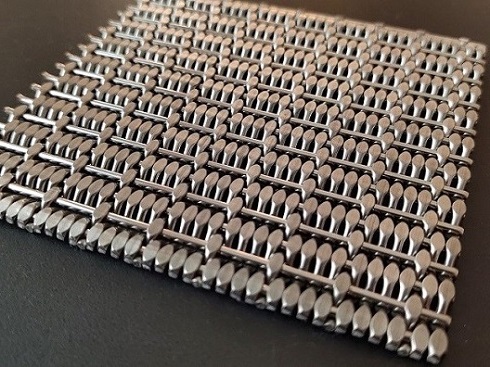

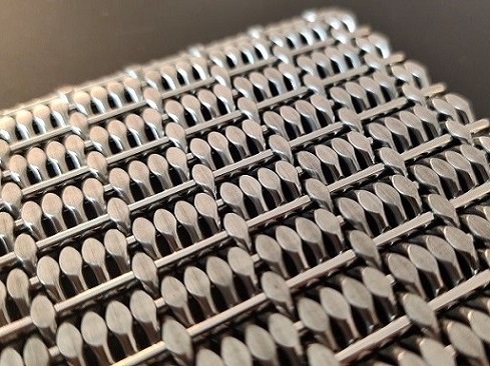

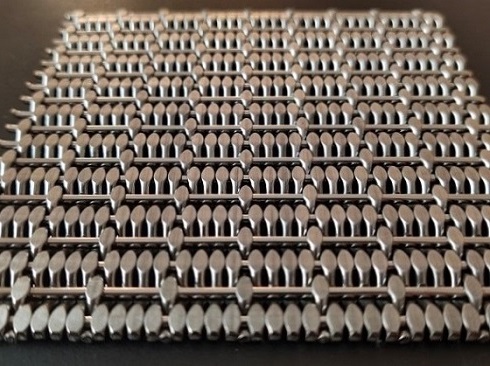

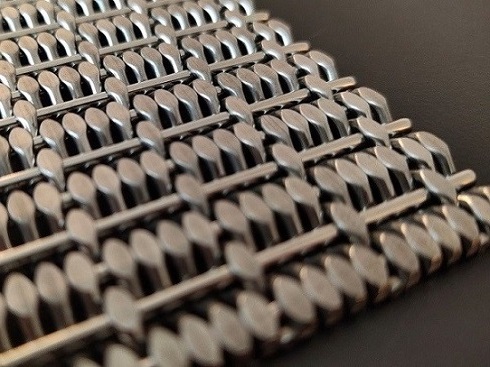

Our architectural woven wire cladding wire mesh pattern METART-WW33 is also a combination of partially flattened stainless steel wires and straightened wire rods.

Due to its solid structure, this ornamental stainless steel wire mesh is more suitable for commercial wall cladding requirements, especially for lift or elevator cabin wall cladding for decoration purposes.
Specification Table.

Raw Material

SS201, SS304, SS316

Mesh Type

Rigid Architectural Wire Mesh

Wire Rod Diameter

1.65mm

Flattened Wire Diameter

1.85mm before flattened.

Wire Rod Pitch

5mm

Clear Hole Size

0mm

Overall thickness of the fabric

3.1mm

Opening rate

0%

Privacy Rate

100%

Estimated Square Meter Weight

12.5kg/㎡

Finish

Stainless Steel Mill Finish.

The way of cutting

Straight Cut

All optional ways of cut

Straight Cut

All optional Finishes

Mill Finish ( Original stainless steel bright finish),
Antique Bronze plating, Antique Copper plating, Antique brass plate, vacuum titanium plated

Custom made specifications and Mini order accepted.

Note:

All the measurements including wire thickness, diameter, opening, and overall thickness are nominal numbers. The actual specification might have a tiny bit of tolerance according to fabrication
