hello@metartmesh.comMETART-WW37-Wall Cladding Designer Wire Mesh
Raw Material: SS201, SS304, SS316
Mesh Type: Rigid Architectural Cladding Mesh
Opening rate: 0%
Estimated Square Meter Weight: Approx 11.3kg/㎡
Finish: Mill Finish
Sheet Size: Custom made.

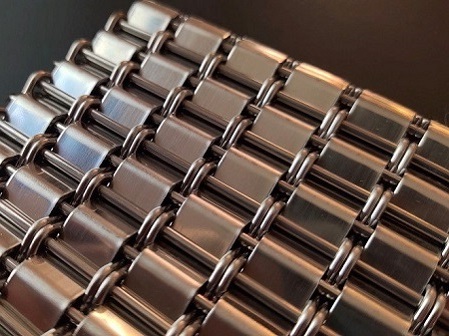

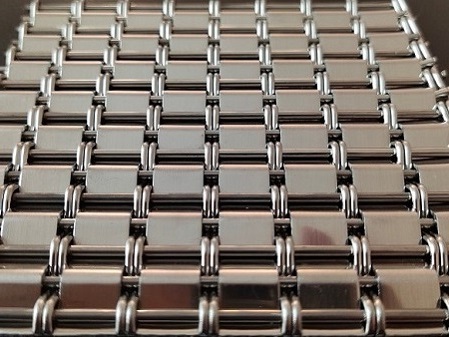

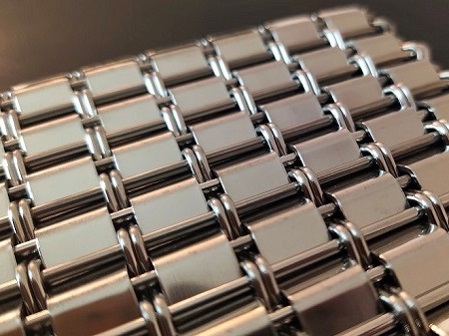

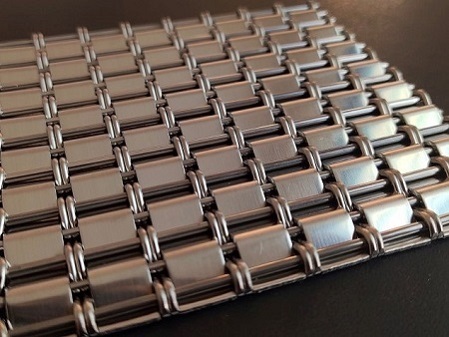

METART-WW37 rigid architectural cladding mesh is a versatile and durable designer wire mesh pattern suitable for a wide range of projects. It features two different types of warp wires, a group of double pre-crimped wires plus a big flat stainless steel strip, adding to its unique design and rigidity.
The METART-WW37 is available in three different stainless steel grades: SS201, SS304, and SS316. While SS201 is a cost-effective option, it is not recommended to be used in mill finish. It is better to be plated, such as PVD plated or copper plated, to enhance its appearance. SS304 is the most widely used material due to its chemical composition and properties, and SS316 is the best among the three grades. It is marine-grade, making it suitable for exterior architectural projects and decorations.

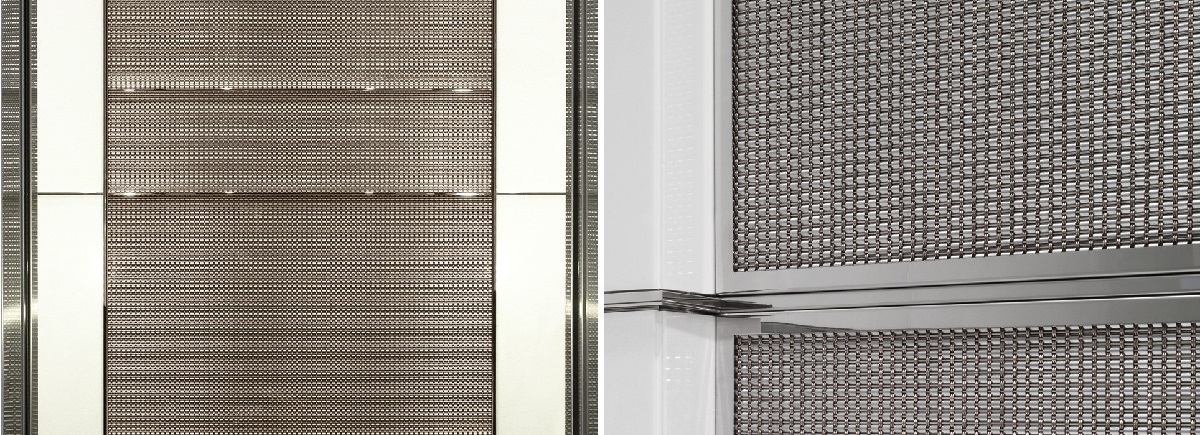

This wire mesh pattern is a great material for elevator wall cladding and other wall cladding projects. It is available in different finishes such as Antique Bronze plating, Antique Copper plating, Antique brass plate, PVD titanium plated, and Mill Finish. It is recommended to be plated to enhance its appearance and give it a color that makes the mesh look better.
The METART-WW37 ornamental cladding woven wire has an overall thickness of 4.5mm, with a weft wire rod diameter of 1.95mm, crimped warp wire diameter of 1.5mm, and crimped warp strips of 10x1mm. It has no opening at all, making it a 100% privacy wire mesh pattern that is ideal for cladding. The estimated square meter weight for this wire mesh is approx 11.3kg/㎡, making it sturdy enough for various applications.
Choose METART-WW37 woven wire mesh pattern for its unique design, durability, and versatility in various wall cladding projects. \
With different grades and finishes available, you can choose the one that best suits your project needs.
Specification Table.
Raw Material |
SS201, SS304,SS316 |
Mesh Type |
Rigid Architectural Cladding Mesh |
Weft Wire Rod Diameter |
1.95mm |
Crimped Warp Wire Diameter |
1.5mm |
Crimped Warp Strips |
10x1mm |
Aperture Size: |
0mm |
Overall thickness of the fabric |
4.5mm |
Opening rate |
0% |
Privacy Rate |
100% |
Estimated Square Meter Weight |
11.3kg/㎡ |
Finish |
Stainless Steel Mill Finish |
The way of cutting |
Straight Cut |
All optional ways of cut |
Straight Cut |
All optional Finishes |
Mill Finish ( Original stainless steel bright finish), |
Custom made specifications and Mini order accepted. |
|
Note: All the measurements including wire thickness, diameter, opening, and overall thickness are nominal numbers. The actual specification might have a tiny bit of tolerance according to the fabrication |
