METART-WW03B-Antique Copper Finish Lift Cabin Cladding Mesh

Specification

Material: Stainless Steel 201, 304, 316

Type: Rigid Decorative Wire Mesh

Opening Area: 0%

Estimated Square Meter Weight: Approx 10.7kg/㎡

Finish: Antique Copper Plating.

Screen Width: Custom made.

Screen Length: Custom made.

GET A QUOTE

Introduction

The reverse of wire mesh design WW03 is represented by METART WW03B.

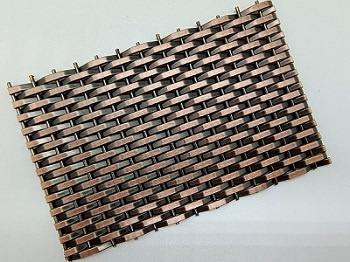

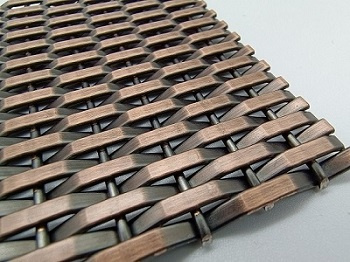

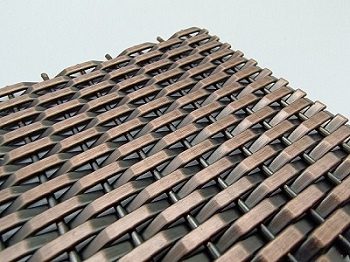

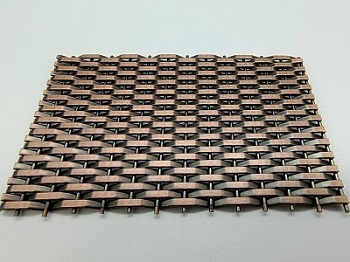

WW03B, which has the exact same specs as WW03, consists of 1.5mm straightened stainless steel wire rods and 3x1.2mm stainless steel wire strips.

This solid metal screen has no opening at all in either direction after a very tight weaving technique. Though almost completely private, there is still some ventilation in the spaces between the crimped wires and rods.

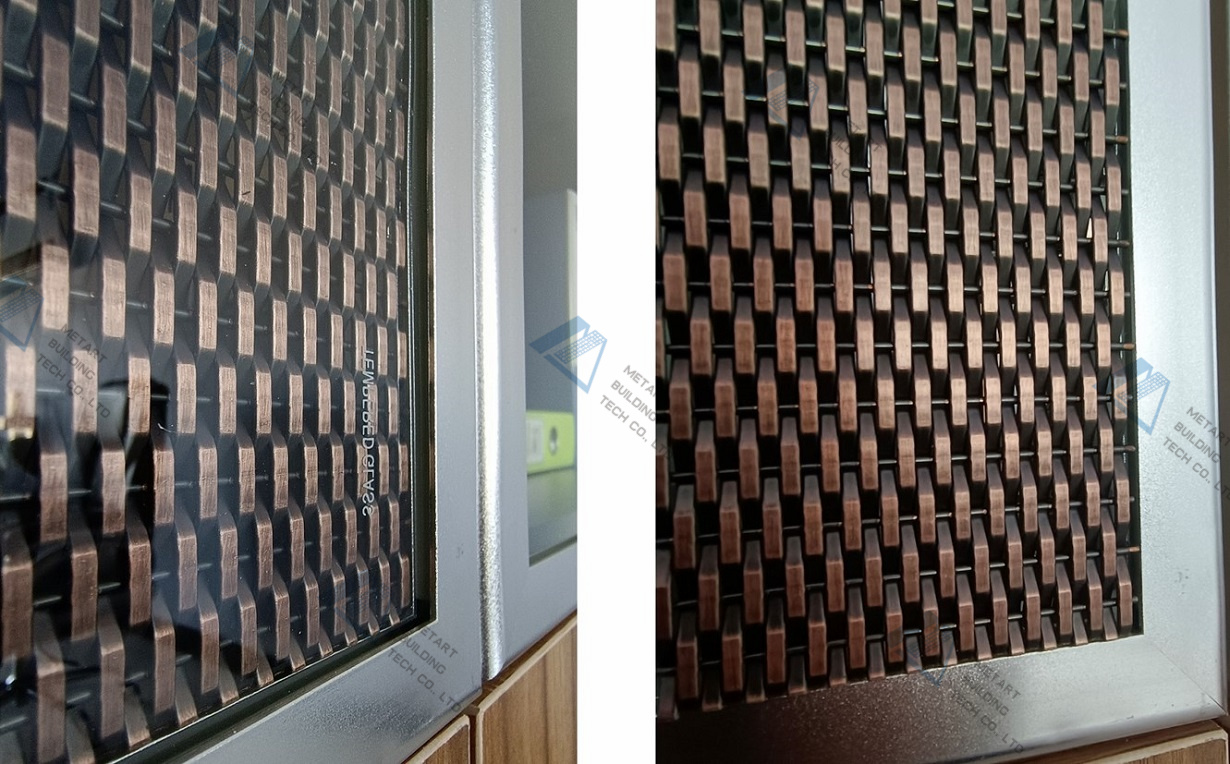

The material for the cladding of an elevator cab would be a fantastic choice because this side of the mesh design seems flat and smooth.

Specification Table.

Material

Stainless Steel Grade 201, 304 or 316

Type

Rigid Decorative Wire Mesh

Flat Stainless Steel Wire Strip ( Width x Thickness)

3x1.2mm

Rod Diameter

1.5mm

Rod Pitch

9.35mm

Overall Thickness of the fabric

3.6mm

Opening Area

0%

Block out

100%

Privacy Rate

100%

Weight:

10.7kg/Square Meter

Finish

Antique copper plating

Customized specifications and Mini order accepted.

All optional Finish

Mill Finish ( Original stainless steel bright finish),
Antique Bronze plating, Antique Copper plating, Antique brass plate, Vacuum Titanium Plated-Golden, Titanium Plated Black, Titanium Plated Rose Gold, Painted, PVDF Coated, Powder Coated.

Note:
All the measurements including wire thickness, diameter, opening, and overall thickness are nominal numbers. The actual specification might have a tiny bit of tolerance according to fabrication.

Application
