METART-WW09-Decorative Crimped Stainless Mesh
Material: Stainless Stee Wires, Brass Wire, Copper Wire, Aluminum wires.
Type: Rigid Architectural Wire Mesh
Opening Area: 74%
Estimated Square Meter Weight: Approx 3.2kg/㎡
Finish: Mill Finish
Screen Width: Custom made
Screen Length: Custom made

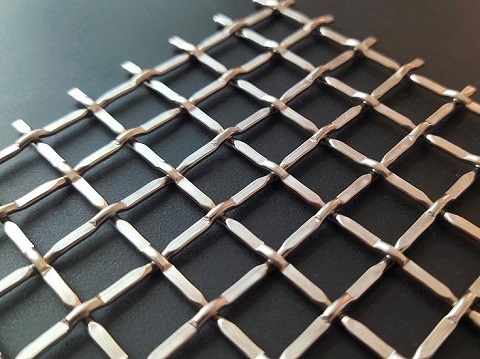

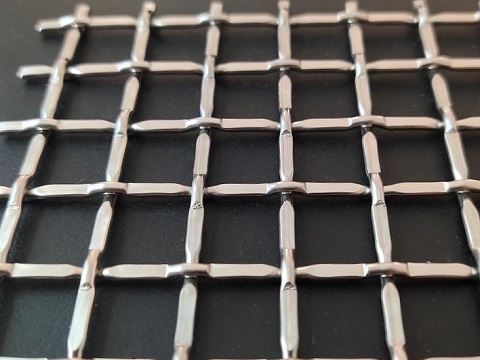

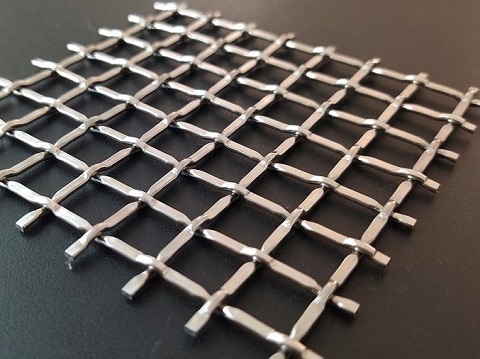

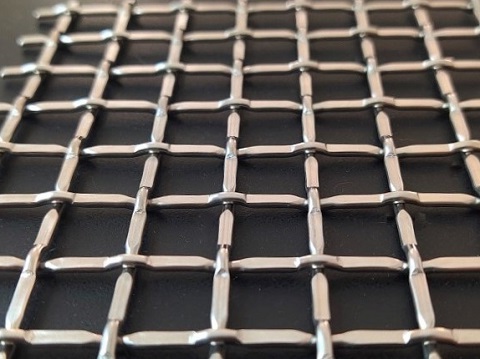

METART-WW09 is a simple but typical architectural woven crimped wire mesh.
Most of the time, this pattern is made of stainless steel wires, which were partially flattened by uniquely designed dies and made up of plain weave.
Other decorative materials including red copper wires, brass wires, bronze wire, and aluminum can also be used in the production of this decorative wire mesh pattern.

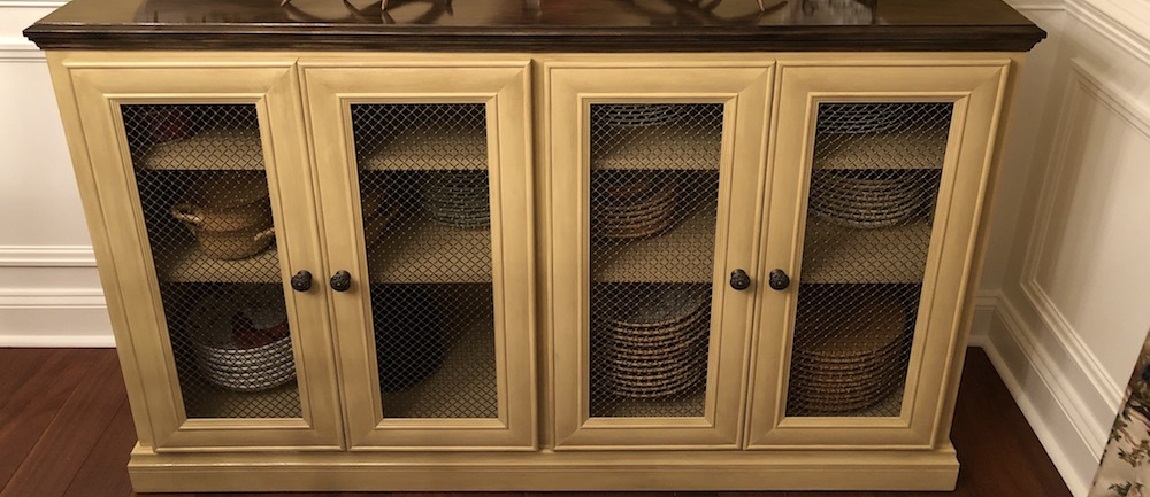

This decorative wire mesh pattern is widely used as ceiling tile architectural wire grilles, fencing infill wire mesh panels, window screen infill mesh grilles, cabinet insert woven wire mesh, decorative partition screen infill mesh, balustrade infill mesh panels, etc.
Specification Table.
|
Material |
SS 201,304,316, Brass Wire, Copper Wire, Bronze Wire,Aluminium. |
|
Type |
Rigid Architectural Wire Mesh |
|
Wire Diameter Before Flattened |
1.8mm |
|
Clear Hole Size |
10.4mm (15.4mm Optional) |
|
Overall thickness of the fabric |
2.6mm |
|
Opening Area |
74% |
|
Privacy Rate |
26% |
|
Estimated Square Meter Weight |
3.2kg/㎡ |
|
Finish |
Stainless Steel Mill Finish |
|
The way of cutting |
Straight Cut |
|
All optional ways of cut |
Straight Cut, Diamond Cut |
|
All optional Finishes |
Mill Finish ( Original stainless steel bright finish), |
|
Customized specifications and Mini order accepted. |
|
|
Note: All the measurements including wire thickness, diameter, opening, and overall thickness are nominal numbers. The actual specification might have a tiny bit of tolerance according to fabrication |
|
