METART-WW26AL–Aluminium Architectural Wire Mesh

Specification

Raw Material: Aluminium Alloy

Mesh Type: Rigid Architectural Mesh

Opening Rate: 41%

Estimated Square Meter Weight: Approx 2.4kg/㎡

Finish: Mill Finish

Sheet Size: Custom made.

GET A QUOTE

Introduction

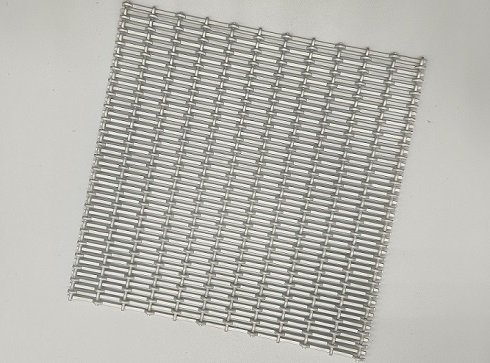

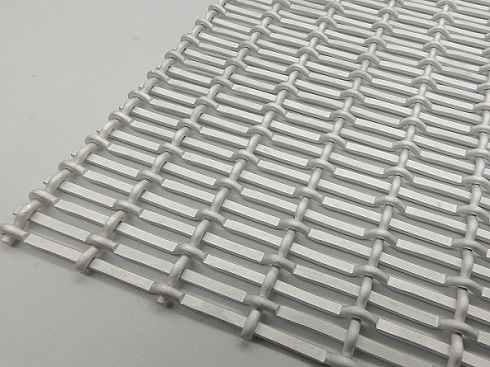

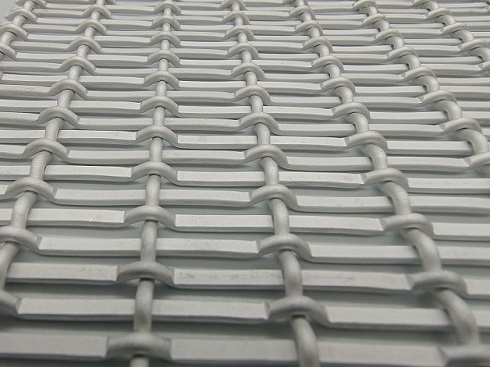

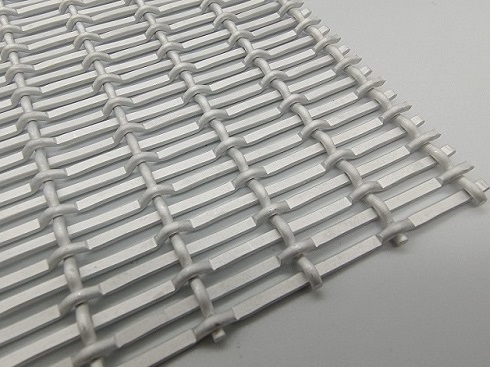

METART-WW26AL is an architectural aluminum woven wire mesh.

All of the regular wires we are using in the WW26 stainless steel series are 1.5mm, as stainless steel has enough strength and hardness to keep the mesh rigid.

But aluminium material is much sofer, that is why we increased the regular round wire from 1.5mm to 2mm to keep its rigidity.

This type of Aluminum decorative wire screen panel is flexible for wall cladding and shop fitting. It is then widely used in both interior and exterior building decorations.

Specification Table.

Raw Material

Aluminum Alloy Grade 5154, Grade 6020, Grade 6061

Mesh Type

Rigid Architectural Wire Mesh

Wire Strip Before Flattened

2mm

Wire Rod Diameter

2mm

Clear Hole Size

1.8x16mm

Strip Pitch

4mm

Rod Pitch

17.5mm

overall thickness of the fabric

3.8mm

Opening Area

41%

Privacy Rate

59%

Weight

2.4kg/Square Meter

Finish

Mill Finish

The way of cutting

Straight Cut

All optional ways of cut

Straight Cut Only

All optional Finishes

Mill Finish, Painted, PVDF Painted

Customized specifications and Mini order accepted.

Note:

All the measurements including wire thickness, diameter, opening, and overall thickness are nominal numbers. The actual specification might have a tiny bit of tolerance according to fabrication
