hello@metartmesh.comMETART-WW33SSRB-B-Lift Cabin Cladding Designer Wire Mesh
Raw Material: SS304, SS316
Mesh Type: Rigid Mesh
Opening Area: 0%
Weight: Approx 14kg/Square Meter
Finish: Mill Finish
Screen Width: Customized.
Screen Length: Customized.

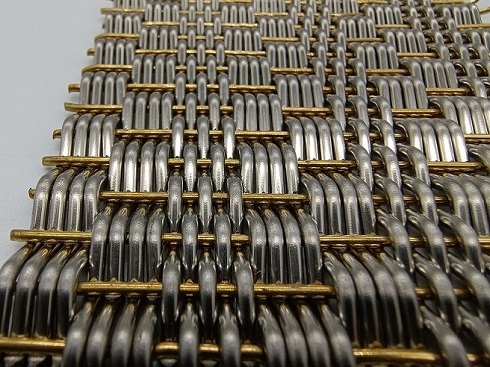

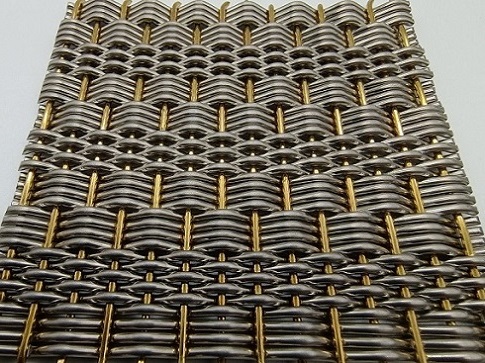

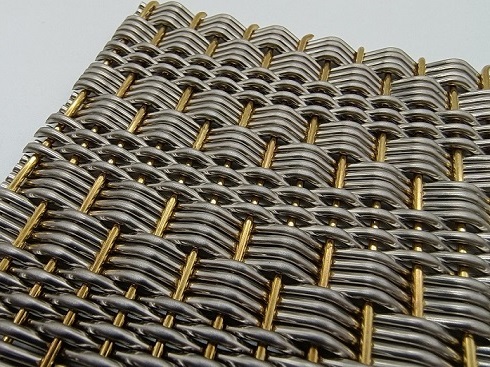

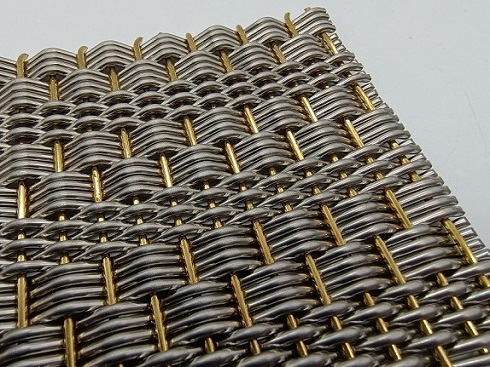

The METART WW33SSRB-B is a premium rigid mesh that adds a touch of elegance to any project. This mesh is the opposite side of WW33SSRB, with a unique woven style that sets it apart.
The materials used in this mesh are stainless steel 304/316 and true brass wires, making it both durable and visually appealing.
With a crimped warp wire diameter of 1.95mm and a brass weft wire diameter of 1.45mm, the METART WW33SSRB-B features a solid designer wire mesh panels with no holes and a brass wire rod pitch of 6.8mm.
The total thickness of the fabric is 4.5mm, making it sturdy and suitable for a wide range of applications.
Whether you're looking for a decorative mesh for interior wall cladding or elevator cabin cladding projects, the METART-WW33SSRB-B is an pretty good choice.
Specification Table.
Raw Material |
ss304 or ss316 wires + True Brass wires |
Mesh Type |
Rigid Architectural Cladding Wire Mesh |
Crimped Warp Wire Diameter: |
1.95mm |
Brass Weft Wire Diameter |
1.45mm |
Brass Wire Rod Pitch |
6.8mm |
Aperture Size |
0mm |
Overall thickness of the fabric |
4.5mm |
Opening rate |
0% |
Privacy Rate |
100% |
Estimated Square Meter Weight |
14kg/㎡ |
Finish |
Mill Finish. |
The way of cutting |
Straight Cut |
All optional ways of cut |
Straight Cut |
All optional Finishes |
Mill Finish |
Custom made specifications and Mini order accepted. |
|
Note: All the measurements including wire thickness, diameter, opening, and overall thickness are nominal numbers. The actual specification might have a tiny bit of tolerance according to fabrication |
