METART-WW23-22082-Kitchen Cabinet Door Decorative Wire Grilles

Specification

Raw Material: Stainless Steel Grade 201,304 and 316

Mesh Type: Rigid Architectural Mesh

Opening Rate: 39%

Estimated Square Meter Weight: Approx 5kg/㎡

Finish: Mill Finish

Sheet Width: Custom made.

Sheet Length: Custom made.

GET A QUOTE

Introduction

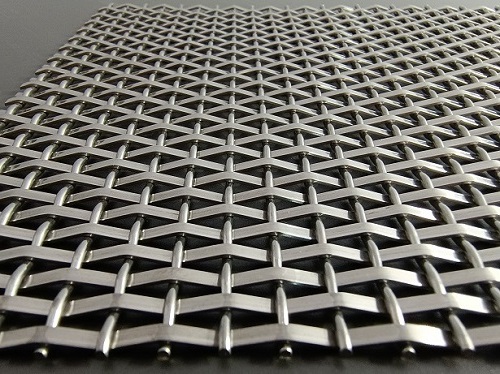

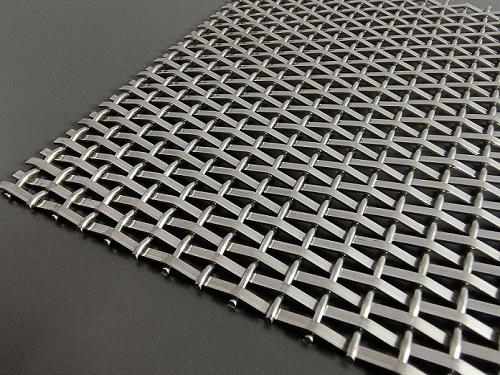

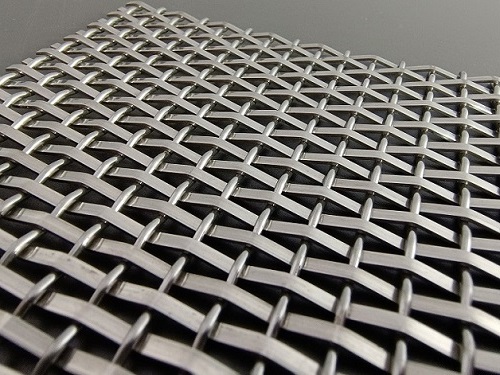

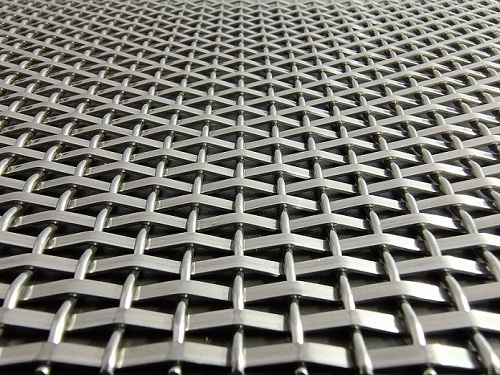

METART WW23-22082 looks similar to WW22. The number 22082 represents a 2.2x0.8mm wire strip and 2mm slot.

Both of WW23 and WW22 are slot hole decorative wire mesh, but WW23 has an opposite hole direction.

In the meantime, the strip wires of decor mesh pattern WW23-22082 are smooth and gloss without any crimps.

This decorative stainless steel grille can be used in kitchen cabinet door fabrication, wall cladding projects, and decorative partition screen fabrications.
Specification Table.

Raw Material

Stainless Steel Grade 201,304 or 316

Mesh Type

Rigid Architectural Wire Mesh

Wire Strip (widthxthickness)

2.2x0.8mm

Wire Rod Diameter

1.45mm

Clear Hole Size

2.2x5.6mm

Strip Pitch

4.5mm

Rod Pitch

7.1mm

Overall thickness of the fabric

2.45mm

Opening rate

39%

Privacy Rate

61%

Estimated Square Meter Weight

5kg/㎡

Finish

Stainless Steel Mill Finish

The way of cutting

Straight Cut

All optional ways of cut

Straight Cut Only

All optional Finishes

Mill Finish ( Original stainless steel bright finish),
Antique Bronze plating, Antique Copper plating, Antique brass plate, vacuum titanium plated, Painted, PVDF Coated,

Customized specifications and Mini order accepted.

Note:

All the measurements including wire thickness, diameter, opening, and overall thickness are nominal numbers. The actual specification might have a tiny bit of tolerance according to fabrication

Application



GET A QUOTE
