Ornamental Stainless Steel Woven Wire Mesh-METART-WW38

Specification

Raw Material: SS201,SS304,SS316

Mesh Type: Rigid Architectural Wire Mesh

Opening Rate: 57%

Estimated Square Meter Weight: Approx 3.5kg/㎡

Finish: Mill Finish

Sheet Size: Custom made.

GET A QUOTE

Introduction

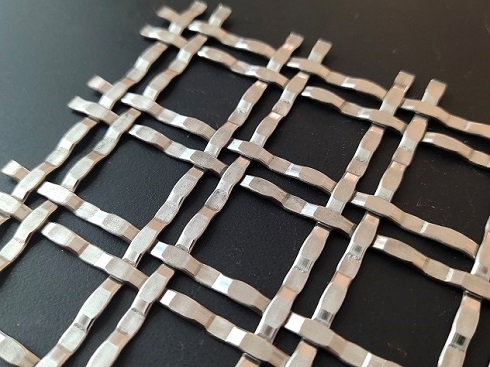

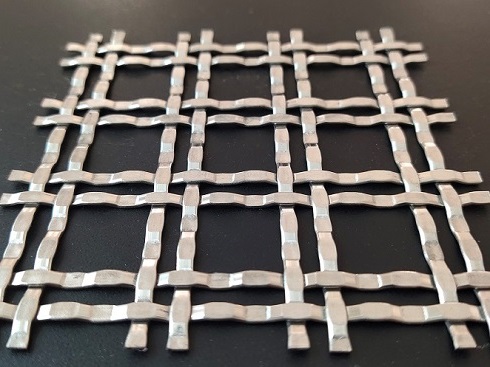

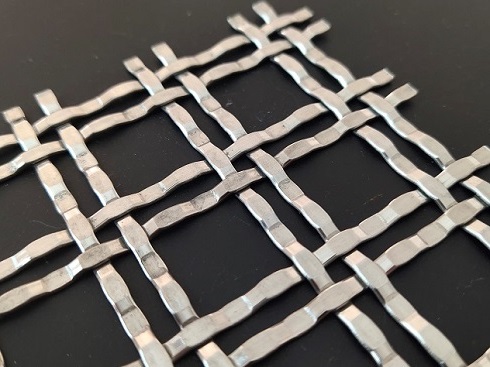

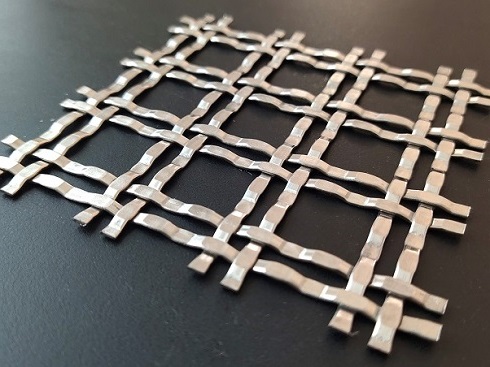

METART-WW38 is an ornamental woven wire mesh pattern that is usually made of stainless steel wires, including the cheapest grade ss201, the most commonly used food grade ss304, and the marine grade 316.

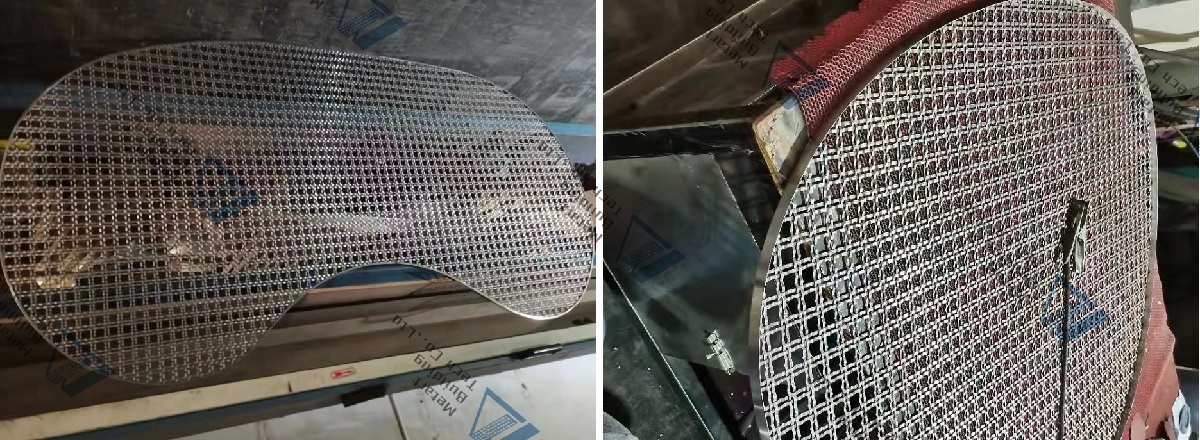

Using 3.2mm wide by 0.9mm thick flat wires, this ornamental metal mesh is suitable for a lot of interior decoration applications including cabinetry door inserts, furniture wire mesh, shopfitting wire mesh, glass infill wire mesh, architectural screening infills, and many other DIY decorative applications.
Specification Table.

Raw Material

SS201, SS304,SS316

Mesh Type

Rigid Architectural Wire Mesh

Flattened Wire Strip ( width x thickness)

3.2x0.9mm

Big Square Hole Size

16.4x16.4mm

Small Square Hole Size

3.5x3.5mm

Slot Hole Size

3.5x16.4mm

Overall thickness of the fabric

1.8mm

Opening rate

57%

Privacy Rate

43%

Estimated Square Meter Weight

3.5kg/㎡

Finish

Stainless Steel Mill Finish

The way of cutting

Straight Cut

All optional ways of cut

Straight Cut

All optional Finishes

Mill Finish ( Original stainless steel bright finish),
Antique Bronze plating, Antique Copper plating, Antique brass plate, vacuum titanium plated

Custom made specifications and Mini order accepted.

Note:

All the measurements including wire thickness, diameter, opening, and overall thickness are nominal numbers. The actual specification might have a tiny bit of tolerance according to fabrication
