Aluminium Alloy Woven Wire Mesh

Specification

Material: Aluminum Alloy Wires

Type: Insects Screen Mesh

Finish: Mill finish,Charcoal painted or Powder coated.

Mesh Count: 1x1Mesh to 30x26Mesh

Wire Diameter: Custom made

Width: 2', 2.5', 3', 4', 5' (Foot)

Length: Within 30M (100')

GET A QUOTE

Introduction

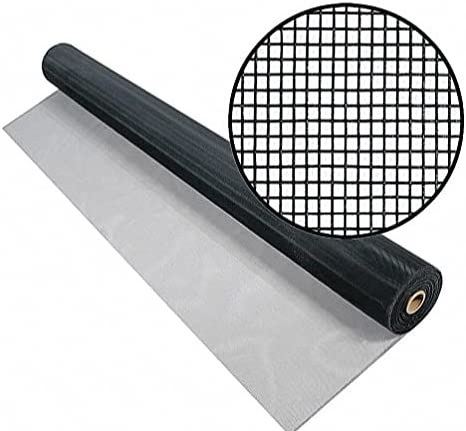

Aluminum woven wire mesh is made of quality aluminum alloy wires by plain weave or twill weave. As aluminum is a very light-weighted material than steel and stainless steel, aluminium woven wire mesh is widely used for both industrial and architectural applications.

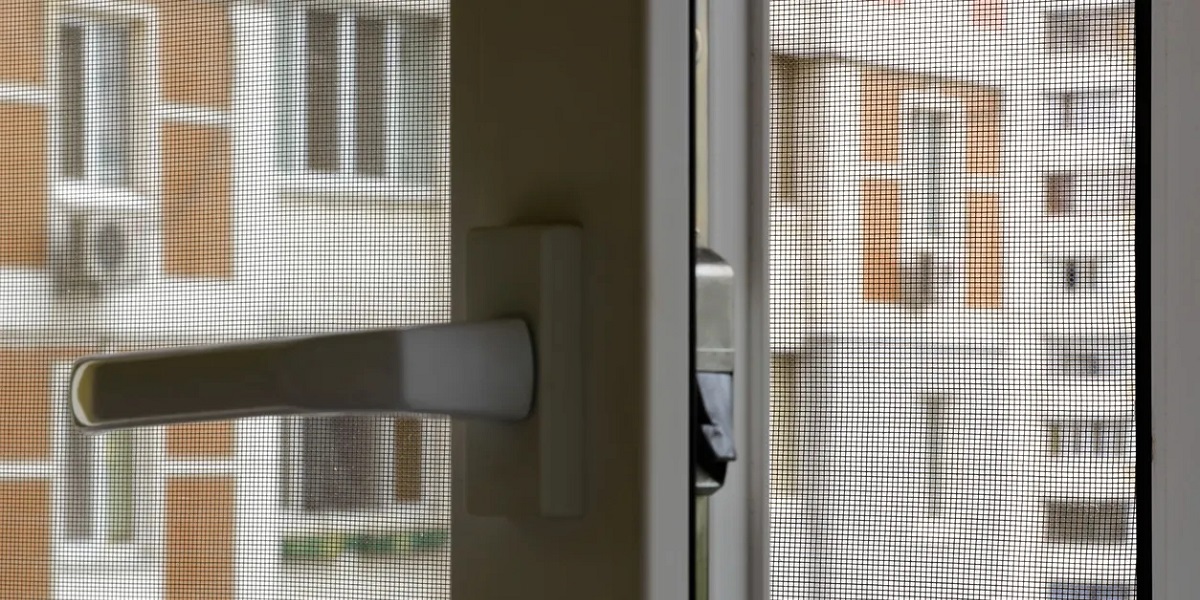

METART produces aluminum woven wire mesh ranging from mesh count 1x1 to 30x26Mesh. These wire meshes are mainly used for window screen mesh, screen door infill wire mesh, insect screen door wire mesh, gutter protection wire mesh, fencing infill wire mesh, partition screen infills, bushfire ember protective mesh, railing infill wire mesh,vents covers wire mesh, and hole protective wire mesh, etc.

Aluminium wire screens can be produced in either mill finish which is the original aluminum bright finish, or  powder-coated finishes and painted finishes.

The following are the 4 most commonly used woven aluminium wires options.

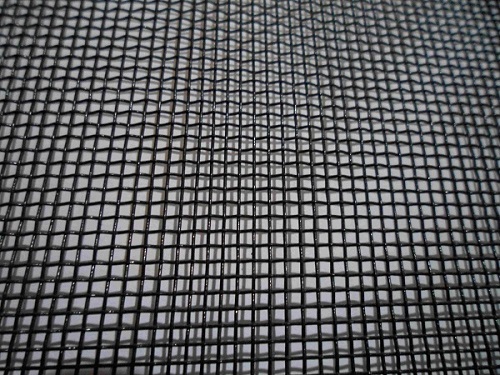

14Mesh Tough Aluminium Insect Screen Woven Wire Mesh

Type: Insect Screen Mesh

Finish: Black Powder Coated.

Mesh Count: 14x14Mesh

Wire Diameter: 0.42mm before coating.

Width: 2’, 2.5’, 3’, 4’ (Foot)  Length: Within 30M (100’)

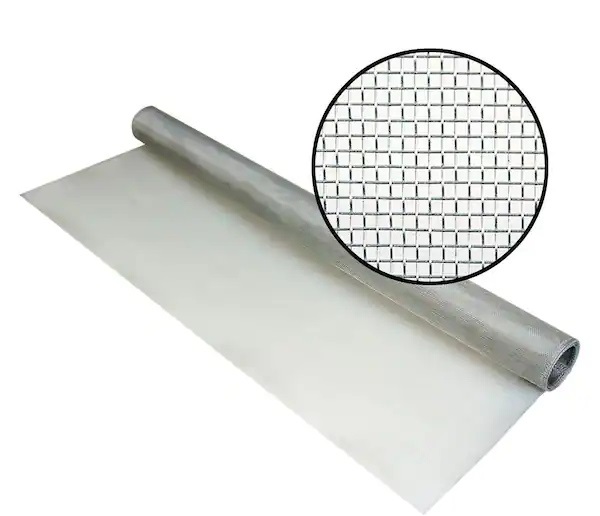

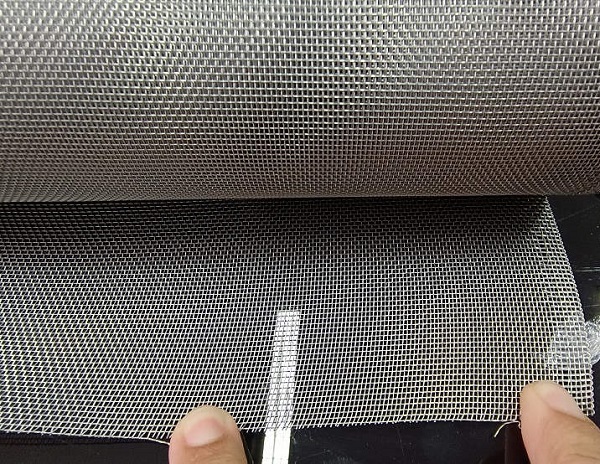

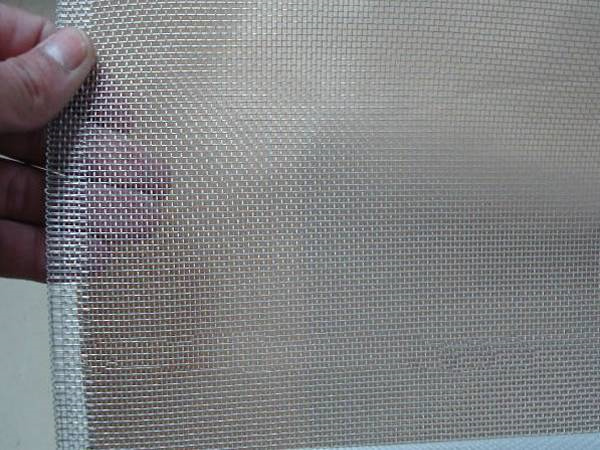

16Mesh Bright Aluminum Woven Wire Mesh

Type: Insect Screen Mesh

Finish: Mill Finish (Bright Aluminium Finish)

Mesh Count: 16x16Mesh

Wire Diameter: 0.2mm

Width: 2’, 2.5’, 3’, 4’ 5’ (Foot),

Length: Within 30M (100’)

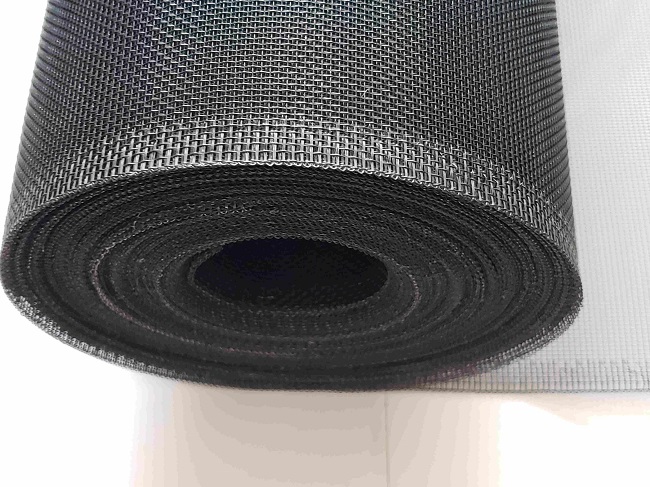

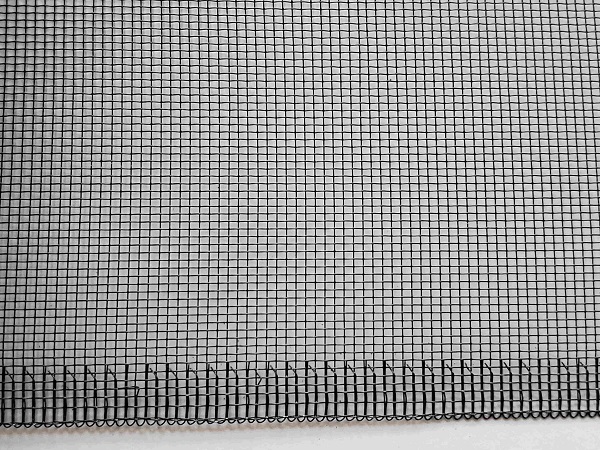

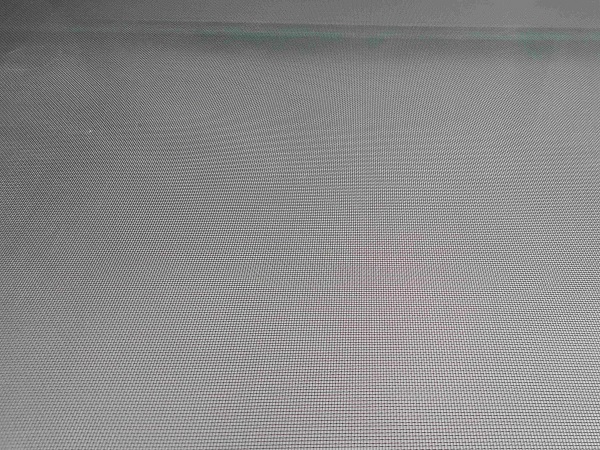

18Mesh Charcoal Insect Screen Aluminum Wire Mesh

Type: Insect Screen Mesh

Finish: Charcoal painted or powder coated or painted.

Mesh Count: 18x18Mesh, 18x16Mesh

Wire Diameter: 0.25mm before coating.

Width: 2’, 2.5’, 3’, 4’ 5’ (Foot)  Length: Within 30M (100’)

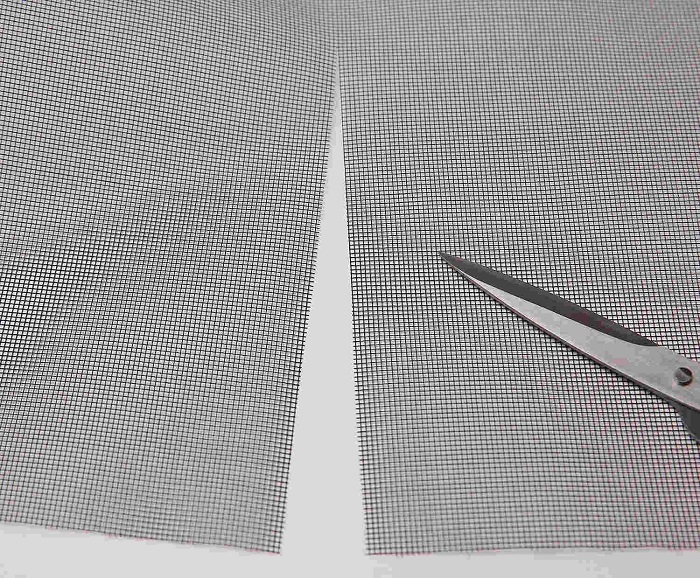

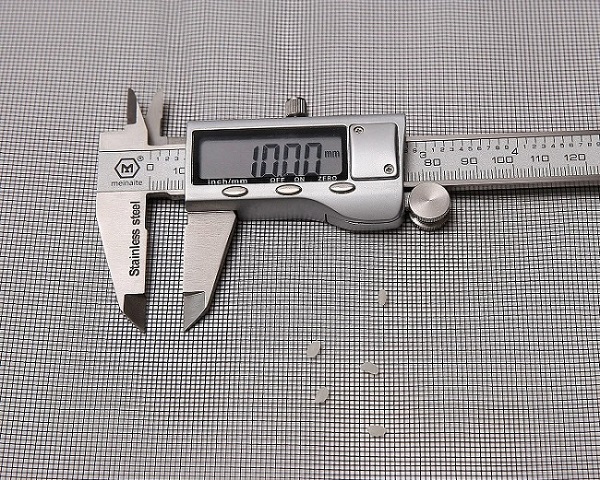

20Mesh Charcoal Insect Screen Aluminum Wire Mesh

Type: Insect Screen Mesh

Finish: Charcoal painted or powder coated or painted.

Mesh Count: 20x20Mesh, 20x18Mesh

Wire Diameter: 0.19mm to 0.27mm before coating.

Width: 2’, 2.5’, 3’, 4’ 5’ (Foot)

Length: Within 30M (100’)



Application
