hello@metartmesh.comMETART-WW26B-Antique Copper Plated Architectural Stainless Steel Mesh
Raw Material: SS201, SS304, SS316.
Mesh Type: Rigid Architectural Wire Mesh
Opening rate: 46%
Estimated Square Meter Weight: Approx 6kg/㎡
Finish: Antique Copper Plating
Sheet Size: Custom Made

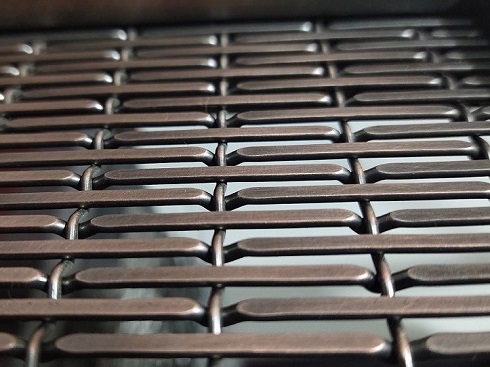

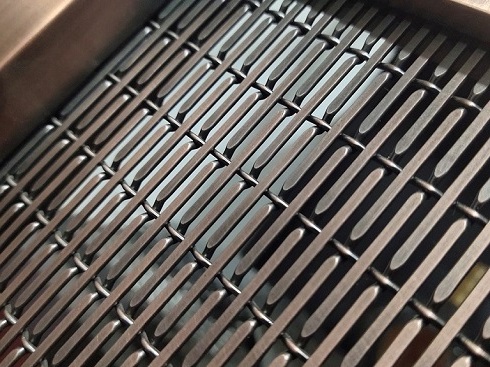

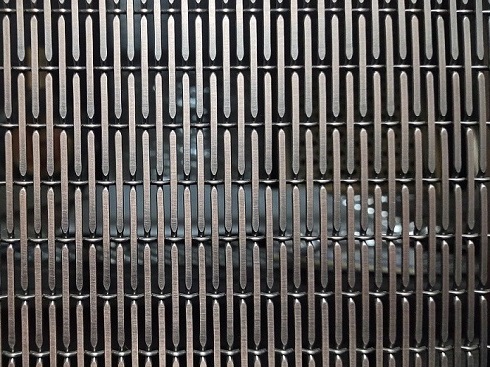

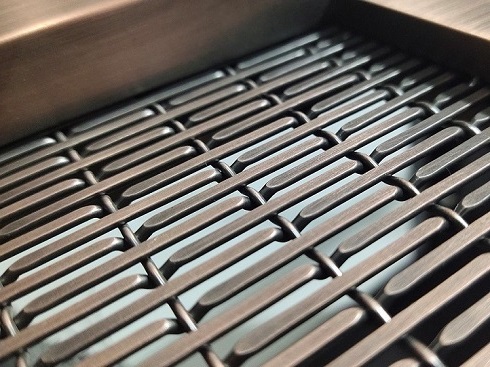

The exhibited samples is the opposide side of our architectural wire mesh pattern METART-WW26 which is copper plated and then antique processed to suit specific antique-style furniture, screens, and cabinets.
Specification Table.
Raw Material |
Stainless Steel 201,304 or 316 |
Mesh Type |
Rigid Architectural Wire Mesh |
Wire Strip(widthxthickness) |
2.2x1.2mm |
Wire Rod Diameter |
1.5mm |
Clear Hole Size |
2x16mm |
Strip Pitch |
4mm |
Rod Pitch |
17.5mm |
Overall thickness of the fabric |
3.1mm |
Opening Area |
46% |
Privacy Rate |
54% |
Estimated Square Mete Weight |
6kg/㎡ |
Finish |
Antique Copper Plated |
The way of cutting |
Straight Cut |
All optional ways of cut |
Straight Cut Only |
All optional Finishes |
Mill Finish ( Original stainless steel bright finish), |
Custom made specifications and Mini order accepted. |
|
Note: All the measurements including wire thickness, diameter, opening, and overall thickness are nominal numbers. The actual specification might have a tiny bit of tolerance according to fabrication |
