METART-WW06-51212-Suspended Ceiling Wire Mesh

Specification

Material: Stainless Steel Flat Wire Grade 201, 304 or 316.

Type: Rigid Architectural Wire Mesh

Opening Area: 49%

Estimated Square Meter Weight: Approx 4.5kg/Square Meter

Finish: Mill Finish

Screen Width: Custom made.

Screen Length: Custom made.

GET A QUOTE

Introduction

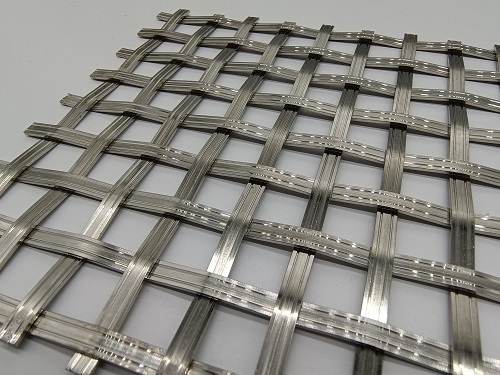

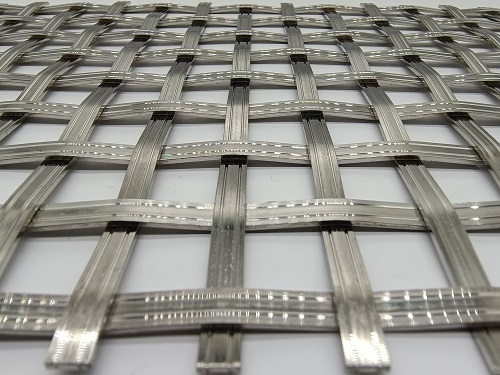

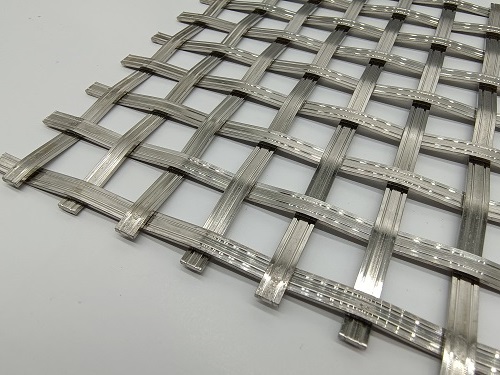

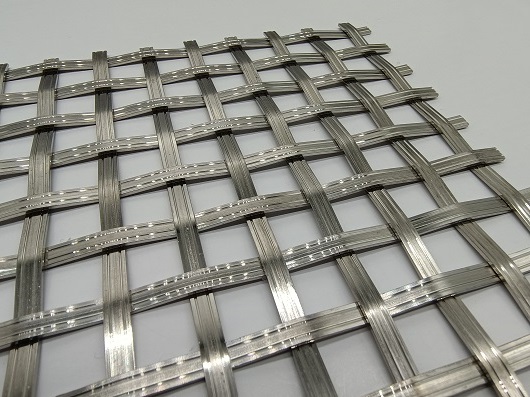

METART-WW06-51212 is an architectural stainless steel woven wire made that is made of 5mm wide and 1.2 mm thick stainless steel flat stainless steel strips, made up with an approx 11.5x11.5mm aperture.

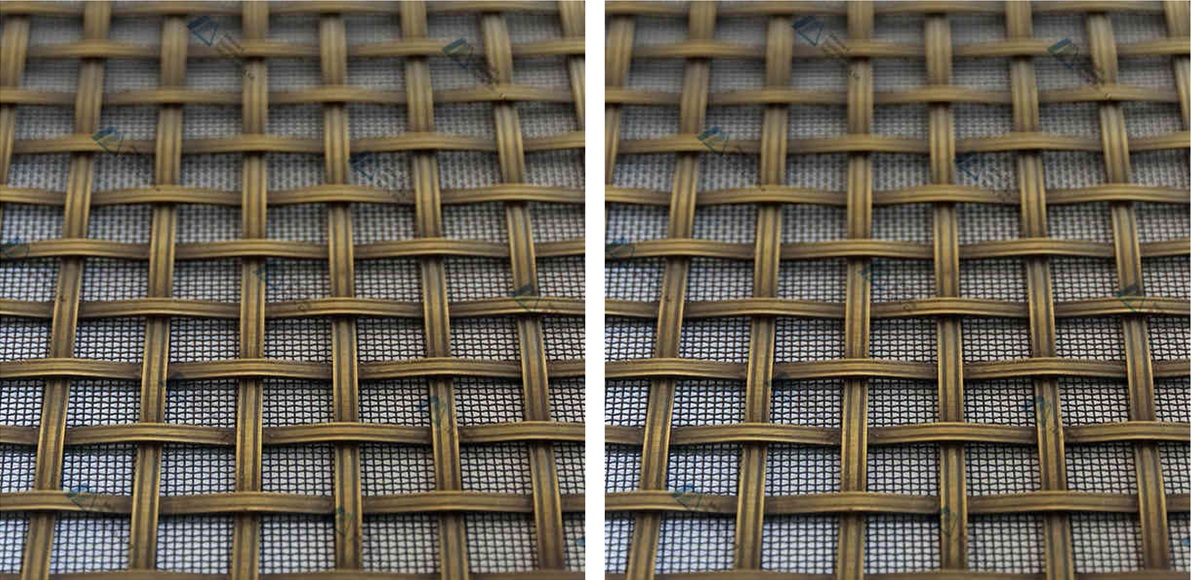

This design can be used as suspended metal ceiling infill decorative wire mesh, railing infill mesh, screen window or screen door decorative grilles, and commercial building partition screens.

We provided different surface treatments service, including copper plating, brass plating, antique finish after being plated, PVD plating and painting, etc.

Specifications Table.

Material

Stainless Steel Grade 201,304 or 316.

Type

Rigid Architectural Wire Mesh

Flat Wire Strip(WidthxThickness):

5x1.2mm

Clear Hole Size

11.5x11.5mm

Overall thickness of the fabric

2.6mm

Opening Area

49%

Privacy Rate

51%

Estimated Square Meter Weight

4.5kg/㎡

Finish

Stainless Steel Mill Finish

The way of cutting

Straight Cut

All optional ways of cut

Straight Cut, Diamond Cut

All optional Finish

Mill Finish ( Original stainless steel bright finish),
Antique Bronze plating, Antique Copper plating, Antique brass plate, Vacuum titanium plated, Painted, PVDF Coated,

Custom made specifications and Mini order accepted.

Note:

All the measurements including wire thickness, diameter, opening, and overall thickness are nominal numbers. The actual specification might have a tiny bit of tolerance according to fabrication

Application
