hello@metartmesh.comMETART-WW13-Hotel Partition Screen Infill Wire Mesh
Material: Stainless Steel Grade 201, 304, 316.
Type: Rigid Architectural Wire Mesh
Opening Area: 33%
Estimated Square Meter Weight: Approx 7kg/㎡
Finish: Mill Finish
Screen Width: Custom made
Screen Length: Custom made

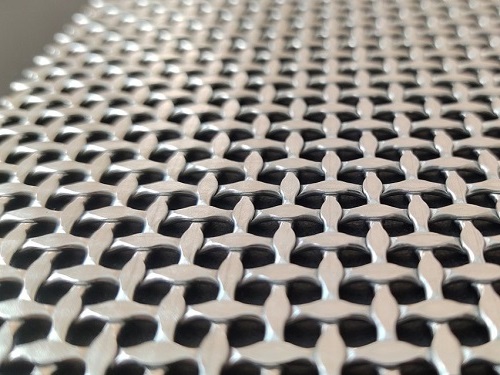

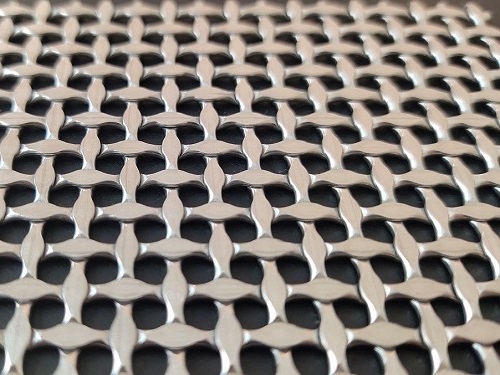

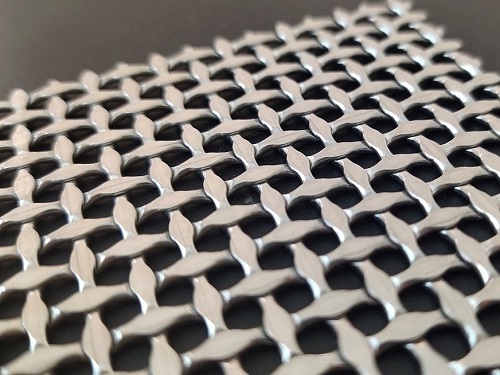

METART WW13 is a diamond-shaped architectural woven wire mesh. Through these uniquely designed pre-crimping tools, this pattern have holes similar to circles.
This decorative wire mesh pattern is suitable for cabinetry door wire grilles, wall cladding wire screens, partition screen infill wire mesh and laminated glass wire mesh.
Specification Table.
Material |
Stainless Steel Grade 201,304 or 316 |
Type |
Rigid Architectural Wire Mesh |
Wire Diameter before flattened. |
1.75mm |
Clear Hole Size |
3.5mm |
The total thickness of the fabric |
1.46mm |
Opening Area |
33% |
Privacy Rate |
67% |
Estimated Square Meter Weight |
7kg/㎡ |
Finish |
Stainless Steel Mill Finish |
The way of cutting |
Straight Cut |
All optional ways of cut |
Straight Cut, Diamond Cut |
All optional Finishes |
Mill Finish ( Original stainless steel bright finish), |
Custom made specifications and Mini order accepted. |
|
Note: All the measurements including wire thickness, diameter, opening, and overall thickness are nominal numbers. The actual specification might have a tiny bit of tolerance according to fabrication |
