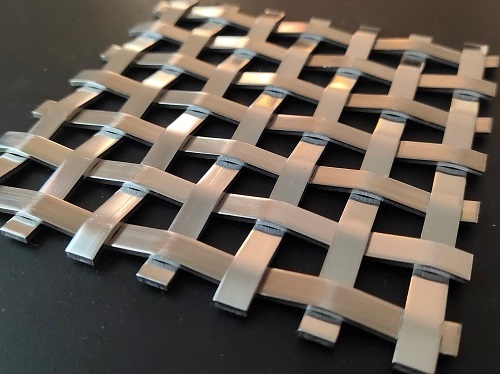

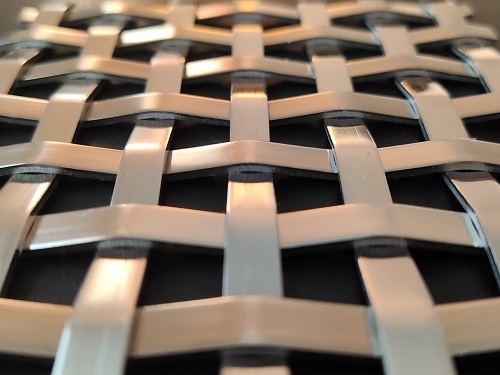

METART-WW05-61585-Balustrade Infill Architectural Wire Mesh
Material: Stainless Steel Wire Strips Grade 201, 304 or marine grade 316.
Type: Rigid Architectural Wire Mesh
Opening Area: 34%
Square Meter Weight: Approx 9.5kg/㎡
Finish: Mill Finish
Screen Width: Custom made.
Screen Length: Custom made.

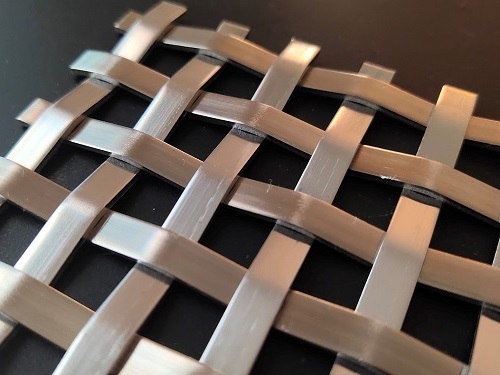

METART-WW05-61585 denotes flat wire strips with a dimension of 6 millimetres, a wire thickness of 1.5 millimetres, and an 8.5 millimetre clear hole size.
This pattern was conceptualised primarily for use in architectural construction endeavours. It is an excellent selection for use in balustrade infill mesh panels, balcony fence panels, and airport fencing systems.
Specifications Table.
|
Material |
Stainless Steel Wire Strips Grade 201, 304 or 316 |
|
Type |
Rigid Architectural Wire Mesh |
|
Flat Wire Strip(WidthxThickness): |
6x1.5mm |
|
Clear Hole Size |
8.5mm |
|
Overall thickness of the fabric |
3.4mm |
|
Opening Area |
34% |
|
Privacy Rate |
66% |
|
Weight |
9.5kg/㎡ |
|
Finish |
Stainless Steel Mill Finish |
|
The way of cutting |
Straight Cut |
|
All optional ways of cut |
Straight Cut, Diamond Cut |
|
All optional Finish |
Mill Finish ( Original stainless steel bright finish), |
|
Custom made specifications and Mini order accepted. |
|
|
Note: All the measurements including wire thickness, diameter, opening, and overall thickness are nominal numbers. The actual specification might have a tiny bit of tolerance according to fabrication |
|
Please refer to the following table for all the specifications of METART WW05.
|
Item # |
Flat Strip |
Hole Size |
Opening Area |
Privacy Rate |
Square Meter Weight |
Overall Thickness |
|
METART 05-61585 |
6x1.5mm |
8.5x8.5mm |
34% |
66% |
9.5KG |
3.4mm |
|
METART 05-41022 |
4x1.0mm |
2.2x2.2mm |
11% |
89% |
9.2KG |
3.2mm |
|
METART 05-31507 |
3x1.5mm |
7x7mm |
49% |
51% |
7.0 KG |
3.0mm |
|
METART 05-31005 |
3x1.0mm |
5x5mm |
39% |
61% |
5.8 KG |
2.0mm |
|
METART 05-31204 |
3x1.2mm |
4x4mm |
33% |
67% |
7.6 KG |
2.5mm |
|
METART 05-31205 |
3x1.2mm |
5x5mm |
39% |
61% |
7.0 KG |
2.4mm |
|
METART 05-31207 |
3x1.2mm |
7x7mm |
49% |
51% |
5.6 KG |
2.4mm |
|
METART 05-31210 |
3x1.2mm |
10x10mm |
59% |
41% |
4.3 KG |
2.4mm |
|
METART 05-31510 |
3x1.5mm |
10x10mm |
59% |
41% |
5.4 KG |
3.0mm |
|
METART 05-25103 |
2.5x1.0mm |
3x3mm |
29.7% |
70.3% |
7.1 KG |
2.0mm |
|
METART 05-22134 |
2.2x1.0mm |
3.4x3.4mm |
36.8% |
63.2% |
6.1 KG |
2.0mm |
|
METART 05-22834 |
2.2x0.8mm |
3.4x3.4mm |
36.8% |
63.2% |
4.9 KG |
1.6mm |
|
METART 05-22084 |
2.2x0.8mm |
4x4mm |
37% |
63% |
4.0 KG |
1.6mm |
|
METART 05-18186 |
1.8x1.8mm |
6.2x6.2mm |
60% |
40% |
6.4 KG |
3.6mm |
