METART-WW36-Wall Cladding Ornamental Stainless Steel Wire Mesh

Specification

Raw Material: SS201, SS304, SS316

Mesh Type: Rigid Architectural Cladding Mesh

Opening rate: 0%

Estimated Square Meter Weight: Approx 8.3kg/㎡

Finish: Mill Finish

Sheet Size: Custom made

GET A QUOTE

Introduction

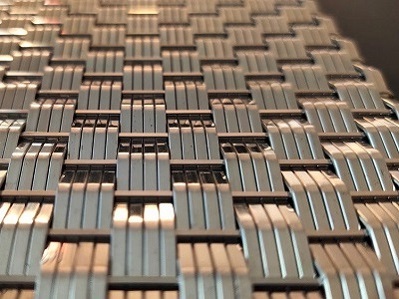

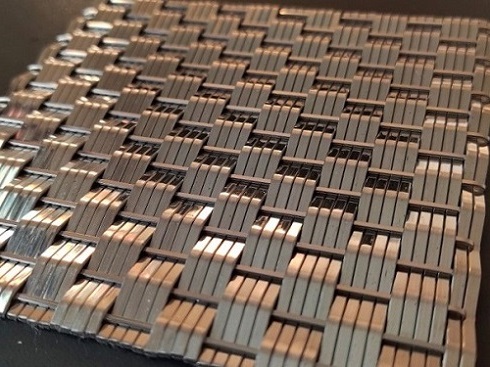

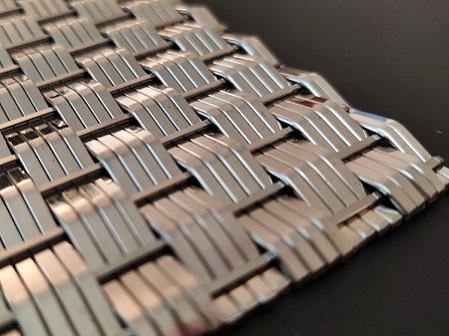

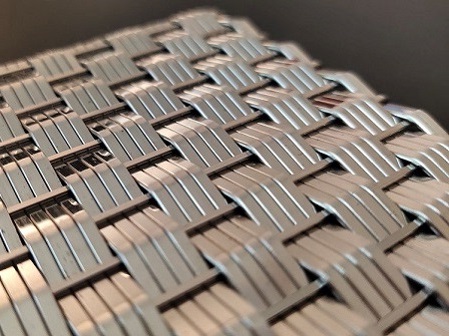

METART WW36 is a premium stainless steel cladding mesh designed for architects, builders, and property owners who value maximum privacy, durability, and aesthetic appeal. The mesh is made of high-quality stainless steel strips woven in a staggered pattern, with four vertical strips as a strand. The pattern has no openings, providing a 100% privacy rate.

The METART WW36 is available in two high-quality materials: SS304 and marine-grade SS316. SS304 is the standard option, offering superior strength and durability. For those customers looking for a more affordable option, the METART WW36 is also available in SS201.

The weft wire strip diameter is 1.5x0.7mm, while the warp wire strips consist of four 2x1mm wires. The overall thickness of the fabric is 1.9mm, ensuring its durability and longevity. With an aperture of 0mm and an opening area of 0%, the METART WW36 guarantees complete privacy and blocks out 100% of unwanted views.

Each square meter of this premium cladding mesh weighs an estimated 8.3kg, making it strong enough to withstand harsh weather conditions and extreme temperatures. The METART WW36 is available in a stainless steel mill finish, which gives it a bright, polished appearance, as well as in antique bronze plating, antique copper plating, antique brass plate, and vacuum titanium plating finishes.

For coastal cities and applications, the marine-grade SS316 option is a perfect choice. It offers superior corrosion resistance, making it ideal for properties near the ocean or other harsh environments.

Overall, the METART WW36 is the ultimate solution for privacy and architectural cladding. Its sleek design, high-quality materials, and outstanding privacy features make it the perfect choice for any commercial or residential property.
Specification Table.

Raw Material

SS201, SS304, SS316

Mesh Type

Rigid Architectural Cladding Mesh

Weft Wire Strip Diameter

1.5x0.7mm

Warp Wire Strips (4 wires)

2x1mm each wire

Aperture

0mm

Overall thickness of the fabric

1.9mm

Opening Area

0%

Block out

100%

Estimated Square Meter Weight

8.3kg/㎡

Finish

Stainless Steel Mill Finish

The way of cutting

Straight Cut

All optional ways of cut

Straight Cut

All optional Finishes

Mill Finish ( Original stainless steel bright finish),
Antique Bronze plating, Antique Copper plating, Antique brass plate, PVD titanium plated

Custom made specifications and Mini order accepted.

Note:

All the measurements including wire thickness, diameter, opening, and overall thickness are nominal numbers. The actual specification might have a tiny bit of tolerance according to fabrication
