METART-WW42-7528-Black Finish Stainless Steel Designer Cabinetry Wire Grilles

Specification

Raw Material: SS201, SS304, SS316.

Mesh Type: Rigid Architectural Wire Mesh

Opening Area: 73.9%

Estimated Square Meter Weight: Approx 2.5kg/㎡

Finish: Black Painted

Sheet Size: Custom made

GET A QUOTE

Introduction

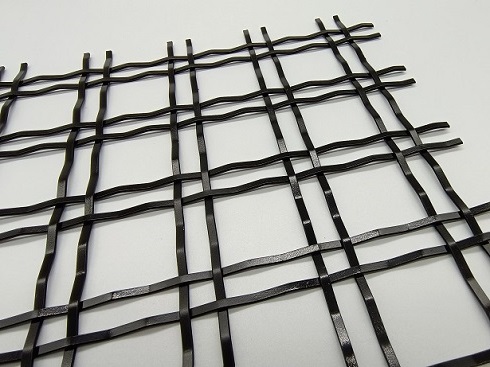

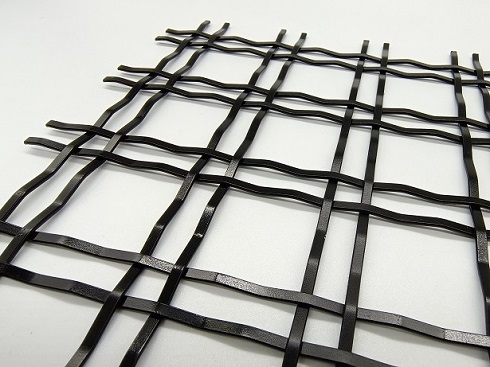

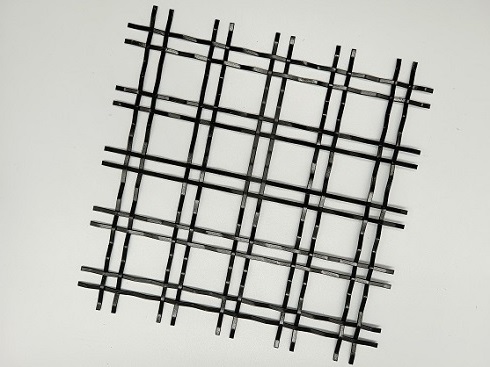

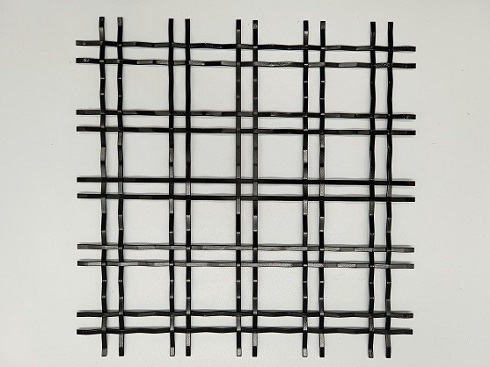

METART WW42-75298 is made of 2.9x1.2mm flat wires that are lightweight and perfect for laminated glass mesh applications.

With a refined black painted finish, it offers a simple but modern aesthetic that is sure to elevate any space.

Crafted from high-quality stainless materials such as SS304 and SS316 as well as the cheapest grade 201. This simple designer wire mesh pattern features flattened wire strips that measure 2.9x1.2mm, with big hole sizes of 28x28mm, and small hole sizes of 7.5x7.5mm. The total thickness of the fabric is 2.6mm, with an opening area of 73.9% and a privacy rate of 26.1%.

At an estimated square meter weight of 2.5kg/㎡, this wire mesh is not strong enough to be used for railing panels or facade mesh, but we can adjust the wire diameter and thickness to meet the requirements of your projects.

Furthermore, it can be painted or plated in customized colors to suit your specific needs.

Upgrade your laminated glass mesh and cabinetry grille door applications with our METART-WW42-75298 pattern today.

It offers a durable and reliable solution that is both stylish and functional.

Specification Table.

Raw Material

SS201, SS304, SS316

Mesh Type

Rigid Decorative Wire Mesh

Flattened Wire Strip (width x thickness)

2.9x1.2mm

Big Hole Size

28x28mm

Small Hole Size

7.5x7.5mm

Slot Hole Size

7.5x28mm

Overall thickness of the fabric

2.6mm

Opening rate

73.9%

Privacy Rate

26.1%

Estimated Square Meter Weight

2.5kg/㎡

Finish

Black Painted.

The way of cutting

Straight Cut

All optional ways of cut

Straight Cut, Diamond Cut.

All optional Finishes

Mill Finish ( Original stainless steel bright finish),
Antique Bronze plating, Antique Copper plating, Antique brass plate, vacuum titanium plated, Painted, PVDF Painted.

Custom made specifications and Mini order accepted.

Note:

All the measurements including wire thickness, diameter, opening, and overall thickness are nominal numbers. The actual specification might have a tiny bit of tolerance according to fabrication
