METART-WW16-Gold Painted Cabinetry Designer Mesh

Specification

Material: Stainless Steel Grade 201,304,316

Type: Rigid Decorative Wire Mesh

Opening Area: 42%

Estimated Square Meter Weight: Approx 8.2kg/㎡

Finish: Gold Color Painted

Screen Width: Custom made.

Screen Length: Custom made.

GET A QUOTE

Introduction

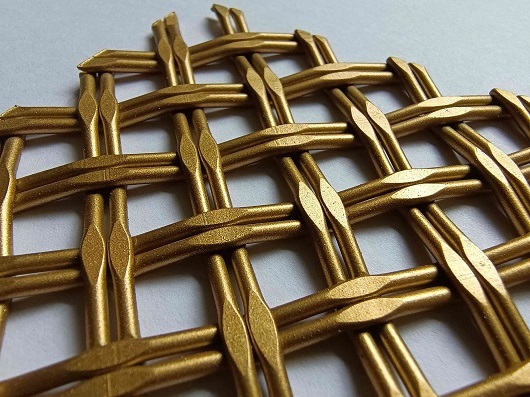

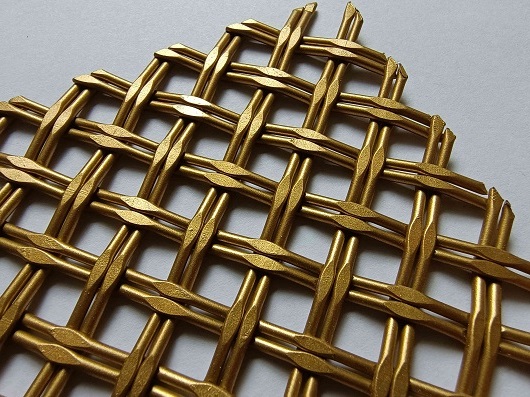

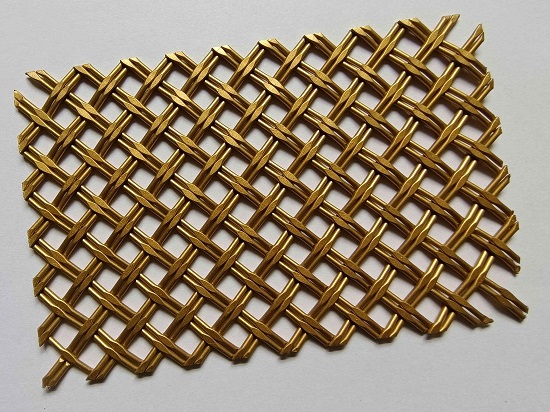

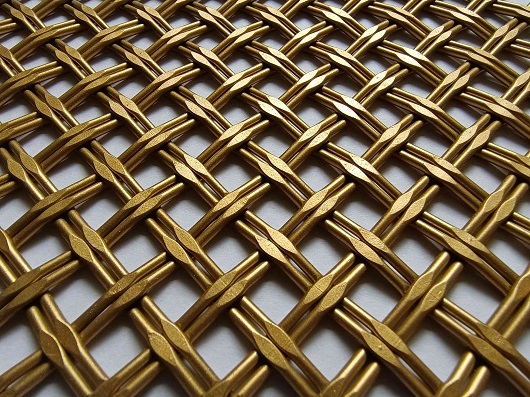

This is the METART-WW16 decorative mesh pattern painted in a gold finish.

The single wire's diameter was left unchanged from WW15 for this architectural stainless steel mesh, however, the hole diameter was drastically reduced.

This particular wire mesh pattern is stiffer than WW15 in this instance. This stainless steel creative stainless steel mesh is consequently becoming more and more common as an infill mesh panel for stainless steel railing systems, balcony decorative fencing infill mesh, commercial building balustrade wire mesh, building facade decorative mesh, wall cladding metal screen mesh, security door decorative grilles, wine shop decorative cabinets door mesh inserts, etc.

Specification Table.

Material

Stainless Steel  Grade 201,304 or 316.

Type

Rigid Decorative Wire Mesh

Wire Diameter (Single wire)

2mm

Clear Hole Size

7.2mm

Overall thickness of the fabric

2.8mm

Opening Area

42%

Block out

58%

Privacy Rate

58%

Estimated Square Meter Weight

8.2kg/㎡

Finish

Gold color painted.

The way of cutting

Diamont Cut

All optional ways of cut

Straight Cut, Diamond Cut

All optional Finishes

Mill Finish ( Original stainless steel bright finish),
Antique Bronze plating, Antique Copper plating, Antique brass plate, vacuum titanium plated, Painted, PVDF Coated,

Custom made specifications and Mini order accepted.

Note:

All the measurements including wire thickness, diameter, opening, and overall thickness are nominal numbers. The actual specification might have a tiny bit of tolerance according to fabrication
