METART-WW03-Antique Copper Plated Wall Cladding Metal Screen

Specification

Material: Stainless Steel, 201,304,316.

Type: Rigid Decorative Wire Mesh

Opening Area: 0%

Estimated Square Meter Weight: Approx 10.7kg/㎡

Finish: Antique Copper Plating

Screen Width: Custom made

Screen Length: Custom made

GET A QUOTE

Introduction

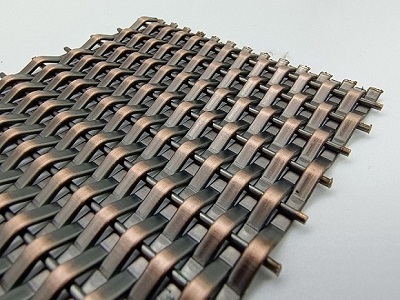

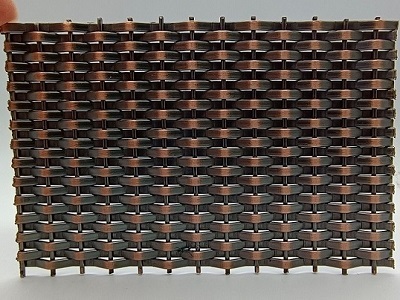

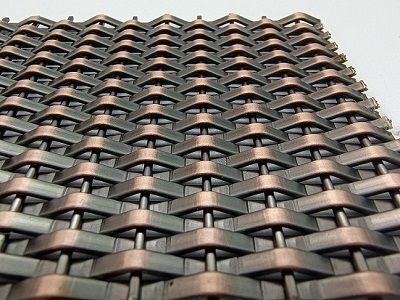

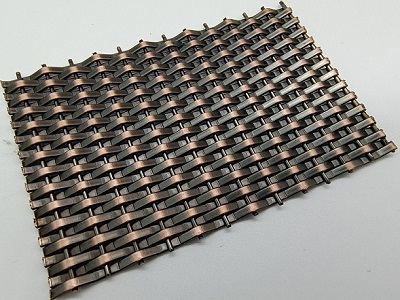

METART WW03 is a high-security grade metal fabric that is incredibly strong.

Typically constructed of 304-grade stainless steel with an antique copper-plated finish, this woven mesh is used in architectural applications.

With virtually no openings, the fabric is constructed from 1.5 mm stainless steel straight wire rods that run vertically and 3 mm wide by 1.2 mm thick stainless-steel strips that run horizontally.

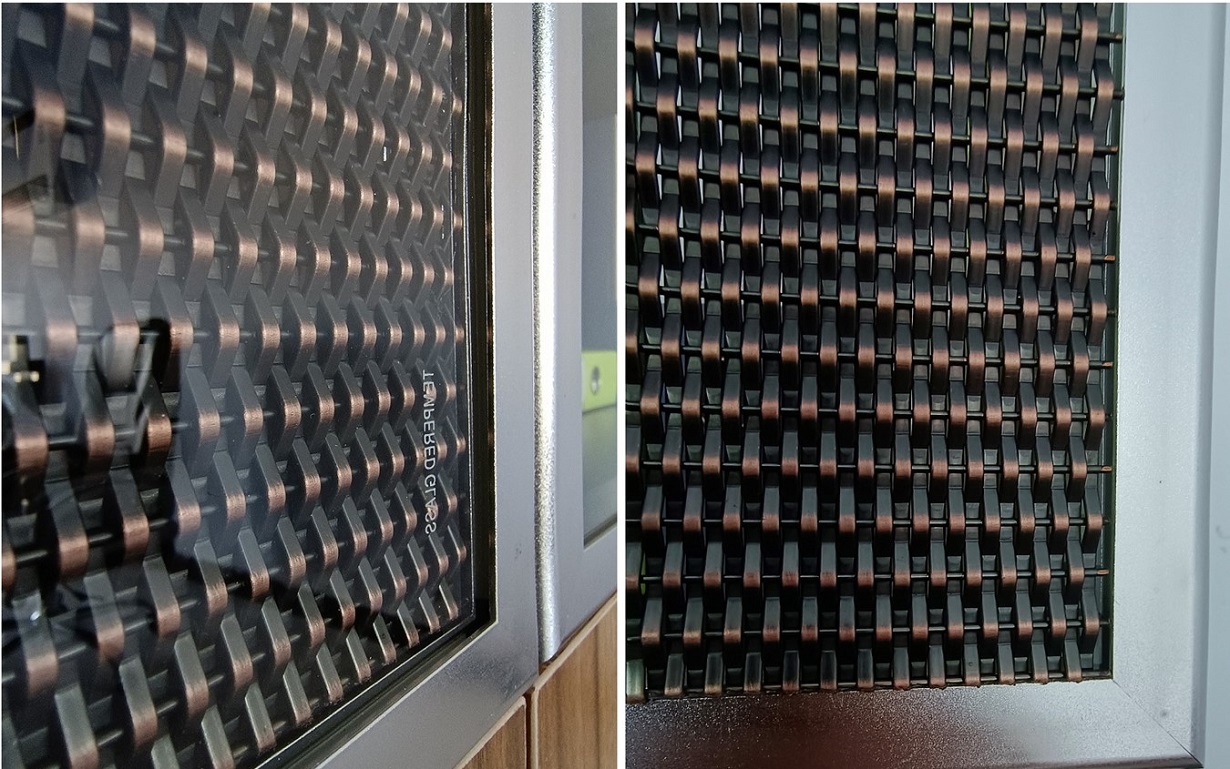

It is a very robust and sturdy design that is perfect for wall cladding and decorating elevator cabs.

We dubbed this woven wire design METART-WW03B because it had a distinct appearance on each side. From this side, you can see flat strips moving up and down, but on the other, it was a large flat surface.

Specification Table.

Material

Stainless Steel 304 or 316 optional

Type:

Rigid mesh

Flat SS strip ( Width x Thickness)

3x1.2mm

Rod Diameter

1.5mm

Rod Pitch

9.35mm

Overall Thickness of the fabric

3.6mm

Opening Area

0%

Block out

100%

Privacy Rate

100%

Weight:

10.7kg/Square Meter

Finish

Antique copper plating

All optional Finish

Mill Finish ( Original stainless steel bright finish),
Antique Bronze plating, Antique Copper plating, Antique brass plate, Vacuum Titanium Plated Golden, Titanium Plated Black, Titanium Plated Rose Gold, Painted, PVDF Coated, Powder Coated.

Customized specifications and Mini order accepted.

Note:
All the measurements including wire thickness, diameter, opening, and overall thickness are nominal numbers. The actual specification might have a tiny bit of tolerance according to fabrication.



Application
