hello@metartmesh.comMETART-WW23-22083-Wine Cabinet Ornamental Wire Grilles
Raw Material: Stainless steel 201, 304, 316.
Mesh Type: Rigid Decorative Wire Mesh
Opening Rate: 43%
Estimated Square Meter Weight: Approx 4.4kg/㎡
Finish: Antique copper plating
Sheet Width: Custom made
Sheet Length: Custom made

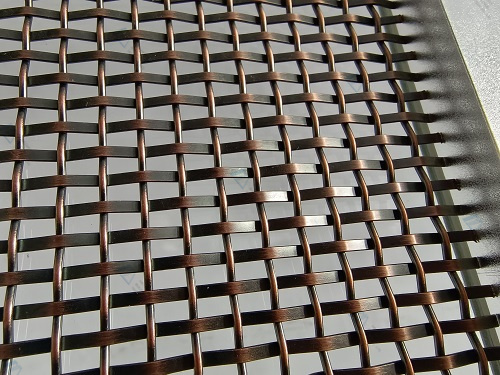

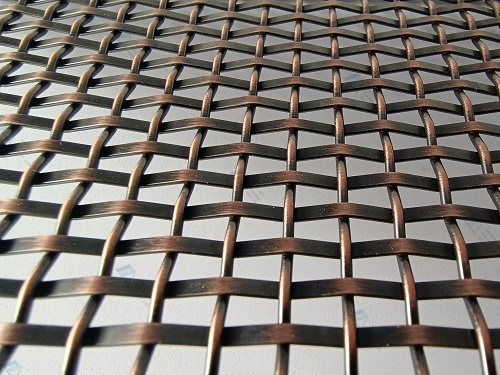

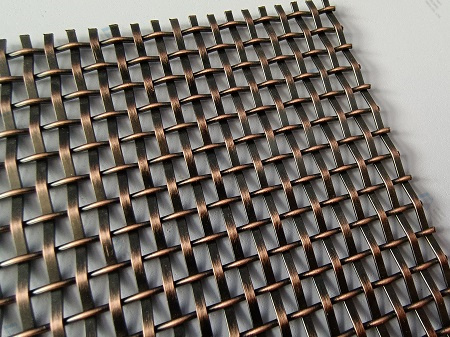

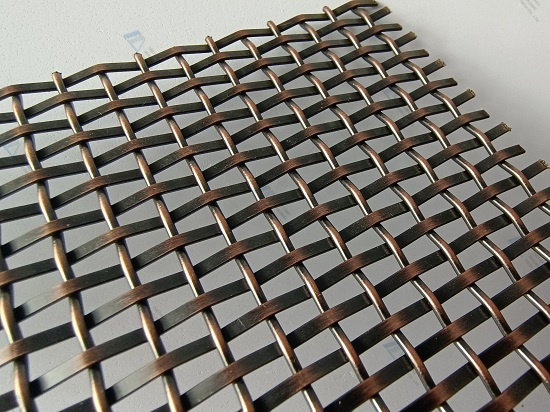

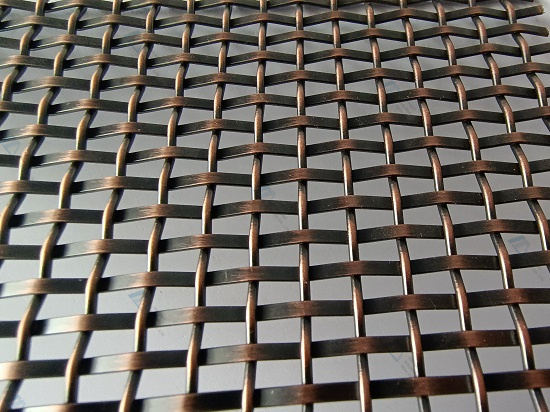

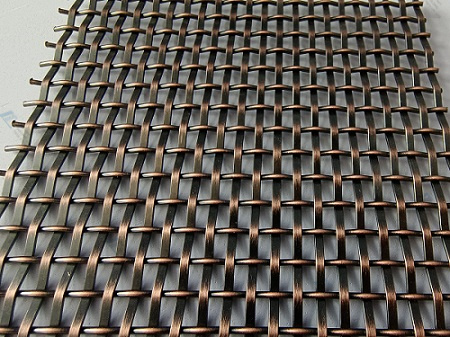

METART WW23-22083 is an ornamental metal grille created mainly for cabinet door architectural inserts and partition infills.
Basically, it is a simply designed and lightweight architectural woven wire made of two different shapes of stainless steel wires, including ss201, ss304, and marine grade 316.
Following the pattern number is the number 22083, which denotes the wire mesh is made of a 2.2x0.8mm flat wire strip and 3mm slot aperture size.
Compared with its variant pattern WW22, both of these wire mesh patterns are slot hole grille mesh, but mesh pattern WW23 has the opposite hole direction.
WW22 has a matte crimped texture strip finish, and WW23 has a smooth gloss surface.
This architectural stainless steel wire mesh pattern looks absolutely stunning after being antique copper-plated or brass plated.

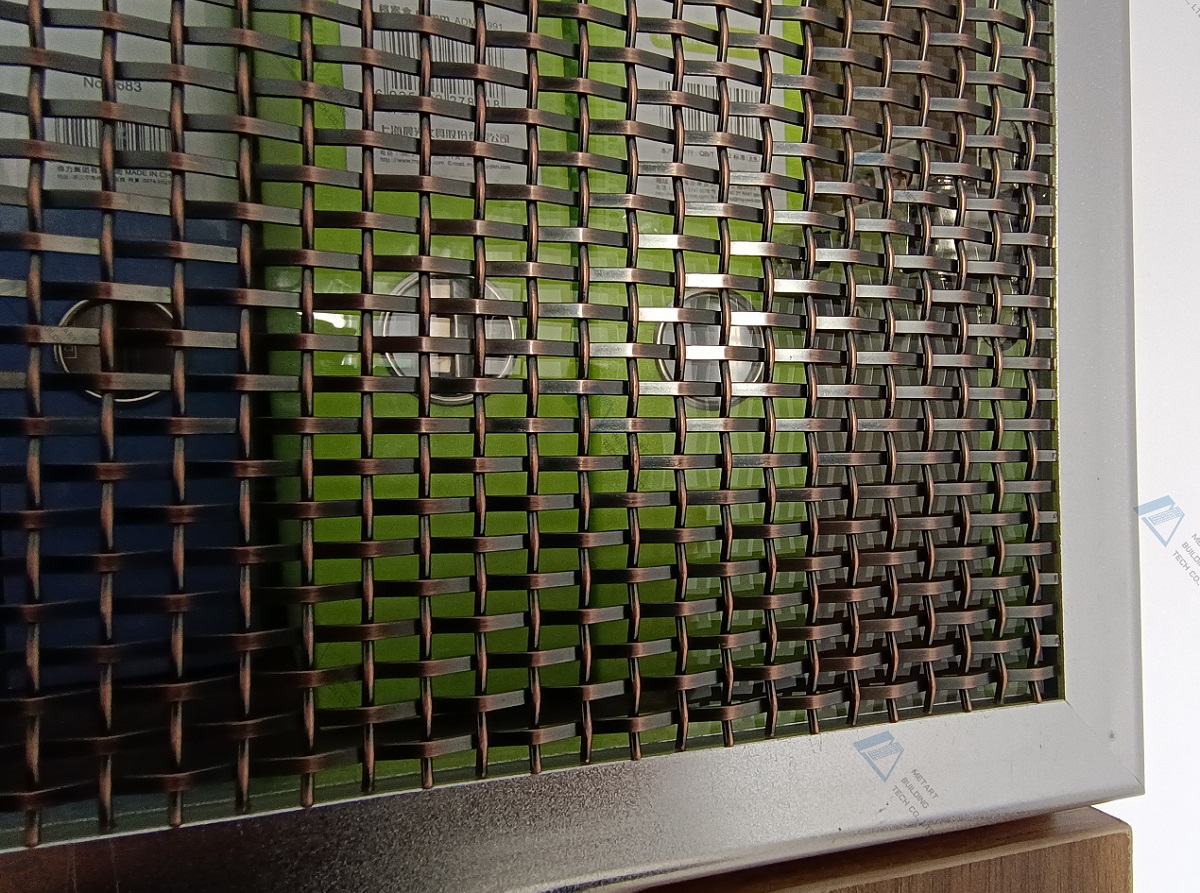

It is preferred to be used for cabinetry inserts wire grilles, wall cladding projects, antique furniture decorative mesh, space dividing ornamental screen mesh, etc.
Specification Table.
Raw Material |
Stainless Steel 201, 304, 316. |
Mesh Type |
Rigid Architectural Wire Mesh |
Wire Strip (Widthxthickness) |
2.2x0.8mm |
Wire Rod Diameter |
1.45mm |
Clear Hole Size |
3x5.6mm |
Strip Pitch |
5.2mm |
Rod Pitch |
7.1mm |
Overall thickness of the fabric |
2.45mm |
Opening Area |
43% |
Privacy Rate |
57% |
Estimated Square Meter Weight |
4.4kg/㎡ |
Finish |
Antique Copper Plate |
The way of cutting |
Straight Cut |
All optional ways of cut |
Straight Cut Only |
All optional Finishes |
Mill Finish ( Original stainless steel bright finish), |
Custom specifications and Mini order accepted. |
|
Note: All the measurements including wire thickness, diameter, opening, and overall thickness are nominal numbers. The actual specification might have a tiny bit of tolerance according to fabrication |
