hello@metartmesh.comAntique Copper Designer Wire Mesh for Furniture-METART-WW20
Raw Material: Stainless Steel 201, 304 , or 316
Mesh Type: Rigid Architectural Mesh
Opening Area:59%
Estimated Square Meter Weight: Approx 3.4kg/㎡
Finish: Antique Copper Plating
Sheet Width: Custom made
Sheet Length: Custom made

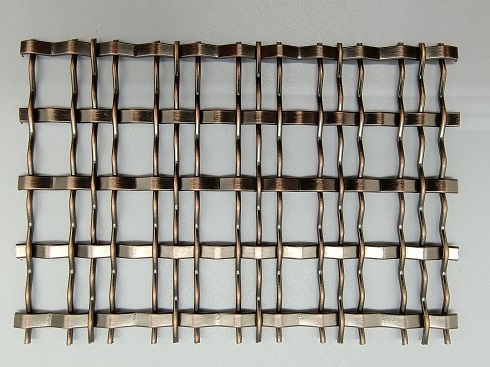

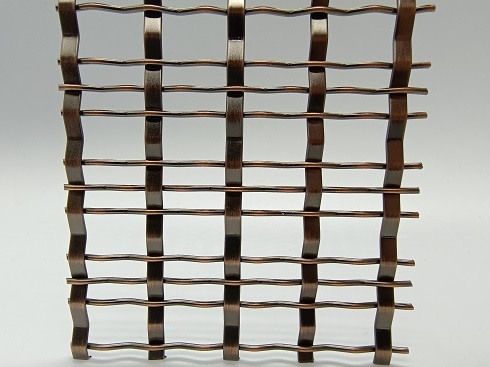

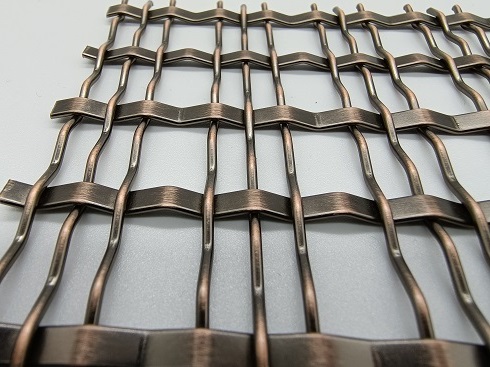

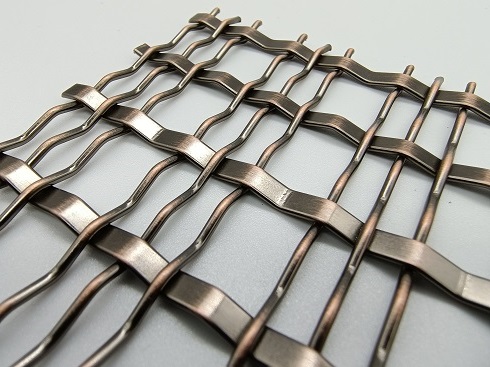

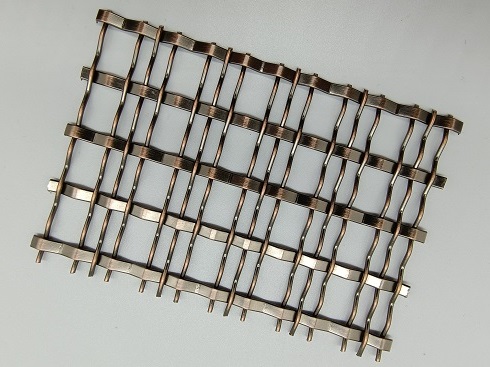

Wire mesh pattern METART WW20 has an aged copper-plated finish in this instance.
But take note that the strips and wire used to make this wire mesh are composed of stainless steel.
This pattern is uncomplicated and lightweight because it uses 1.45mm wires for the warp and 4x1mm wire strips for the weft.
Although this architectural woven wire mesh is stiff, it is not sturdy enough for application scenarios where security is essential.

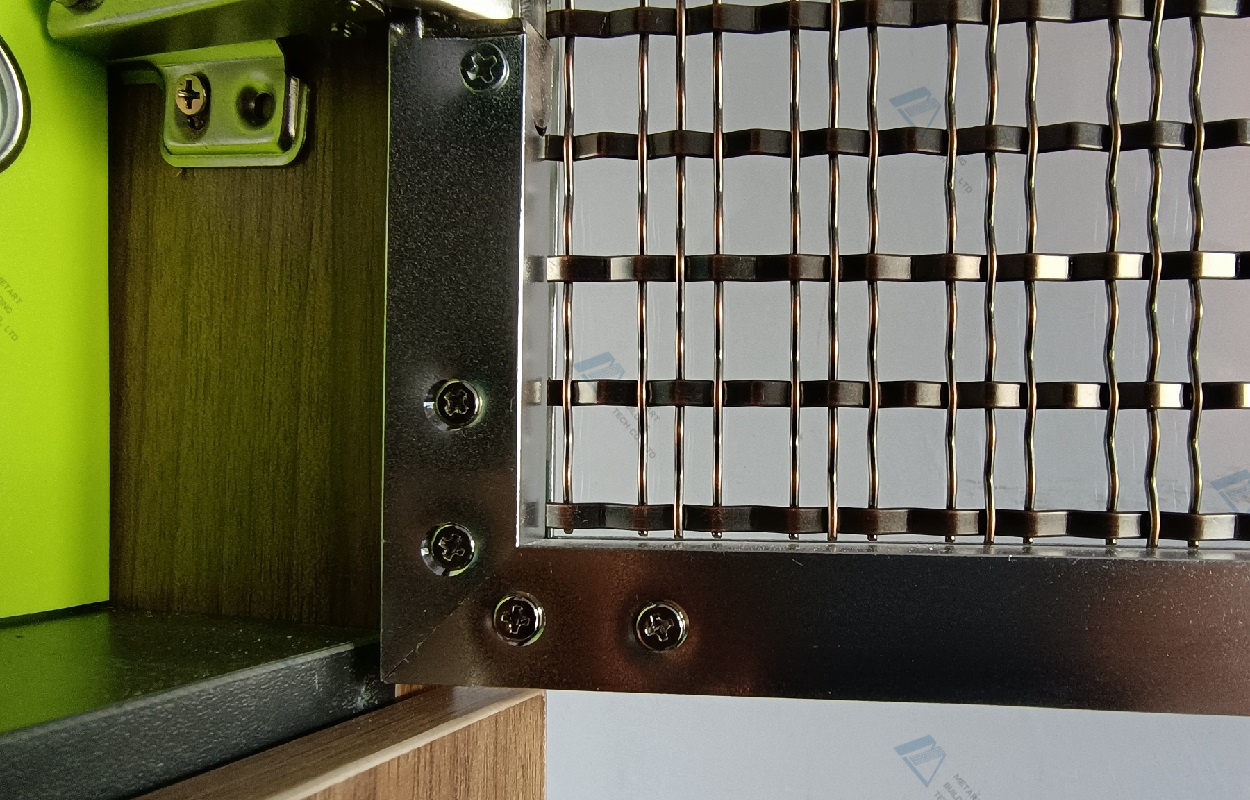

However, it is reasonably priced and appropriate for architectural partition screens, office dividing screens, living room metal screen divider infill panels, kitchen cabinet insert mesh, closet door metal grilles, cupboard door replacement wire mesh, wine bar cabinets mesh grille mesh, wine bar finishing wire mesh, wall cladding mesh panels, etc.
Specifications Table.
Raw Material |
Stainless Steel Grade 201, 304, 316 |
Mesh Type |
Rigid Architectural Wire Mesh |
Wire Strip(widthxthickness) |
4x1mm |
Pre-Crimped Wire Rod Diameter |
1.45mm |
Wire Strip Pitch |
18.5mm |
Wire Rod Pitch |
5.7mm |
Wire Rod Group Pitch |
23 |
Overall thickness of the fabric |
2.9mm |
Opening Area |
59% |
Privacy Rate |
41% |
Estimated Square Meter Weight |
3.4kg/㎡ |
Finish |
Antique Copper Finish |
The way of cutting |
Straight Cut |
All optional ways of cut |
Straight Cut Only |
All optional Finishes |
Mill Finish ( Original stainless steel bright finish), |
Custom made specifications and Mini order accepted. |
|
Note: All the measurements including wire thickness, diameter, opening, and overall thickness are nominal numbers. The actual specification might have a tiny bit of tolerance according to fabrication |
