METART-WW07-Ceiling Crimped Wire Mesh

Specification

Material: Stainless Steel Grade 201,304, 316

Type: Rigid Architectural Mesh

Opening Area: 62%

Estimated Square Meter Weight: Approx 3.4kg/㎡

Finish: Mill Finish

Screen Width: Custom made

Screen Length: Custom made.

GET A QUOTE

Introduction

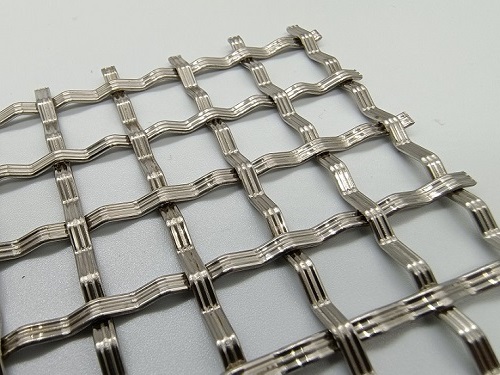

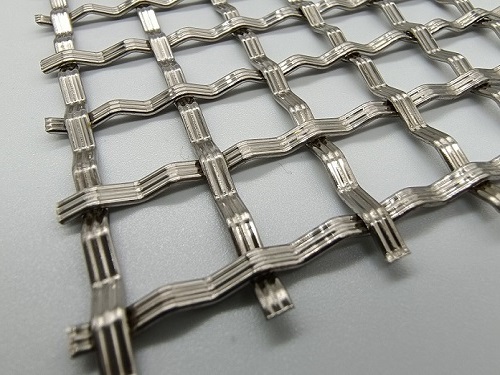

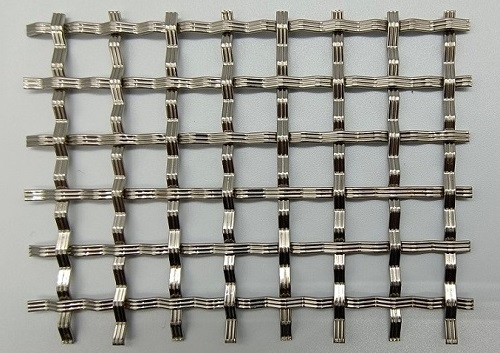

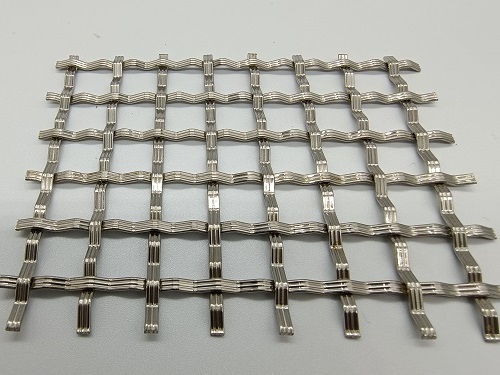

Made of pre-crimped stainless steel wire mesh, METART-WW07 is also a simple architectural woven wire mesh.

The design of the hole size is bigger and the crimped pattern will provide extra strength to make the screen more rigid.

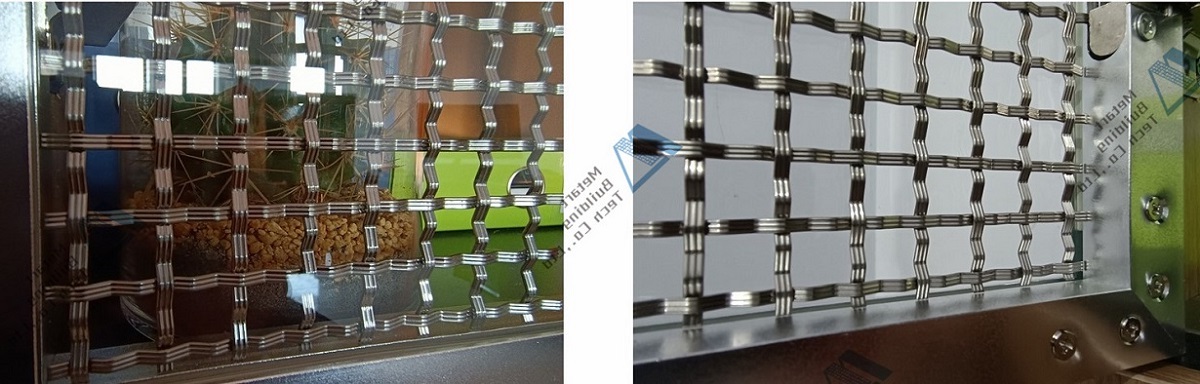

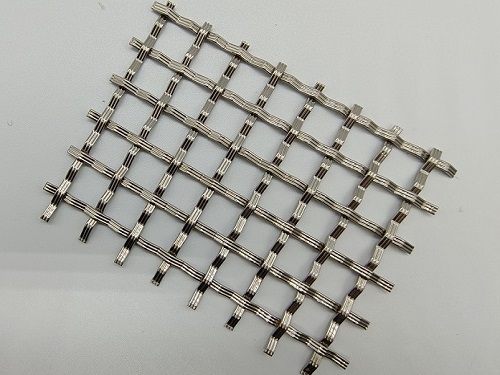

This pattern is suitable for either ceiling tile wire mesh panels or cabinet door inserts.

Specification Table

Material

Stainless Steel Grade 201,304 or 316.

Type

Rigid Architectural Wire Mesh

Flat Wire Strip(widthxthickness):

2.9x1.0mm

Clear Hole Size

10.7mm

Overall thickness of the fabric

2.5mm

Opening Area

62%

Privacy Rate

38%

Estimated Square Meter Weight

3.4kg/㎡

Finish

Stainless Steel Mill Finish

The way of cutting

Straight Cut

All optional ways of cut

Straight Cut, Diamond Cut

All optional Finishes

Mill Finish ( Original stainless steel bright finish),
Antique Bronze plating, Antique Copper plating, Antique brass plate,
Vacuum titanium plated, Painted, PVDF Coated,

Custom made specifications and Mini order accepted.

Note:

All the measurements including wire thickness, diameter, opening, and overall thickness are nominal numbers. The actual specification might have a tiny bit of tolerance according to fabrication

Application
