METART-WW34MSSRBZ-Partition Wall Infill Decorative Wire Mesh

Specification

Raw Material: SS304 or SS316 + True Bronze Wire

Mesh Type: Rigid Architectural Wire Mesh

Opening rate: 10%

Estimated Square Meter Weight: Approx 16.6 kg/㎡

Finish: Mill Finish

Sheet Size: Custom made.

GET A QUOTE

Introduction

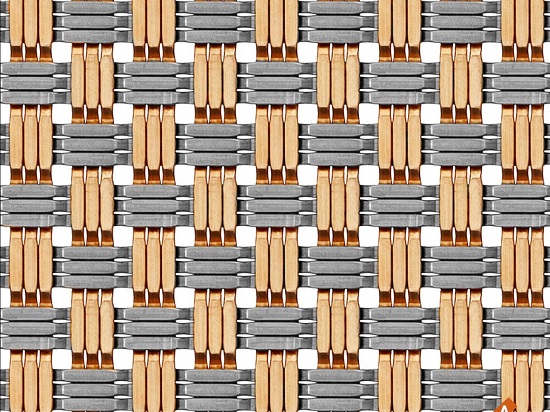

METART-WW34MSSRBZ is the medium-sized version of the woven wire pattern series WW34.

Made of a hybrid of stainless steel wires and real bronze wires in different directions, this decorative wire mesh is just another color variant similar to its brass hybrid woven pattern WW34MSSRB.

This décor mesh is always used as decorative wall cladding mesh, fancy restaurant space partition metal screen infill mesh, decorative balustrade infill mesh, balcony creative railing mesh, etc.

Specification Table

Raw Material

SS 304 or SS316 + True Bronze Wires

Mesh Type

Rigid Architectural Wire Mesh

Single Wire Strip

2.7x1.4mm

Strip Group Width (3 wires)

9.1mm

Clear Hole Size

4x4mm

The total thickness of the fabric

2.8mm

Opening rate

10%

Privacy Rate

90%

Estimated Square Meter Weight

16.6kg/㎡

Finish

Mill Finish(Original Stainless Steel and bronze color)

The way of cutting

Straight Cut

All optional ways of cut

Straight Cut

All optional Finishes

Mill Finish ( Original stainless steel bright finish),
Antique Bronze plating, Antique Copper plating, Antique brass plate, vacuum titanium plated

Custom made specifications and Mini order accepted.

Note:

All the measurements including wire thickness, diameter, opening, and overall thickness are nominal numbers. The actual specification might have a tiny bit of tolerance according to fabrication
