METART-WW02-Antique Copper Finish Privacy Screen Mesh

Specification

Material: Stainless Steel Wire Strips Grade 201,304 or 316 optional

Type: Rigid Decorative Wire Mesh

Opening Area: 6%

Square Meter Weight: Approx 11.6kg/㎡

Finish: Antique Copper Plated

Screen Width: Custom made

Screen Length: Custom made

GET A QUOTE

Introduction

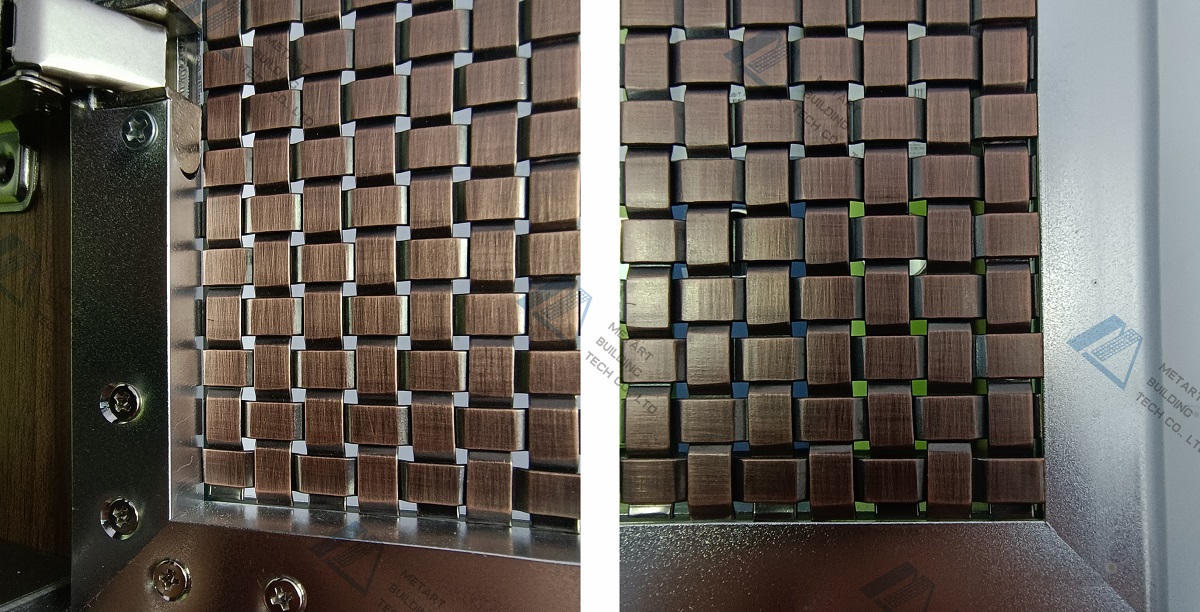

METART-WW02 is a beautiful architectural woven metal cloth that offers a high level of protection.

An example of an antique copper-plated variant made of the stainless steel grade 304 is presented here; it is one of the most widely used stainless steel types.

304 grade is a medium-grade stainless steel material that is suitable for usage in architectural applications.

However, if you are looking for a stainless steel material of a higher grade, marine grade 316 grade can be created according to the customer's needs which is more suitable for outdoor applications.

And cheaper options stainless steel 201 grade can also be customized upon request.

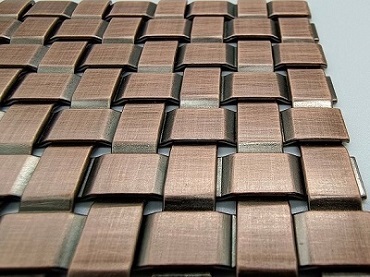

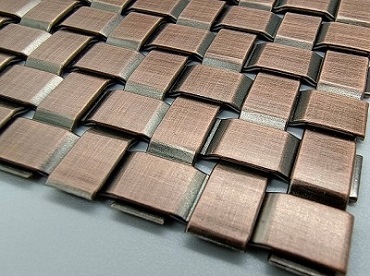

This inventive woven wire fabric is created by weaving together flat stainless steel strips 7 millimeters wide and commonly 1 millimeter thick.

Before the start of weaving, the flat strips need to be pre-crimped using a set of toolings made of a specifically developed and hardened alloy.

The warp wires and the weft wires both need to have the appropriate crimps applied to them. After that, the wire strips will be properly set up on a loom so that weavers may begin the weaving process.

The opening rate that is provided by this mesh design is extremely low, coming in at only approximately 6 percent.

This architectural wire fabric provides a high level of both privacy and protection thanks to its densely woven pattern and high wire density.

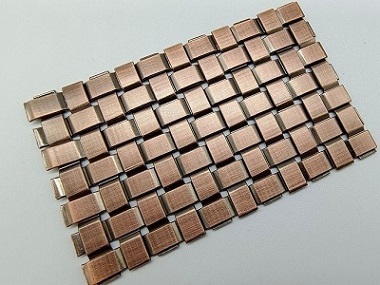

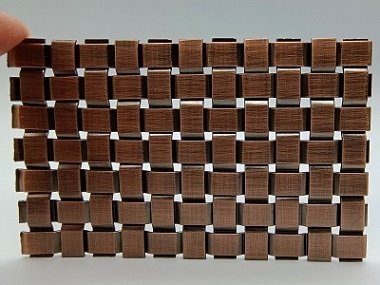

This mesh's initial appearance is improved upon by being copper-plated or brass-plated and then given an antique-style finish, all of which make it look even more gorgeous than it did before.

This pattern is ideal for various cabinet door infill mesh grille applications, particularly those that call for high levels of both protection and privacy in addition to a spectacular appearance.

Specification Table.

Material

Stainless Steel 304 or 316 optional

Type

Rigid mesh

Flat strip ( Width x Thickness)

7x1mm

Clear Hole Size

2.3x2.3mm

Total Thickness of the fabric

1.94mm

Opening Area

6%

Block out

94%

Privacy Rate

94%

Weight:

11.6kg/Square Meter

Finish

Antique copper plating

All optional Finish

Mill Finish ( Original stainless steel bright finish),
Antique Bronze plating, Antique Copper plating, Antique brass plate, Vacuum titanium plated, Painted, PVDF Coated,

Customized specifications and Mini order accepted.

Note:
All the measurements including wire thickness, diameter, opening, and overall thickness are nominal numbers. The actual specification might have a tiny bit of tolerance according to fabrication.
