METART-WW09-Antique Copper Cabinetry Door Inserts

Specification

Material: SS201,304 or 316.

Type: Rigid Decorative Wire Mesh

Opening Area: 74%

Estimated Square Meter Weight: Approx 3.2kg/㎡

Finish: Antique Copper Plated

Screen Width: Custom made

Screen Length: Custom made

GET A QUOTE

Introduction

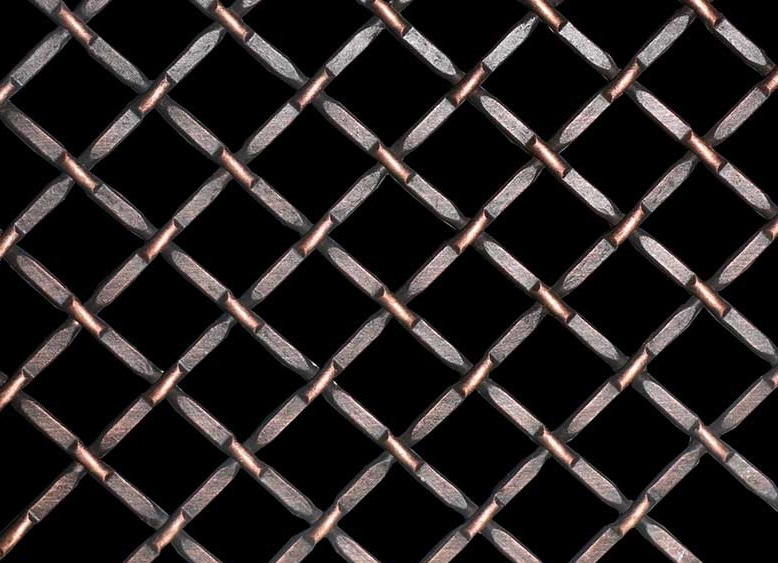

METART WW09 is a simple architectural woven wire design made of crimped and partially flattened wires.

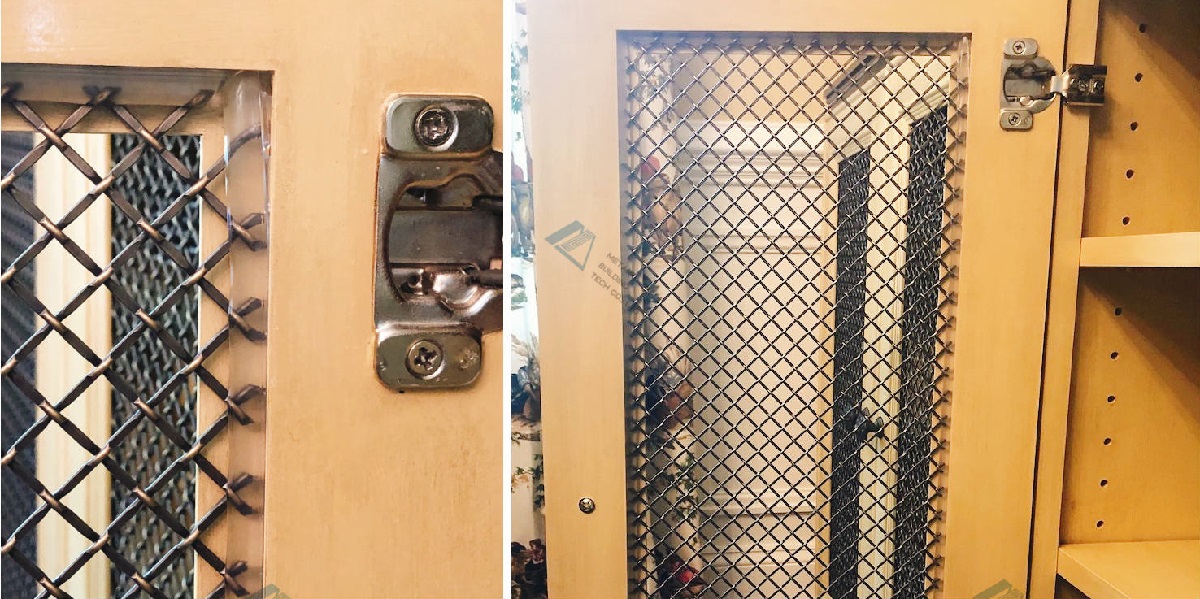

This mesh has a weight of around 3.2 kilograms per square meter, making it a lightweight mesh that is suited for use as infill screen mesh for cabinets as well as ceiling wire mesh.

The Diamond Cut method is invariably more costly than straight-cut mesh since it results in more material waste during cut-out.

Specification Table.

Material

Stainless Steel Grade 201,304 or 316.

Type

Rigid Decorative Wire Mesh

Wire Diameter Before Flattened

1.8mm

Clear Hole Size

10.4mm  (15.4mm Optional)

Overall thickness of the fabric

2.6mm

Opening Area

74%

Privacy Rate

26%

Estimated Square Meter Weight

3.2kg/㎡

Finish

Antique Copper Plated

The way of cutting

Diamond Cut

All optional ways of cut

Straight Cut, Diamond Cut

All optional Finish

Mill Finish ( Original stainless steel bright finish),
Antique Bronze plating, Antique Copper plating, Antique brass plate,
Vacuum titanium plated, Painted, PVDF Coated,

Custom made specifications and Mini order accepted.

Note:

All the measurements including wire thickness, diameter, opening, and overall thickness are nominal numbers. The actual specification might have a tiny bit of tolerance according to fabrication

Application
