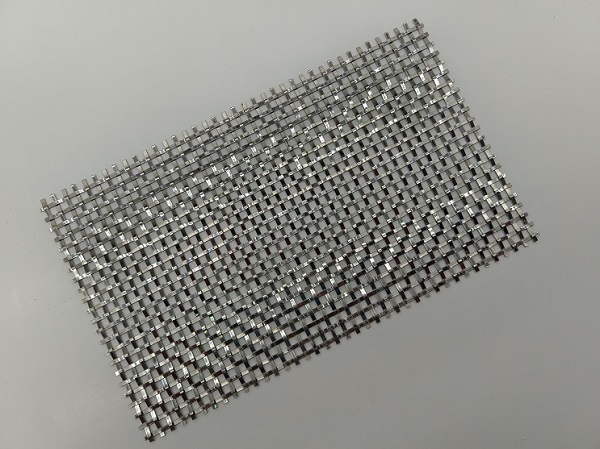

METART-WW05-22084-Office Cabinet Wire Grilles

Specification

Material: Stainless Steel Wire Strips Grade 201,304 or 316.

Type: Rigid Decorative Wire Mesh

Opening Area: 37%

Estimated Square Meter Weight: Approx 4kg/㎡

Finish: Mill Finish

Screen Width: Custom made

Screen Length: Custom made

GET A QUOTE

Introduction

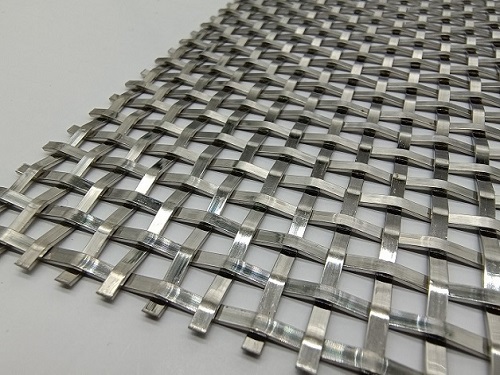

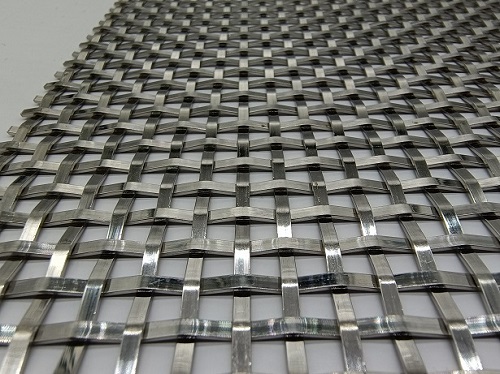

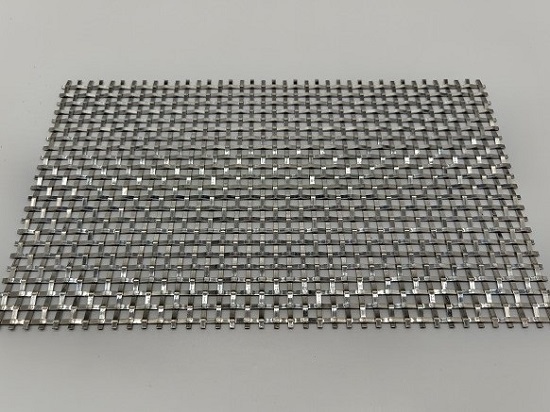

One alternative for architectural flat woven wire mesh that is economical is the METART-WW05-22084 product.

Wire mesh with a 2.2mm wire diameter, 0.8mm wire thickness, and a 4x4mm aperture size is denoted by the product #22084.

Because it is manufactured of stainless steel, it does not require any finish in order to be put to use and is thus referred to as a mill-finished mesh.

However, it is recommended that the material be utilized for cabinet door infill mesh or vent covers after first being copper plated, PVD coated, or at the very least, typically painted.

You will have access to a different color of vibrant possibilities for your projects.

Specification Table.

Material

Stainless Steel Grade 201,304 or 316.

Type

Rigid Decorative Wire Mesh

Flat Wire Strip:

2.2x0.8mm

Clear Hole Size

4mm

The total thickness of the fabric

1.6mm

Opening Area

37%

Block out

37%

Privacy Rate

63%

Square Meter Weight

4kg/㎡

Finish

Mill Finish ( Original stainless steel bright finish)

The way of cutting

Straight Cut

All optional ways of cut

Straight Cut, Diamond Cut

All optional Finish

Mill Finish ( Original stainless steel bright finish),
Antique Bronze plating, Antique Copper plating, Antique brass plate, Vacuum titanium plated,Painted, PVDF Coated,

Custom made specifications and Mini order accepted.

Note:

All the measurements including wire thickness, diameter, opening, and overall thickness are nominal numbers. The actual specification might have a tiny bit of tolerance according to fabrication

Please refer to the following table for all the specifications of METART WW05

Item #

Flat Strip

Clear Hole Dia.
mm

Opening Area

Privacy Rate

Square Meter Weight

Overall Thickness

METART 05-61585

6x1.5mm

8.5x8.5mm

34%

66%

9.5KG

3.4mm

METART 05-41022

4x1mm

2.2x2.2mm

11%

89%

9.2KG

3.2mm

METART 05-31507

3x1.5mm

7x7mm

49%

51%

7.0 KG

3.0mm

METART 05-31005

3x1.0mm

5x5mm

39%

61%

5.8 KG

2.0mm

METART 05-31204

3x1.2mm

4x4mm

33%

67%

7.6KG

2.5mm

METART 05-31205

3x1.2mm

5x5mm

39%

61%

7.0 KG

2.4mm

METART 05-31207

3x1.2mm

7x7mm

49%

51%

5.6 KG

2.4mm

METART 05-31210

3x1.2mm

10x10mm

59%

41%

4.3 KG

2.4mm

METART 05-31510

3x1.5mm

10x10mm

59%

41%

5.4 KG

3.0mm

METART 05-25103

2.5x1.0mm

3x3mm

29.7%

70.3%

7.1 KG

2.0mm

METART 05-22134

2.2x1.0mm

3.4x3.4mm

36.8%

63.2%

6.1 KG

2.0mm

METART 05-22834

2.2x0.8mm

3.4x3.4mm

36.8%

63.2%

4.9 KG

1.6mm

METART 05-22084

2.2x0.8mm

4x4mm

37%

63%

4.0KG

1.6mm

METART 05-18186

1.8x1.8mm

6.2x6.2mm

60%

40%

6.4KG

3.6mm

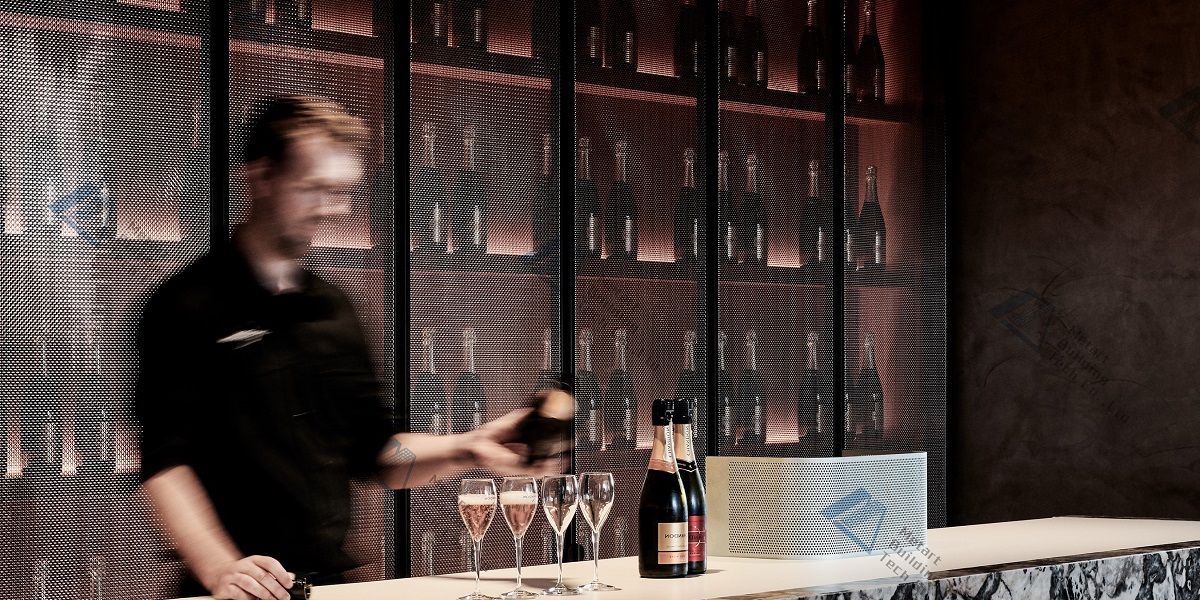

Application
