METART-WW26B-Antique Brass Plated Space Divider Infill Wire Mesh
Raw Material: Stainless Steel 201,304, and 316
Mesh Type: Rigid Architectural Wire Mesh
Opening Rate: 46%
Estimated Square Meter Weight: Approx 6kg/㎡
Finish: Antique Brass Plating
Sheet Size: Custom made.

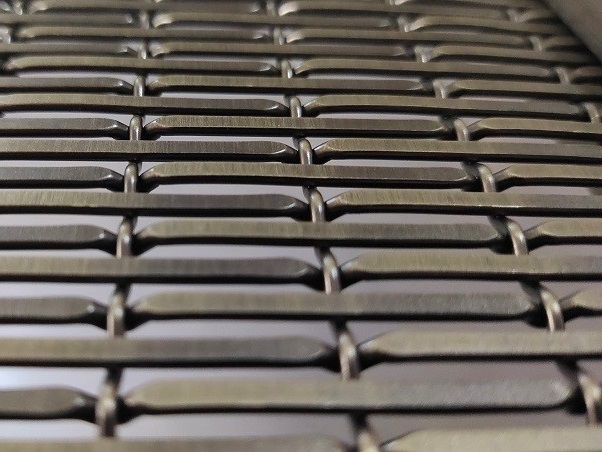

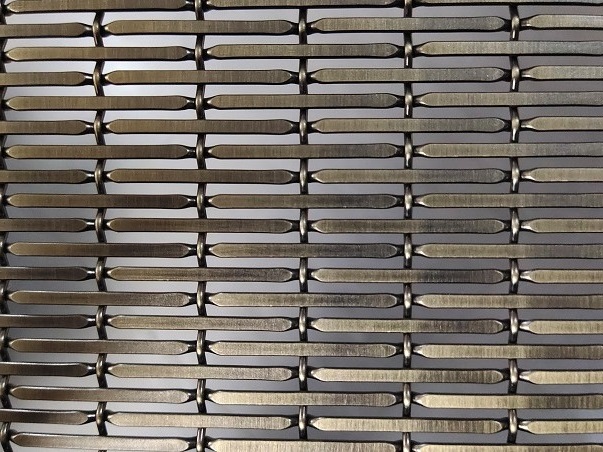

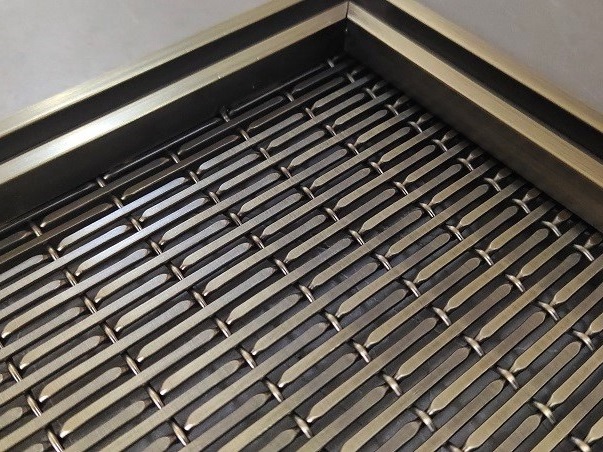

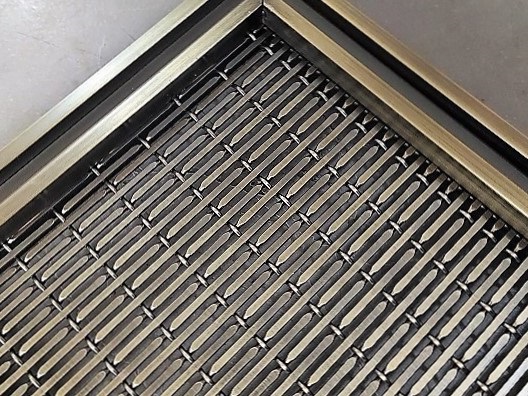

This sample is showing the opposite side of our architectural wire mesh pattern METART-WW26.
It is originally made of stainless steel and then brass plated. After that, the wire mesh will be antiquely processed to have this aged style.
Specifications Table.
|
Raw Material |
Stainless Steel 201, 304, 316. |
|
Mesh Type |
Rigid Architectural Wire Mesh |
|
Wire Strip |
2.2x1.2mm |
|
Wire Rod Diameter |
1.5mm |
|
Clear Hole Size |
2x16mm |
|
Strip Pitch |
4mm |
|
Rod Pitch |
17.5mm |
|
Overall thickness of the fabric |
3.1mm |
|
Opening Area |
46% |
|
Privacy Rate |
54% |
|
Estimated Square Meter Weight |
6kg/㎡ |
|
Finish |
Antique Copper Plated |
|
The way of cutting |
Straight Cut |
|
All optional ways of cut |
Straight Cut Only |
|
All optional Finishes |
Mill Finish ( Original stainless steel bright finish), |
|
Custom specifications and Mini order accepted. |
|
|
Note: All the measurements including wire thickness, diameter, opening, and overall thickness are nominal numbers. The actual specification might have a tiny bit of tolerance according to fabrication |
|
