METART-WW28SSRB-Architectural Cabinet Decorative Wire Mesh

Specification

Raw Material: Stainless Steel 304 or SS316 wires + True Brass Wires

Mesh Type: Rigid Architectural Wire Mesh

Opening Area: 47%

Estimated Square Meter Weight: Approx 6.8kg/㎡

Finish: Mill Finish

Sheet Size: Custom made

GET A QUOTE

Introduction

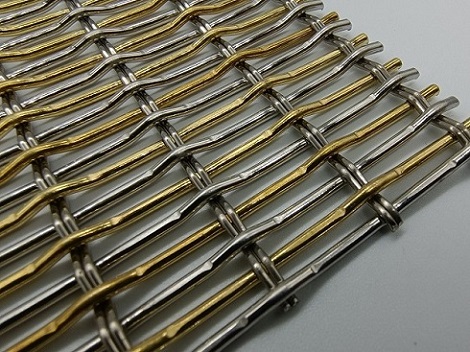

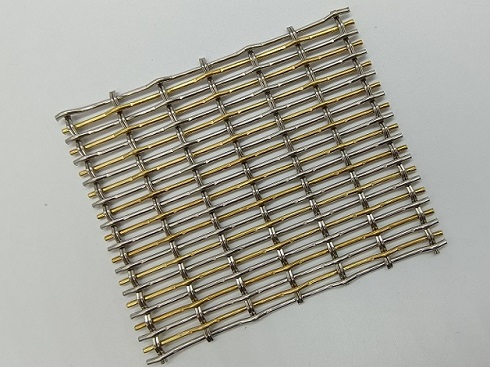

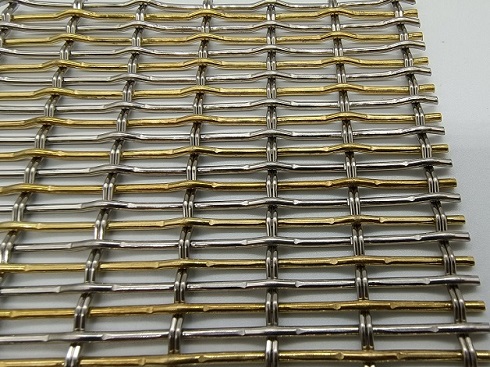

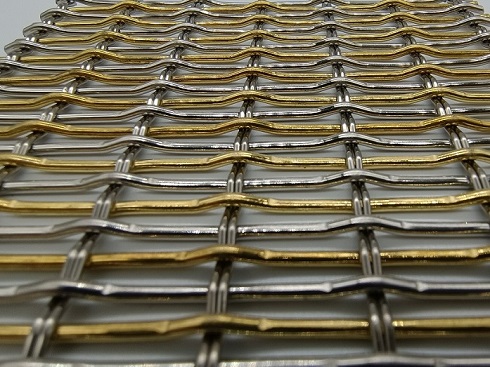

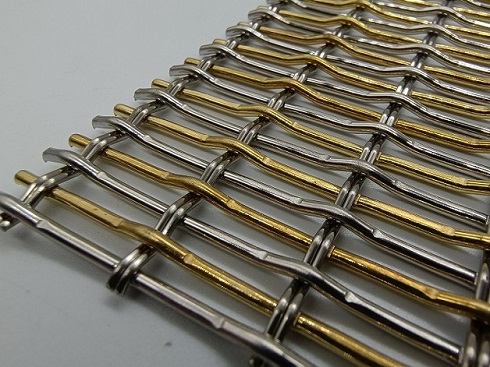

METART WW28SSRB is a hybrid woven ornamental wire mesh that is made of stainless steel wires and brass wires.

Using 2 pieces of 1.15 mm stainless steel wires vertically and mixing 1.95 mm true brass wire and stainless steel wires horizontally, this ornamental hybrid woven wire mesh is favored by many designers and architects for interior decorations.

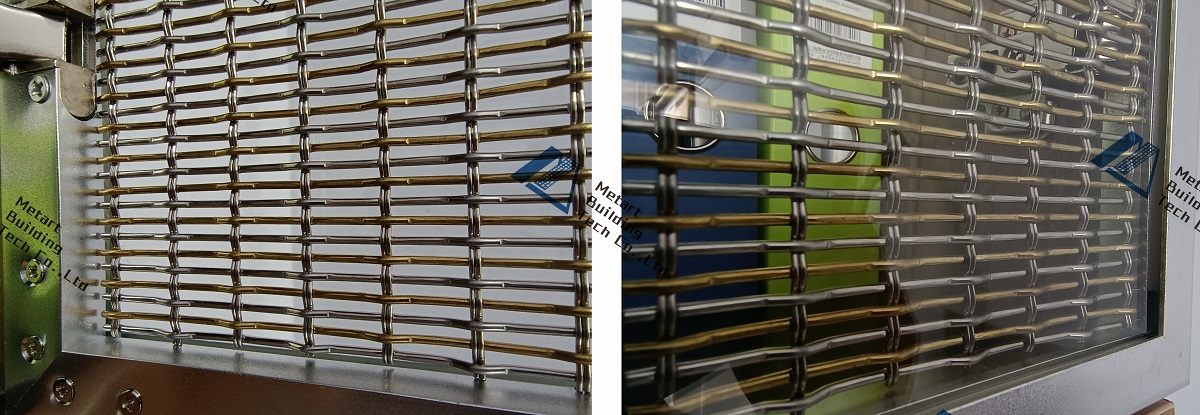

This decorative woven wire is popular in regular kitchen cabinet door making, wine bar furnishing, and partition screening, and many other indoor decorations applications.
Specification Table.

Raw Material

SS304 or SS316 wires + True Brass Wire

Mesh Type

Rigid Architectural Wire Mesh

Double Warp Wire Diameter

1.15mm x 2 pieces

Weft Wire Diameter

1.95mm

Clear Hole Size

2.3x15.3mm

Wire Pitch

4.2 x 18mm

Overall thickness of the fabric

3.6mm

Opening rate

47%

Privacy Rate

53%

Estimated Square Meter Weight

6.8kg/㎡

Finish

Mill Finish

The way of cutting

Straight Cut

All optional ways of cut

Straight Cut Only

All optional Finish

Mill Finish,

Custom made specifications and Mini order accepted.

Note:

All the measurements including wire thickness, diameter, opening, and overall thickness are nominal numbers. The actual specification might have a tiny bit of tolerance according to fabrication
