METART-WW28-Architectural Partition Screen Infill Mesh

Specification

Raw Material: Stainless Steel 201, 304,316.

Mesh Type: Rigid Architectural Wire Mesh

Opening Rate: 59%

Estimated Square Meter Weight: Approx 4.8kg/㎡

Finish: Mill Finish

Sheet Size: custom made.

GET A QUOTE

Introduction

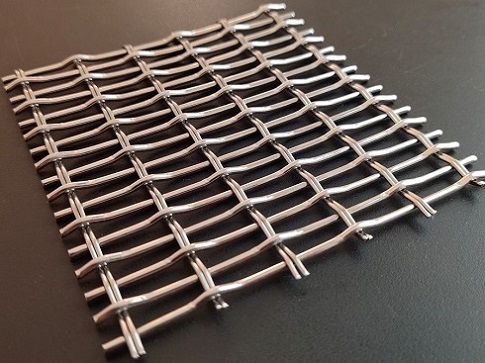

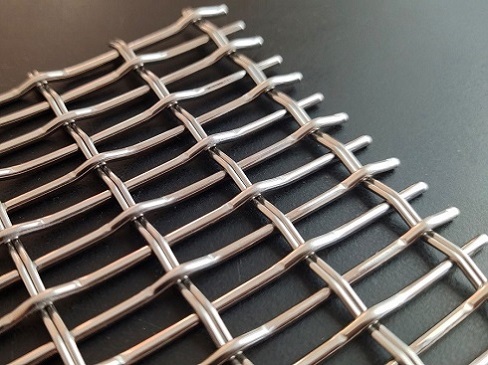

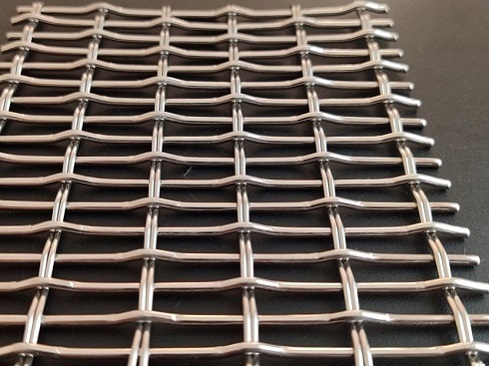

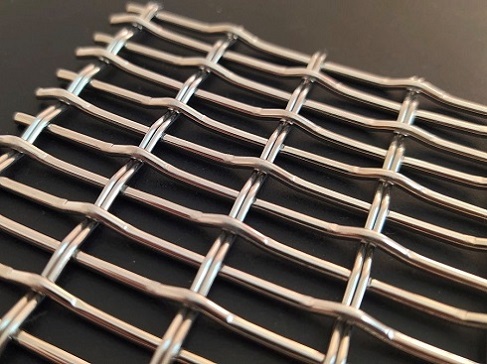

METART WW28 is a double warp slot hole architectural wire mesh. The pattern is stronger than WW27 because it uses two 1.15 mm stainless steel wires for the warp and two 2 mm wires for the weft.​​​​​​

It has similar properties and features as METART-WW27 and can be also used as decorative metal screen infill wire mesh, cabinetry infill woven wires, fencing infill wire mesh, etc.
Specification Table.

Raw Material

SS201, 304, 316, Brass, Copper, Aluminum Alloy optional

Type

Rigid mesh

Double Warp Wire Diameter

1.15mm x 2 pieces

Single Weft Wire Diameter

1.95mm

Clear Hole Size

4.2x15.3mm

Wire Pitch

6.2 x 18mm

The total thickness of the fabric

3.2mm

Opening Rate

59%

Privacy Rate

41%

Weight

4.8kg/Square Meter

Finish

Stainless Steel Mill Finish

The way of cutting

Straight Cut

All optional ways of cut

Straight Cut Only

All optional Finishes

Mill Finish ( Original stainless steel bright finish),
Antique Bronze plating, Antique Copper plating, Antique brass plate, vacuum titanium plated, Painted, PVDF Coated,

Custom made specifications and Mini order accepted.

Note:

All the measurements including wire thickness, diameter, opening, and overall thickness are nominal numbers. The actual specification might have a tiny bit of tolerance according to fabrication
