hello@metartmesh.comMETART-WW28SSRB-B-Cabinet Door Ornamental Metal Wire Inserts
Raw Material: Stainless Steel 304 or SS316 wires + True Brass Wires
Mesh Type: Rigid Decorative Woven Wire Mesh
Opening rate: 47%
Estimated Square Meter Weight: Approx 6.8kg/㎡
Finish: Mill Finish
Sheet Size: Custom made.

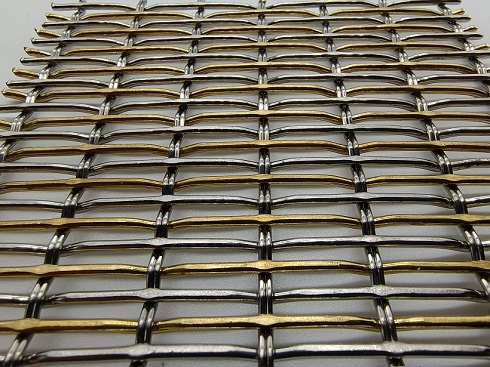

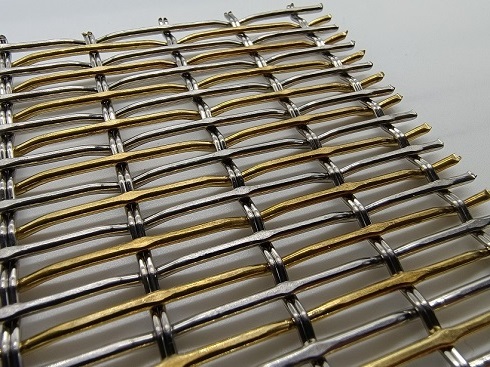

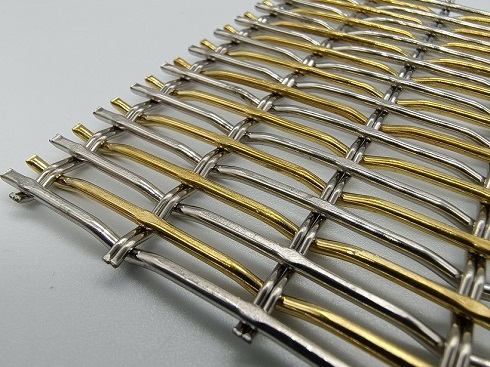

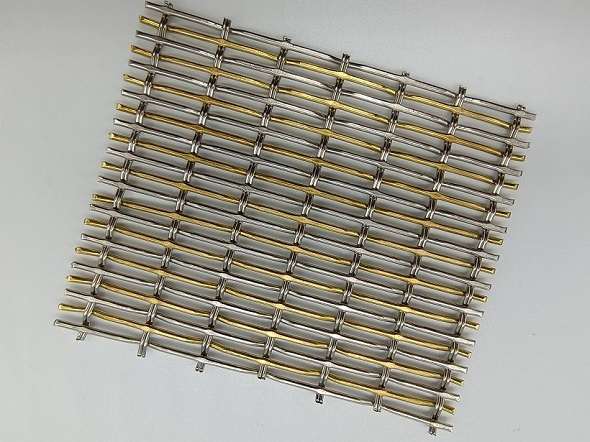

This is the reverse side of METART-WW28SSRB. Both sides of this ornamental wire mesh pattern can be used as the front side based on your requirements. This ornamental woven wire design can be used either for cabinet door inserts or other furniture door wire grilles as well as different interior screening projects.
Specification Table.
Raw Material |
Stainless Steel 304 or 316 + True Brass Wires |
Mesh Type |
Rigid Architectural Mesh |
Double Warp Wire Diameter |
1.15mm x 2 pieces |
Weft Wire Diameter |
1.95mm |
Clear Hole Size |
2.3x15.3mm |
Wire Pitch |
4.2 x 18mm |
Overall thickness of the fabric |
3.6mm |
Opening Area |
47% |
Privacy Rate |
53% |
Estimated Square Meter Weight |
6.8kg/㎡ |
Finish |
Mill Finish |
The way of cutting |
Straight Cut |
All optional ways of cut |
Straight Cut Only |
All optional Finishes |
Mill Finish, |
Custom made specifications and Mini order accepted. |
|
Note: All the measurements including wire thickness, diameter, opening, and overall thickness are nominal numbers. The actual specification might have a tiny bit of tolerance according to fabrication |
