hello@metartmesh.comMETART-WW05-18186-Architectural Cabinet Wire Mesh
Material: Stainless Steel Square Wire Grade 201, 304, 316.
Type: Rigid Decorative Wire Mesh
Opening Area: 40%
Estimated Square Meter Weight: Approx 6.4kg/㎡
Finish: Mill Finish
Screen Width: Custom made
Screen Length: Custom made

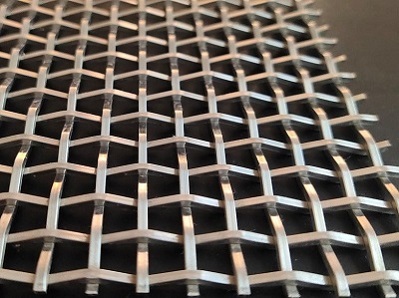

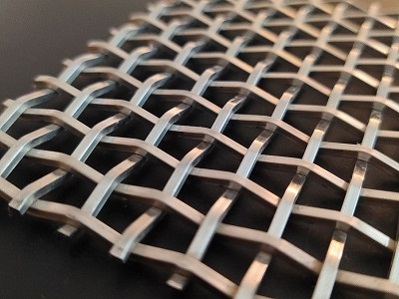

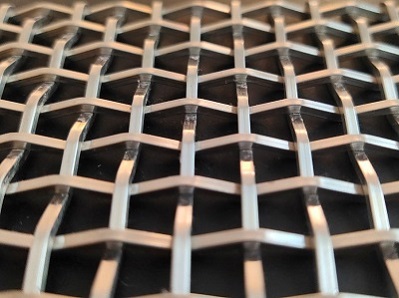

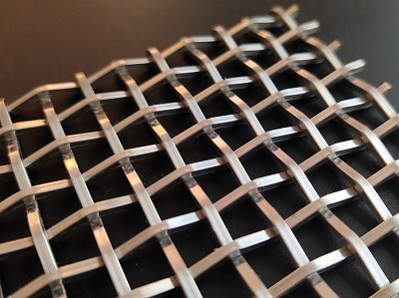

METART-WW05-18186 is a one-of-a-kind woven wire mesh that is distinguished by its use of stainless steel strips in both the warp and the weft.
However, in contrast to the other members of the WW05 family, number #18186 is constructed using square wires rather than flat wires.
The specification of this design is represented by the number 18186, and it consists of square wires measuring 1.8x1.8mm and a clear hole measuring 6x6mm.
During the weaving process, the wires will unavoidably become crimped due to the small size of the holes.
Because of this, the stainless steel fabric will have clearer ups and downs compared to the other members of ww05, creating an appearance that is three-dimensional.
This design of square wire mesh may be used for wall cladding, railing infill wire mesh panels, bridge fence panels, hotel partition screens, office partition screens, other commertial building divider screens,cabinetry inserts, and quite a few other uses as well.
Specifications Table.
Material |
Stainless Steel Grade 201, 304 or 316. |
Type |
Rigid |
Square Wire Dia. |
1.8x1.8mm |
Clear Hole Size |
6.2mm |
Over thickness of the fabric |
3.6mm |
Opening Area |
40% |
Block out |
60% |
Privacy Rate |
60% |
Estimated Square Meter Weight |
6.4kg/㎡ |
Finish |
Mill Finish ( Original stainless steel bright finish) |
The way of cutting |
Straight Cut |
All optional ways of cut |
Straight Cut, Diamond Cut |
All optional Finishes |
Mill Finish ( Original stainless steel bright finish), |
Custom made specifications and Mini order accepted. |
|
Note: All the measurements including wire thickness, diameter, opening, and overall thickness are nominal numbers. The actual specification might have a tiny bit of tolerance according to fabrication |
Please refer to the following table for all the specifications of METART WW05.
Item # |
Flat Strip |
Clear Hole Dia. |
Opening Area |
Privacy Rate |
Square Meter Weight |
Overall Thickness |
METART 05-61585 |
6x1.5mm |
8.5x8.5mm |
34% |
66% |
9.5KG |
3.4mm |
METART 05-41022 |
4x1mm |
2.2x2.2mm |
11% |
89% |
9.2KG |
3.2mm |
METART 05-31507 |
3x1.5mm |
7x7mm |
49% |
51% |
7.0 KG |
3.0mm |
METART 05-31005 |
3x1.0mm |
5x5mm |
39% |
61% |
5.8 KG |
2.0mm |
METART 05-31204 |
3x1.2mm |
4x4mm |
33% |
67% |
7.6KG |
2.5mm |
METART 05-31205 |
3x1.2mm |
5x5mm |
39% |
61% |
7.0 KG |
2.4mm |
METART 05-31207 |
3x1.2mm |
7x7mm |
49% |
51% |
5.6 KG |
2.4mm |
METART 05-31210 |
3x1.2mm |
10x10mm |
59% |
41% |
4.3 KG |
2.4mm |
METART 05-31510 |
3x1.5mm |
10x10mm |
59% |
41% |
5.4 KG |
3.0mm |
METART 05-25103 |
2.5x1.0mm |
3x3mm |
29.7% |
70.3% |
7.1 KG |
2.0mm |
METART 05-22134 |
2.2x1.0mm |
3.4x3.4mm |
36.8% |
63.2% |
6.1 KG |
2.0mm |
METART 05-22834 |
2.2x0.8mm |
3.4x3.4mm |
36.8% |
63.2% |
4.9 KG |
1.6mm |
METART 05-22084 |
2.2x0.8mm |
4x4mm |
37% |
63% |
4.0KG |
1.6mm |
METART 05-18186 |
1.8x1.8mm |
6.2x6.2mm |
60% |
40% |
6.4KG |
3.6mm |
