METART-WW27-Stainless Steel Designer Woven Wires
Raw Material: Stainless Steel 201,304,316.
Mesh Type: Rigid Decorative Wire Mesh
Opening Rate: 58%
Estimated Square Meter Weight: Approx 5.2kg/㎡
Finish: Mill Finish
Sheet Size: custom made

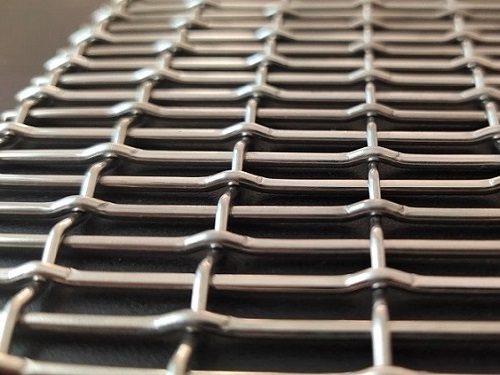

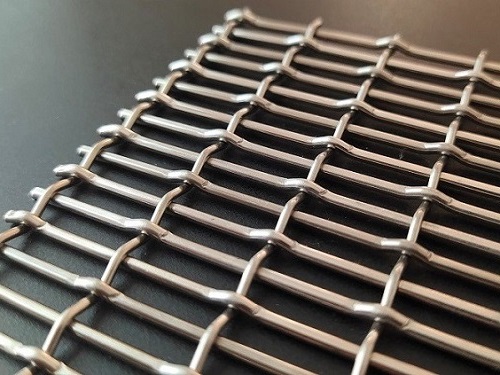

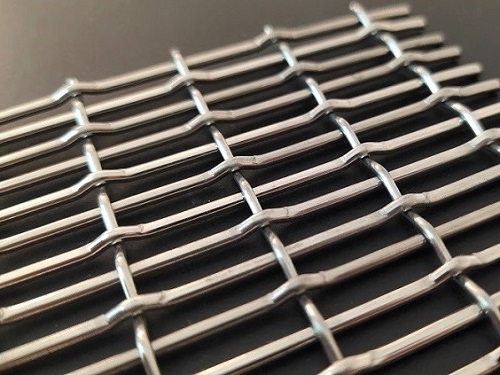

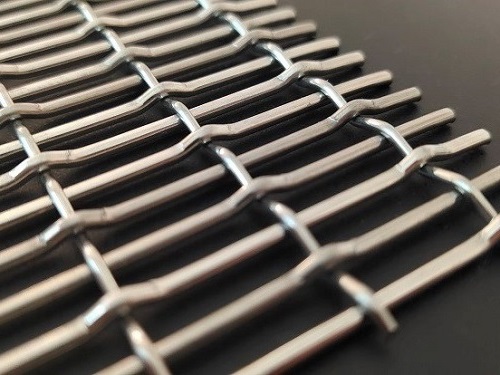

METART WW27 is a basic decorative woven wire with slot holes. Adopting 1.5mm stainless steel wire for the warp and 2mm stainless steel wire for the weft, the design is primarily intended for residential applications such as cabinet inserts, wall cladding material, etc.
Specification Table.
|
Raw Material |
Stainless Steel 201,304 or 316, Aluminum Alloy |
|
Mesh Type |
Rigid Architectural Wire Mesh |
|
Wire Diameter (warp x weft) |
1.5 x 2mm |
|
Clear Hole Size |
3.4x16.2mm |
|
Wire Pitch |
5.5 x 18mm |
|
The total thickness of the fabric |
3.2mm |
|
Opening rate |
58% |
|
Privacy Rate |
42% |
|
Estimated Square Meter Weight |
5.2kg/㎡ |
|
Finish |
Stainless Steel Mill Finish |
|
The way of cutting |
Straight Cut |
|
All optional ways of cut |
Straight Cut Only |
|
All optional Finishes |
Mill Finish ( Original stainless steel bright finish), |
|
Custom made specifications and Mini order accepted. |
|
|
Note: All the measurements including wire thickness, diameter, opening, and overall thickness are nominal numbers. The actual specification might have a tiny bit of tolerance according to fabrication |
|
