METART-WW06-31053-Cladding Stainless Steel Mesh

Specification

Material: Stainless Steel Grade 201,304, or 316,

Type: Rigid Architectural Wire Mesh

Opening Area: 41%

Estimated Square Meter Weight: Approx 5.1kg/㎡

Finish: Copper Painted

Screen Width: Custom made

Screen Length: Custom made

GET A QUOTE

Introduction

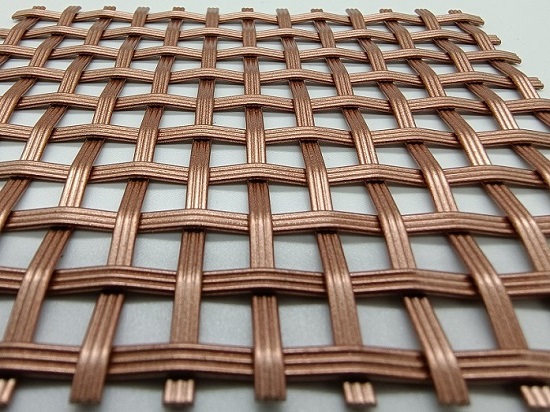

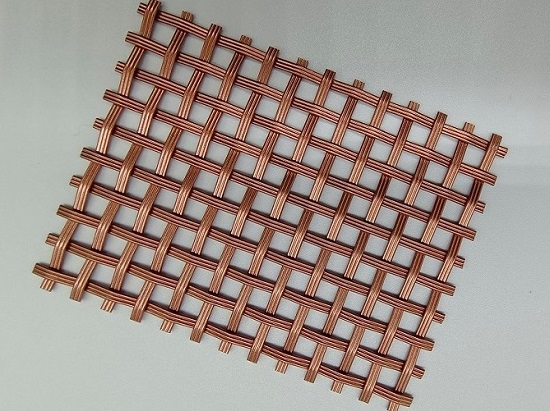

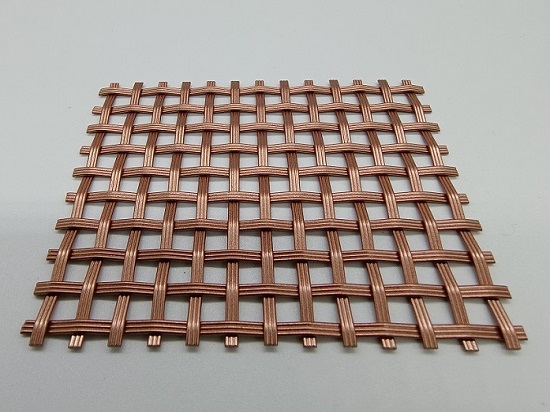

The most popular pattern in the WW06 series is METART-WW06-31053.

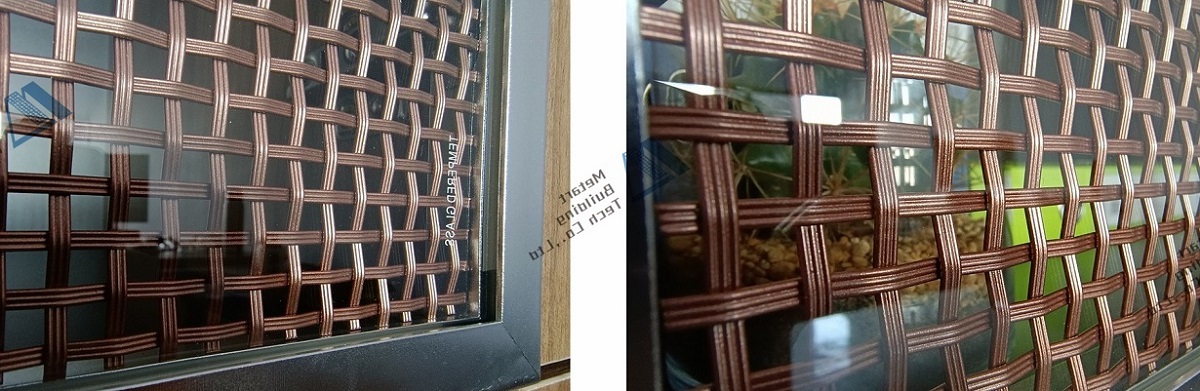

The aperture size is around 5.3mm, the wire width is 2.9mm, and the wire thickness is 1mm. This sample has a diamond-cut mill finish. You may choose from a variety of colors and finishes. This mesh design is appropriate for wall decorations and cabinet insert mesh. Balustrade mesh panels and interior ornamental screens may also be made out of it.

Specification Table.

Material

Stainless Steel Grade 201,304 or 316.

Type

Rigid Architectural Wire Mesh

Flat Wire Strip(WidthxThickness):

3x1.0mm

Clear Hole Size

5.3mm

Overall thickness of the fabric

2mm

Opening Area

41%

Privacy Rate

59%

Weight

5.1kg/Square Meter

Finish

Stainless Steel Mill Finish

The way of cutting

Diamond Cut

All optional ways of cut

Straight Cut, Diamond Cut

All optional Finishes

Mill Finish ( Original stainless steel bright finish),
Antique Bronze plating, Antique Copper plating, Antique brass plate,
Vacuum titanium plated, Painted, PVDF Coated,

Custom made specifications and Mini order accepted.

Note:

All the measurements including wire thickness, diameter, opening, and overall thickness are nominal numbers. The actual specification might have a tiny bit of tolerance according to fabrication
