METART-WW46-Architectural Facade Stainless Steel Wire Mesh

Specification

Raw Material: Stainless Steel Grade 304, 316.

Mesh Type: Rigid Architectural Wire Mesh

Opening rate: 82.5%

Estimated Square Meter Weight: Approx 4.5kg/㎡

Finish: Mill Finish

Sheet Size: custom made

GET A QUOTE

Introduction

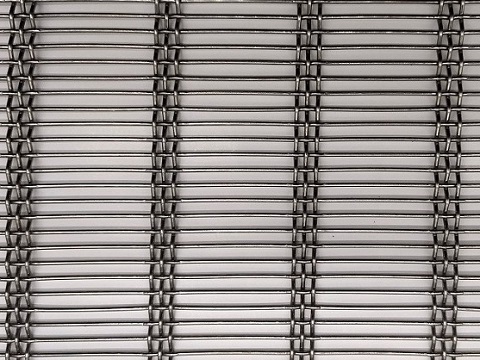

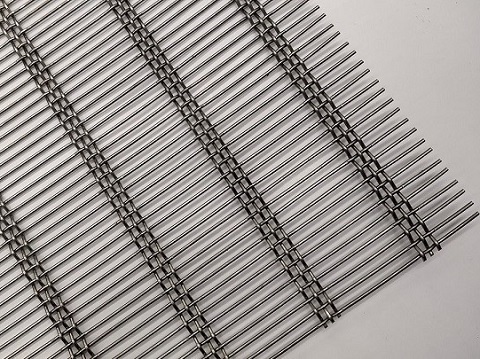

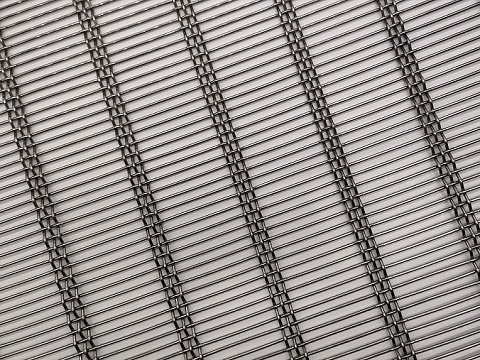

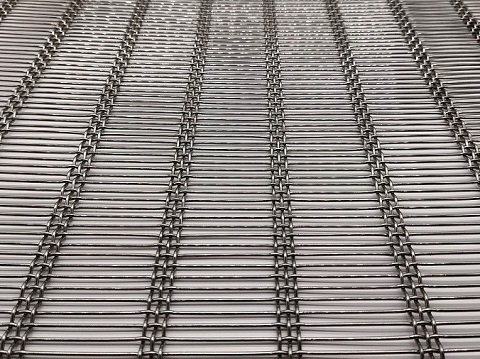

METART-WW46 is an innovative and stylish solution for fencing mesh, building facade screen mesh, and wall cladding mesh.

Made with high-quality stainless steel wires in both warp and weft directions, this pattern looks similar to our woven wire cable drapery from far away. With a wire diameter of 1.9mm and an overall thickness of about 4mm, the METART-WW46 is a durable and long-lasting option for any interior or exterior application.

Featuring a big slot hole size of 4.7x51mm and a small slot hole size of 4.7x2.8mm, the METART WW46 has an opening rate of 82.5%, allowing for excellent air and light flow.

The METART WW46 comes with a variety of finishes, including the original stainless steel bright finish, antique bronze plating, antique copper plating, antique brass plating, PVD titanium plated, painted, and PVDF coating.

Made from high-quality SS304 or SS316 wires, the METART-WW46 is a simple and competitive choice for any architectural project. With its durability and style, the METART WW46 Rigid Architectural Wire Mesh is a good solution for any project.
Specification Table.

Raw Material

SS304 or SS316

Mesh Type

Rigid Architectural Wire Mesh

Wire Diameter

1.9mm

Big Slot Hole Size

4.7x 51mm

Small Slot Hole Size

4.7 x 2.8mm

Overall thickness of the fabric

4.5mm

Opening rate

82.5%

Privacy Rate

17.5%

Estimated Square Meter Weight

4.5kg/㎡

Finish

Stainless Steel Mill Finish

The way of cutting

Straight Cut

All optional ways of cut

Straight Cut Only

All optional Finishes

Mill Finish ( Original stainless steel bright finish),
Antique Bronze plating, Antique Copper plating, Antique brass plate, PVD titanium plated, Painted, PVDF Coated,

Custom made specifications and Mini order accepted.

Note:

All the measurements including wire thickness, diameter, opening, and overall thickness are nominal numbers. The actual specification might have a tiny bit of tolerance according to fabrication

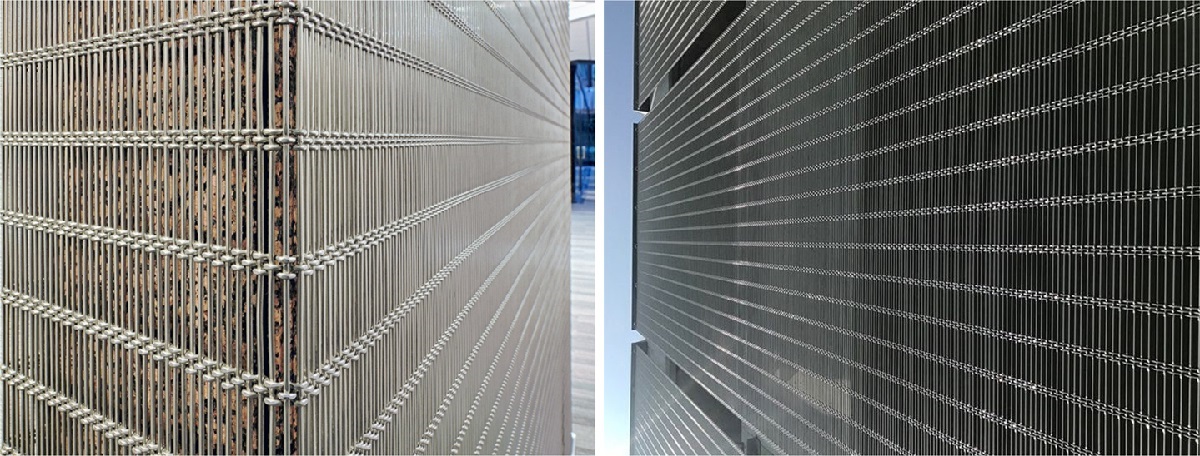

Application
