hello@metartmesh.comSpace Divider Ornamental Wire Mesh -METART-WW21-41019
Material: Stainless Steel 304 / Stainless Steel 316
Meh Type: Rigid Architectural Mesh
Opening Rate: 28%
Estimated Square Meter Weight: Approx 6.4kg/㎡
Finish: Mill Finish
Sheet Width: Custom made
Sheet Length: Custom made

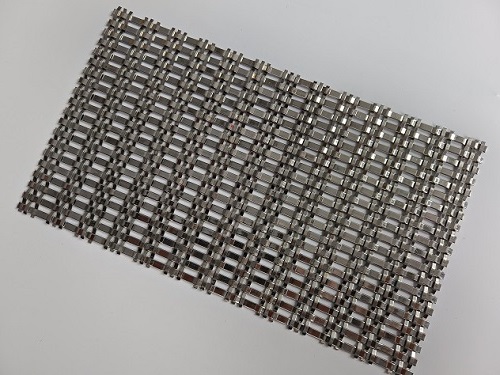

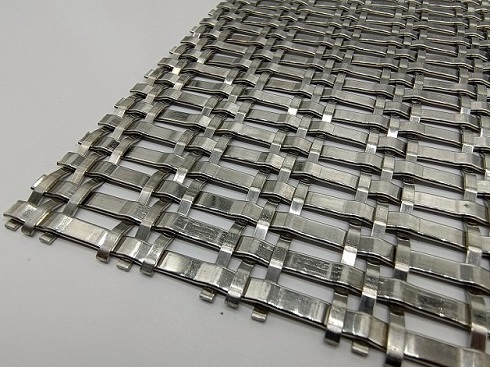

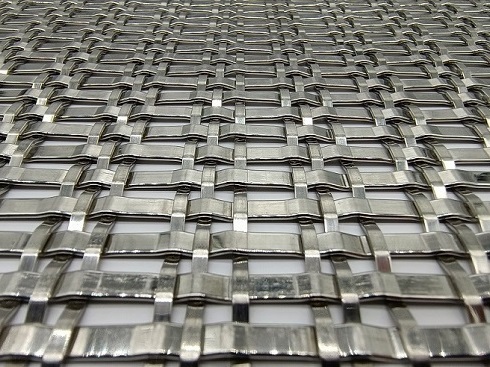

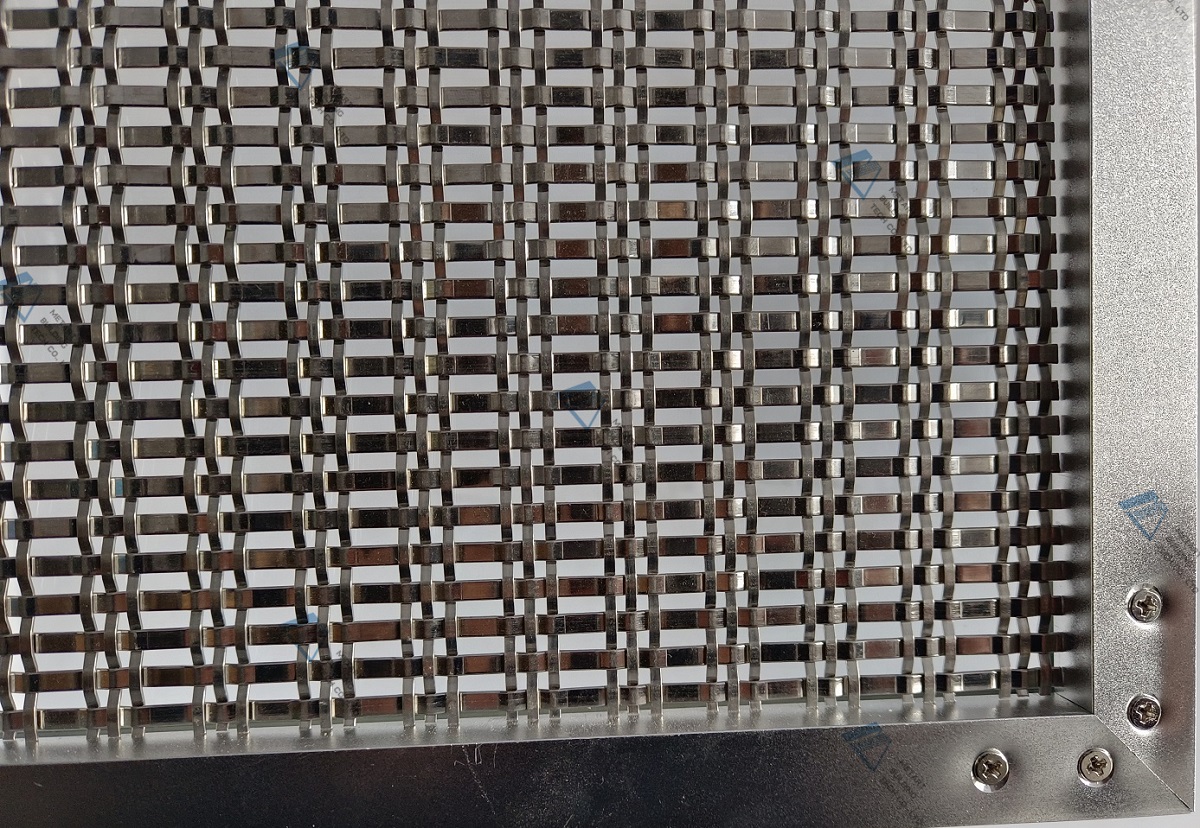

This is the mill-finished decorative wire mesh pattern WW21-41019, which is simply the unpolished, unbrushed, and uncoated stainless steel finish.
Additionally, this ornamental wire mesh pattern resembles a WW19 design quite a bit.
The small wire strips that replace the warp wires appear to be the only difference. The combination of the smaller strip group pitch of 19mm and the larger strip diameter of 4x1mm is represented by the number 41019.
If you would like a customized finish, such as an antique brass finish, an antique copper finish, a titanium-plated finish, etc., feel free to contact us.
Following Specifications.
Raw Material |
Stainless Steel Grade 201, 304, 316 |
Mesh Type |
Rigid Architectural Wire Mesh |
Bigger Wire Strip (Width x thickness) |
4x1mm |
Smaller Wire Strip (Width x thickness) |
2.2x0.8mm |
Bigger Strip Pitch |
7mm |
Smaller Strip Group Pitch |
19mm |
Overall thickness of the fabric |
2.1mm |
Opening Rate |
28% |
Privacy Rate |
72% |
Estimated Square Meter Weight |
6.4kg/㎡ |
Finish |
Stainless Steel Mill Finish |
The way of cutting |
Straight Cut |
All optional ways of cut |
Straight Cut Only |
All optional Finishes |
Mill Finish ( Original stainless steel bright finish), |
Custom made specifications and Mini order accepted. |
|
Note: All the measurements including wire thickness, diameter, opening, and overall thickness are nominal numbers. The actual specification might have a tiny bit of tolerance according to fabrication |
