METART-WW17LW-Antique Copper Designer Wire Mesh

Specification

Raw Material: Stainless Steel Wires Grade 201, 304 and marine grade 316.

Type: Rigid Designer Wire Mesh

Opening Area: 40%

Estimated Square Meter Weight: Approx 6.1kg/㎡

Finish: Antique Copper Plated

Screen Width: Custom made.

Screen Length: Custom made.

GET A QUOTE

Introduction

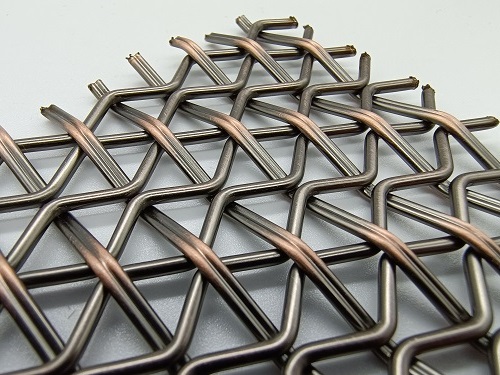

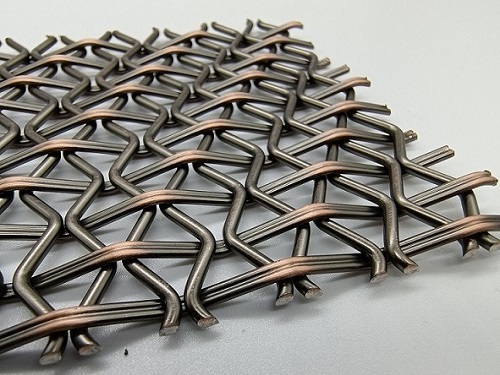

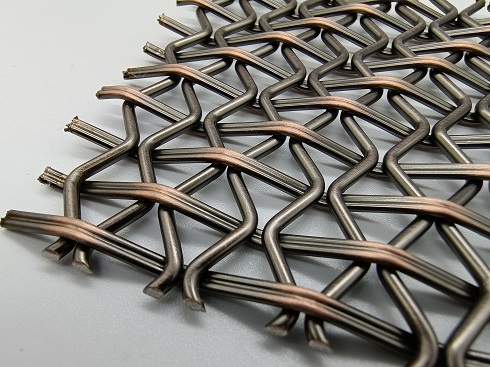

The lightweight variation of pattern #WW17 is designated as METART WW17LW. An example of an aged copper-plated finish is shown here.

It is made of 1.8mm waved warp wire and 2.4x1.2mm grooved weft wire strips. Compared to WW17HW, the warp wires are less wavy. Additionally, the mesh is lighter than WW17HW due to the weft strip's lower density.

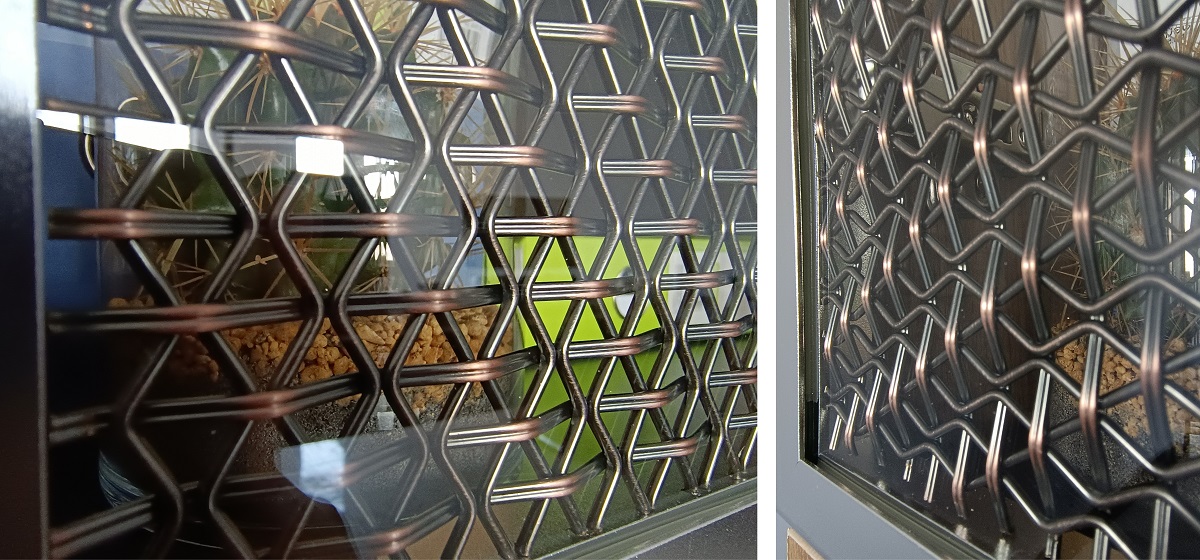

This vintage design of architectural mesh is frequently used in furniture door panels, closet door metal grilles, office screening, hotel lobby partition metal screens, living room metal screen separators, and wall cladding mesh panels.
Specification Table as Follow:

Raw Material

Stainless Steel Wires Grade 201,304 or marine grade 316.

Wire Mesh Type

Rigid Designer Wire Mesh

Round Wire Diameter (Single wire)

1.8mm

Flat Wire Strips (width x thickness):

2.4x1.2mm

Flat Wire Strip Pitch

8mm

Round Wire Hole Pitch

12.5mm

Overall thickness of the fabric

3.3mm

Opening Area

40%

Privacy Rate

60%

Estimated Square Meter Weight

6.1kg/㎡

Finish

Antique Copper Plated

The way of cutting

Straight Cut

All optional ways of cut

Straight Cut Only

All optional Finishes

Mill Finish ( Original stainless steel bright finish),
Antique Bronze plating, Antique Copper plating, Antique brass plate, PVD vacuum titanium plated, Painted, PVDF Coated,

Custom made specifications and Mini order accepted.

Note:

All the measurements including wire thickness, diameter, opening, and overall thickness are nominal numbers. The actual specification might have a tiny bit of tolerance according to fabrication

Application

GET A QUOTE
