Lift Cabin Cladding Architectural Stainless Steel Mesh-METART-WW04

Specification

Raw Material: SS201, SS304, SS316.

Mesh Type: Rigid Architectural Wire Mesh

Opening rate: 0%

Estimated Square Meter Weight: Approx 14kg/㎡

Finish: Mill Finish

Sheet Size: Custom made.

GET A QUOTE

Introduction

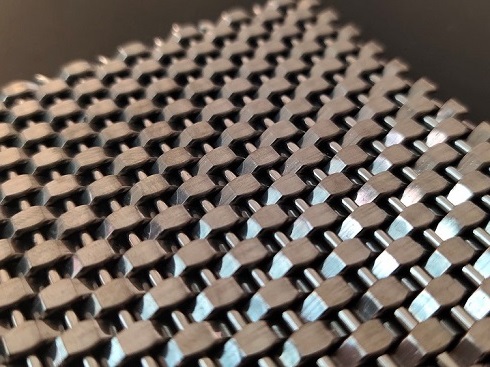

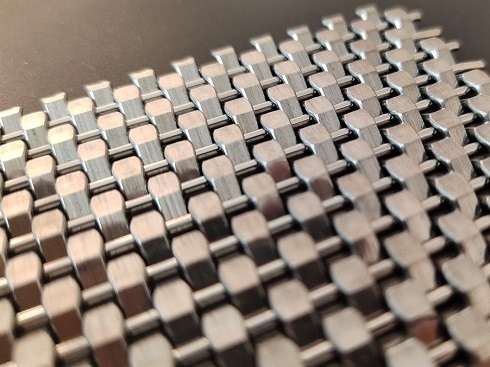

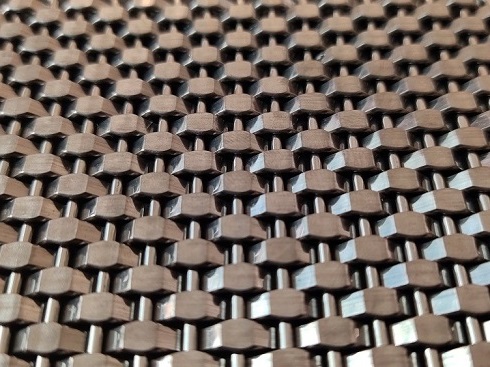

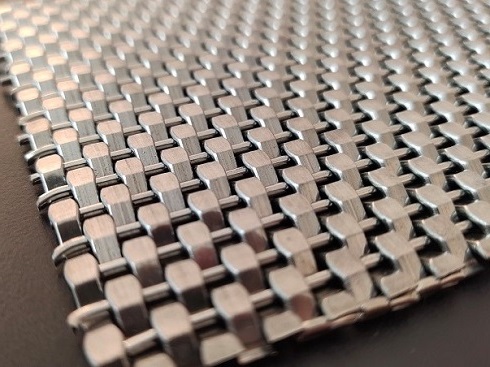

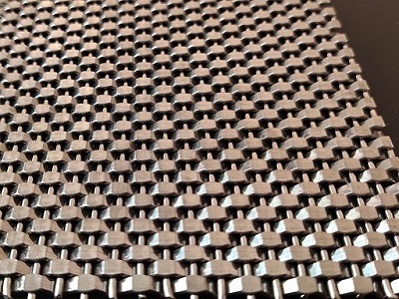

METART-WW04 is a solid architectural wire mesh pattern that combines ss wire rods and flattened wire strips.

This steel sheet-like wire mesh pattern is perfect for various applications, including architectural wall metal screen cladding, lift cabin renovations, and other wall cladding projects.

Made from quality stainless steel wires, the exhibited METART-WW04 comes in a mill finish pattern that offers a sleek and modern look.

For those looking to add a touch of elegance, the mesh can be surface treated with brass plating, copper plating, antique brass plating, antique copper plating, antique bronze plating, or PVD titanium plated to elevate the aesthetic appeal of your space.

The METART-WW04 is available in different raw material options such as SS201, SS304, SS316 and other customized alloys ensuring maximum durability and longevity.

This rigid ornamental woven wire mesh features a flat SS wire strip that measures 3x1.5mm in width and thickness, with a wire rod thickness of 1.45mm and a pitch of 5mm. And it had no openings.
Specification Table.

Raw Material

SS201, SS304, SS316

Mesh Type

Rigid Architectural Wire Mesh

Flat SS Wire Strip ( Width x Thickness)

3x1.5mm

Wire Rod

1.45mm

Wire Rod Pitch

5mm

Aperture Size

0mm

The total thickness of the fabric

3.1mm

Opening rate

0%

Privacy Rate

100%

Estimated Square Meter Weight:

14kg/㎡

Finish

Mill Finish ( Original stainless steel bright finish)

All optional ways of cut

Straight Cut only

All optional Finishes

Mill Finish ( Original stainless steel bright finish),
Antique Bronze plated, Antique copper plated, Antique brass plated, PVD Titanium Plated-Golden, Titanium Plated Black, Titanium Plated Rose Gold, Painted

Custom made specifications and Mini order accepted.

Note:
All the measurements including wire thickness, diameter, opening, and overall thickness are nominal numbers. The actual specification might have a tiny bit of tolerance according to fabrication.
