hello@metartmesh.comMETART-WW30-Antique Brass Plated Stainless Steel Architectural Wire Mesh
Raw Material: Stainless Steel Grade 201, 304, 316.
Mesh Type: Rigid Architectural Wire Mesh
Opening rate: 30%
Estimated Square Meter Weight: Approx 6.8kg/㎡
Finish: Antique Copper Plating
Sheet Size: Custom made.

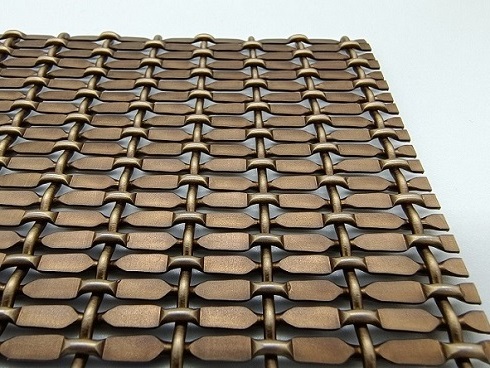

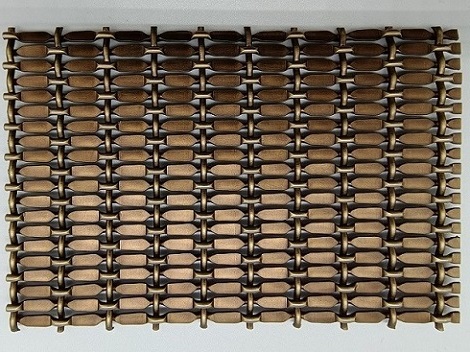

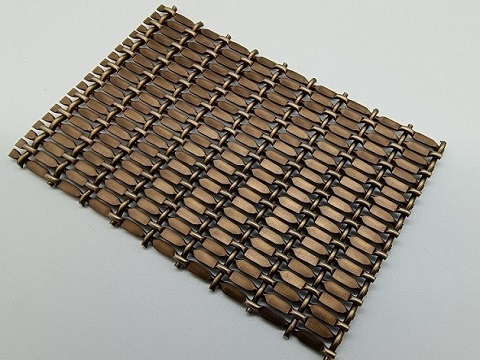

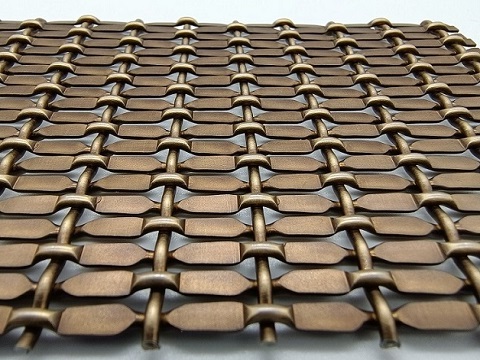

Architectural wire mesh pattern METART-WW30 is made of pre-shaped stainless steel wires. Before it is shaped, the wire is 1.8mm, and the widest part of it is measured at 3.2mm after it is shaped.
This decorative wire sample is copper plated and then antique processed to this aged style.

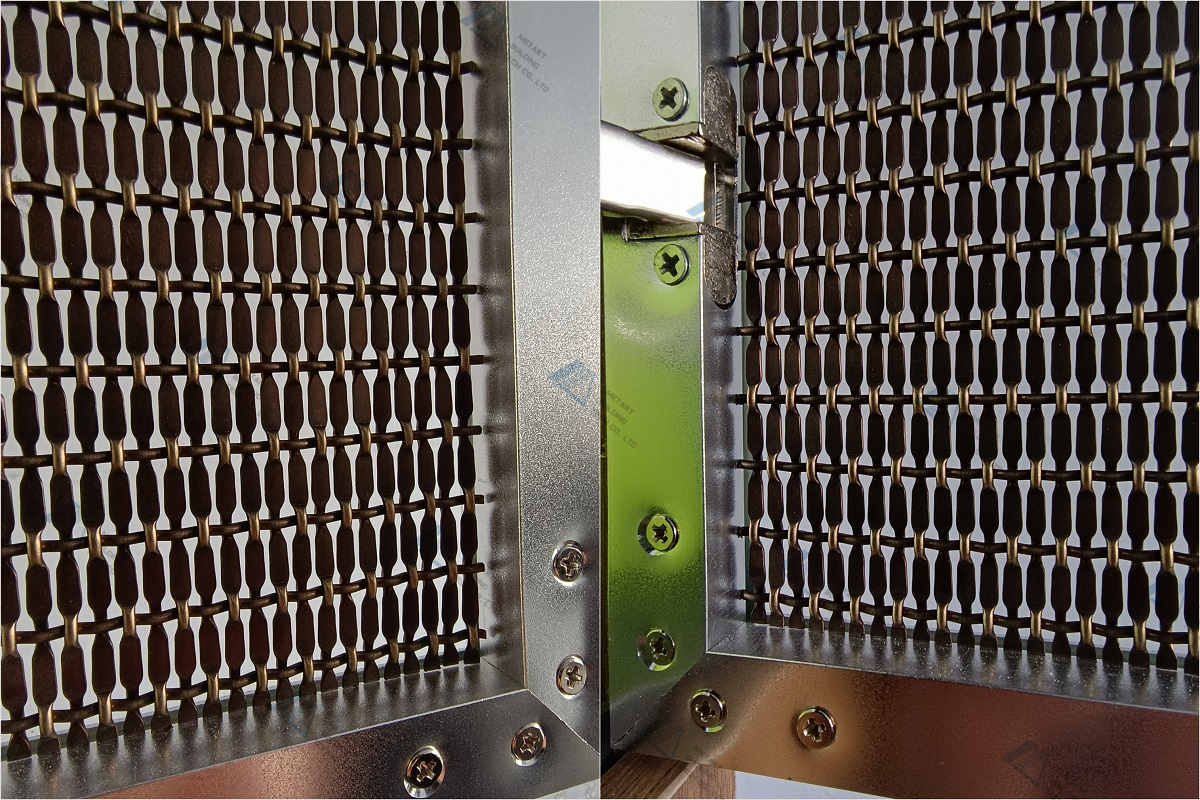

This architectural woven wire can be used in many different environments including cabinetry door fabrication, furniture fabrication, interior screening, shop shading screens, balustrading, privacy screening, etc.
Specification Table.
Raw Material |
Stainless Steel 201,304 or 316 |
Mesh Type |
Rigid Architectural Wire Mesh |
Wire Strip |
1.8mm before flattened, 3.2mm wide after |
Wire Rod Diameter |
1.65mm |
Clear Hole Size |
2x11mm |
Strip Pitch |
3.7mm |
Rod Pitch |
12.6mm |
OVerall thickness of the fabric |
4.1mm |
Opening Area |
30% |
Estimated Square Merer waightWeight |
6.8kg/㎡ |
Finish |
Antique Copper Plated |
The way of cutting |
Straight Cut |
All optional ways of cut |
Straight Cut Only |
All optional Finish |
Mill Finish ( Original stainless steel bright finish), |
Customized specifications and Mini order accepted. |
|
Note: All the measurements including wire thickness, diameter, opening, and overall thickness are nominal numbers. The actual specification might have a tiny bit of tolerance according to fabrication |
