Ornamental Hybrid Woven Wire Mesh-METART-WW18SSRC

Specification

Raw Material: Stainless Steel 304 or 316 + True Copper Wires

Mesh Type: Rigid Architectural Wire Mesh

Opening Rate: 51%

Estimated Square Meter Weight: Approx 9.5kg/㎡

Finish: Mill Finish

Sheet Width: Custom made

Sheet Length: Custom made

GET A QUOTE

Introduction

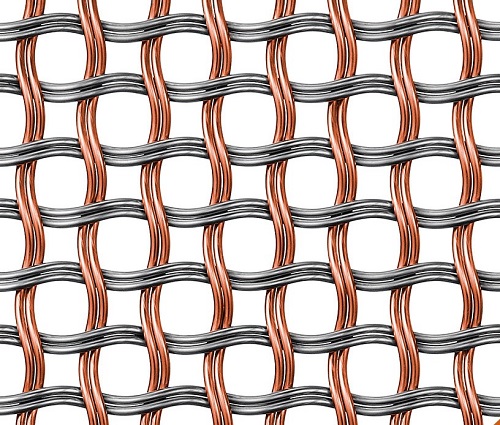

The METART-WW18SSRC is a hybrid woven wire mesh that is comprised of metal wires that are 50% stainless steel and 50% genuine red copper. The wires are woven together to create this stunning style.

Quite similar to the pattern WW18SSRB, this one is a hybrid that is woven using true copper and stainless steel wires.

This ornamental braided wire screen looks absolutely stunning when combined with these particular elements.

It is recommended to be utilized in the decorating and decoration of the interior of sophisticated commercial buildings.

Specification Table.

Raw Material

Stainless Steel 304 or 316+Real Copper Wire

Mesh Type

Rigid Architectural Wire Mesh

Single Wire Diameter

2.45mm

Bigger Hole Diameter

15mm

Smaller Aperture Size

10mm

Overal thickness of the wire fabric

5mm

Opening Rate

51%

Privacy Rate

49%

Estimated Square Meter Weight

9.5kg/㎡

Finish

Mill Finish.

The way of cutting

Straight Cut

All optional ways of cut

Straight Cut Only

All optional Finishes

Mill Finish

Custom made specifications and Mini order accepted.

Note:

All the measurements including wire thickness, diameter, opening, and overall thickness are nominal numbers. The actual specification might have a tiny bit of tolerance according to fabrication
