METART-WW20-Wine Cabinet Architectural Wire Grilles

Specification

Raw Material: Stainless Steel 201, 304 , or 316.

Mesh Type: Rigid Decorative Wire Mesh

Opening Rate: 59%

Estimated Square Meter Weight: Approx 3.4kg/㎡

Finish: Mill Finish

Sheet Width: Custom made

Sheet Length: Custom made

GET A QUOTE

Introduction

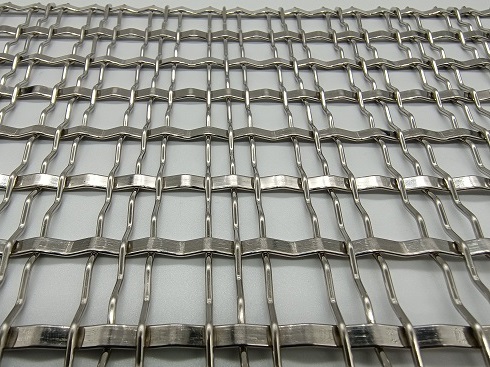

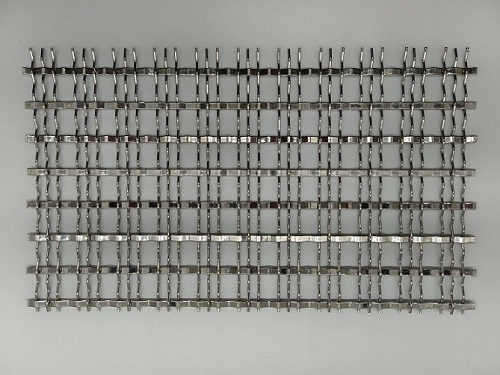

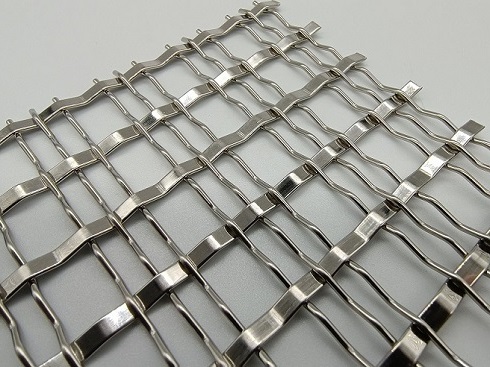

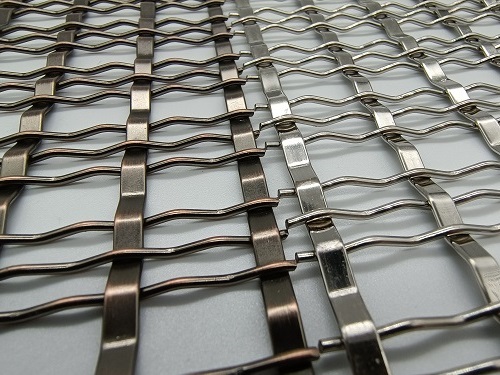

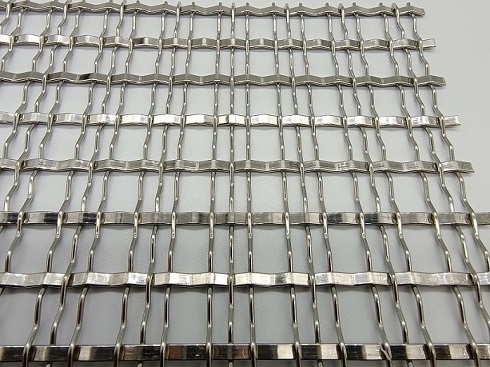

The ornamental woven wire pattern METART-WW20 is a lightweight refinement of the WW19 design.

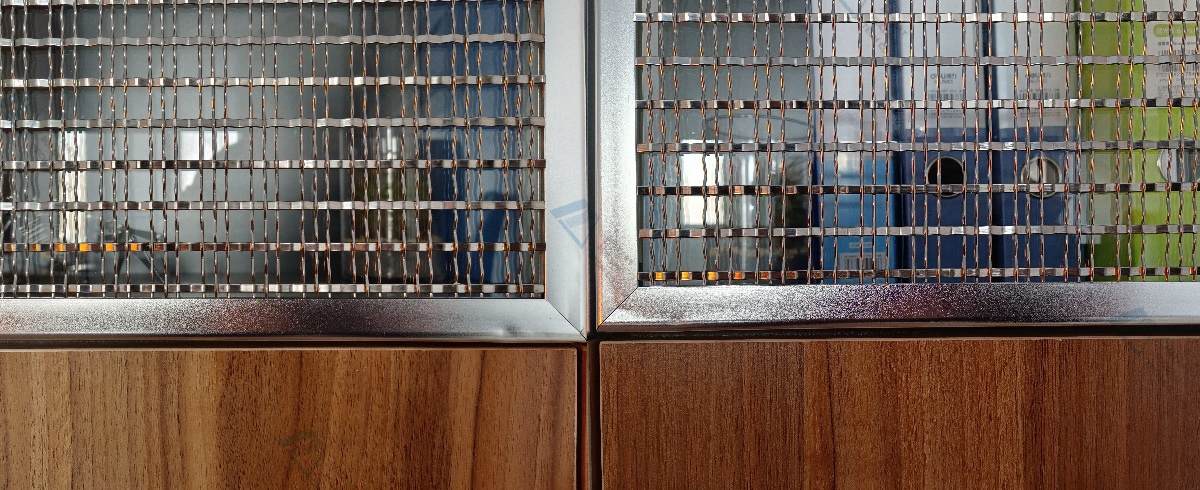

Stainless steel wire strips become less dense. This design works better for lightweight residential projects such as cabinet door DIY mesh, indoor vent covers, office filing cabinet door glass replacement, wine bar furnishing decorative metal screens, ceiling wire mesh, shopfitting featured mesh screens, etc.

This is a bright, genuine stainless steel finish devoid of any coatings. Please do not hesitate to contact us if you require it to be painted, brass-plated, copper-plated, or titanium-plated.
Specification Table.

Raw Material

SS201, SS304,or SS316

Mesh Type

Rigid Architectural Wire Mesh

Wire Strip( wdithxthickness)

4x1mm

Pre-Crimped Wire Rod Diameter

1.45mm

Wire Strip Pitch

18.5mm

Wire Rod Pitch

5.7mm

Wire Rod Group Pitch

23mm

Overall thickness of the fabric

2.9mm

Opening Area

59%

Privacy Rate

41%

Estimaed Square Meter Weight

3.4kg/㎡

Finish

Stainless Steel Mill Finish

The way of cutting

Straight Cut

All optional ways of cut

Straight Cut Only

All optional Finishes

Mill Finish ( Original stainless steel bright finish),
Antique Bronze plating, Antique Copper plating, Antique brass plate, vacuum titanium plated, Painted, PVDF Coated,

Custom made specifications and Mini order accepted.

Note:

All the measurements including wire thickness, diameter, opening, and overall thickness are nominal numbers. The actual specification might have a tiny bit of tolerance according to fabrication
