METART-WW25-Slot Hole Designer Stainless Steel Wire Mesh

Specification

Raw Material: Stainless Steel 201, 304, 316

Mesh Type: Rigid Architectural Wire Mesh

Opening Rate: 42%

Estimated Square Meter Weight: Approx 6.2kg/㎡

Finish: Mill Finish

Sheet Width: Custom made.

Sheet Length: Custom made.

GET A QUOTE

Introduction

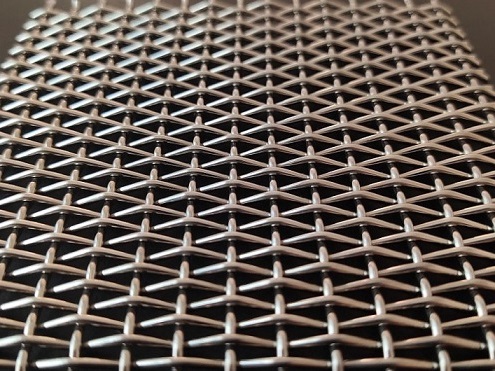

METART WW25 is just a type of simple slot hole designer wire mesh. It is of a good architectural look and is cost-effective.

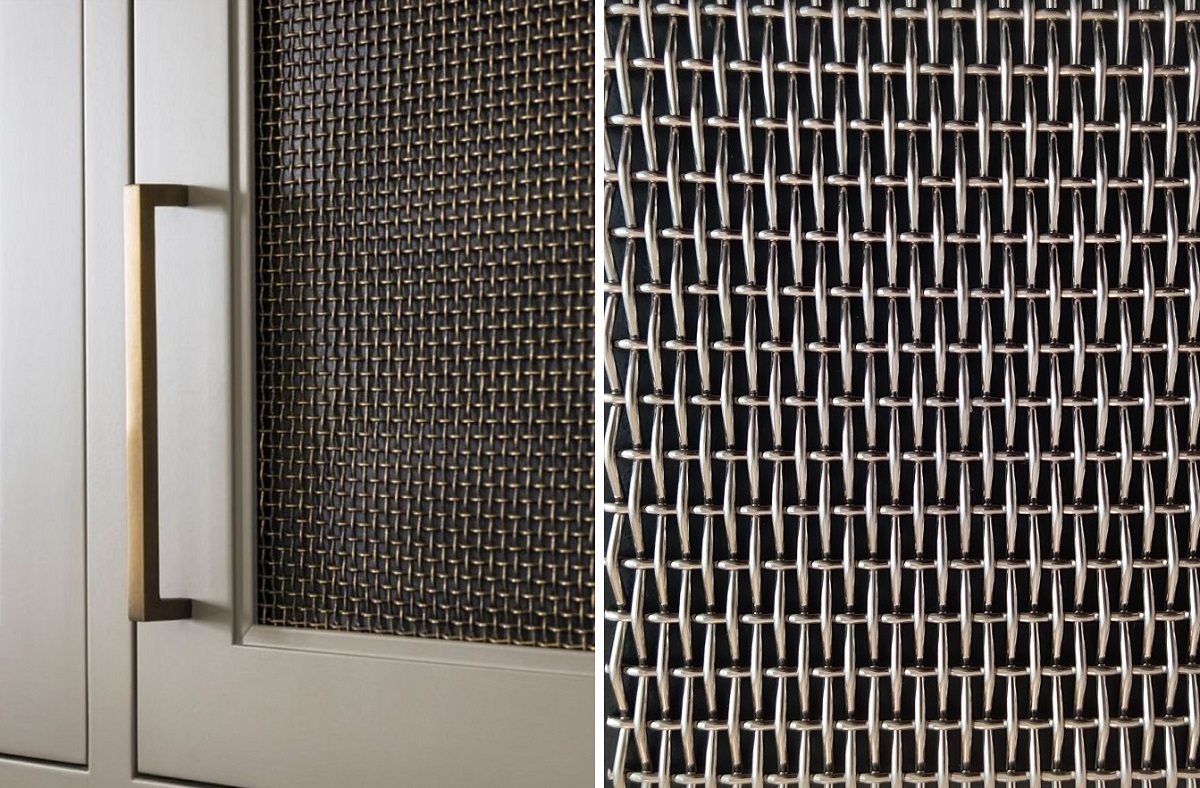

This designer wire mesh can be used for cabinetry door infill screens, partition screen infill mesh, and other fencing infill projects.
Specifications Table.

Raw Material

Stainless Steel 201,304,316.

Mesh Type

Rigid Architectural Wire Mesh

Wire Diameter

1.45mmx1.45mm

Clear Hole Size

1.6x5.6mm

Wire Pitch

3.1x7.1mm

Overall thickness of the fabric

3.5mm

Opening rate

42%

Privacy Rate

52%

Estimated Square Meter Weight

6.2kg/㎡

Finish

Stainless Steel Mill Finish

The way of cutting

Straight Cut

All optional ways of cut

Straight Cut Only

All optional Finishes

Mill Finish ( Original stainless steel bright finish),
Antique Bronze plating, Antique Copper plating, Antique brass plate, PVD titanium plated, Painted, PVDF Coated,

Custom made specifications and Mini order accepted.

Note:

All the measurements including wire thickness, diameter, opening, and overall thickness are nominal numbers. The actual specification might have a tiny bit of tolerance according to fabrication

Application
