METART-WW15-Double Wire Designer Mesh

Specification

Material: Stainless Steel Grade 201,304, or 316.

Type: Rigid Decorative Wire Mesh

Opening Area: 59%

Estimated Square Meter Weight: Approx 5.2kg/Square Meter

Finish: Mill Finish

Screen Width: Custom made.

Screen Length: Custom made.

GET A QUOTE

Introduction

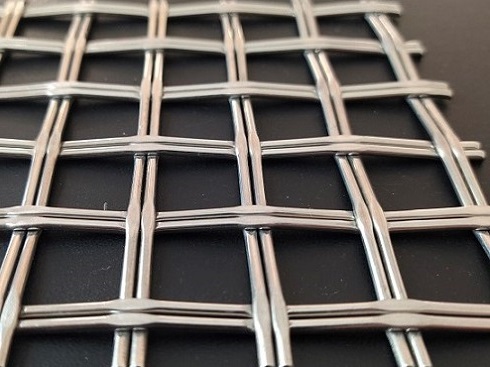

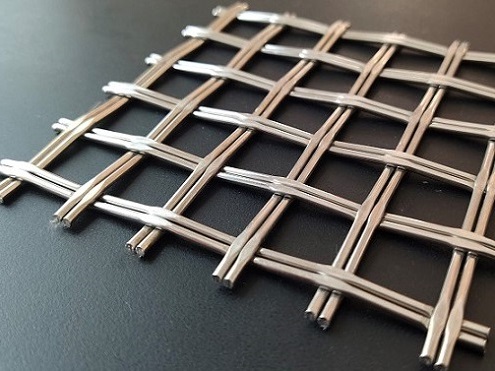

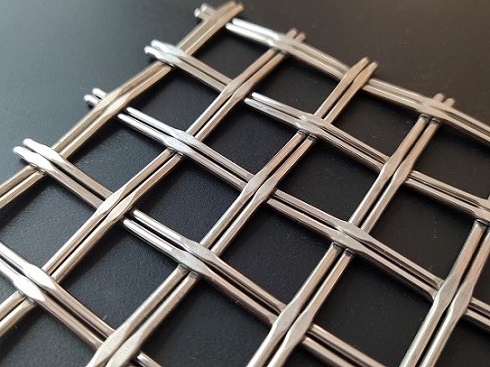

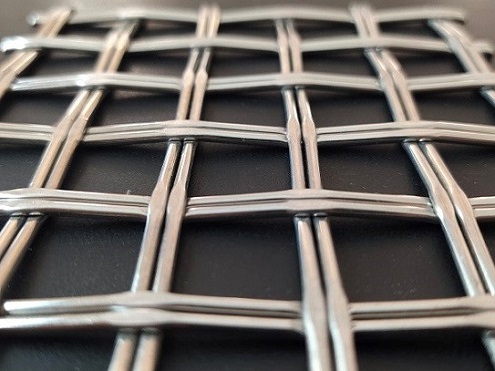

The METART WW15 design is a stylish designer architectural wire mesh that is woven using double wires.

The diameter of a single wire is 2 millimeters, and the aperture size is 14 millimeters.

Due to the extremely stiff nature of this woven wire design, it may be fashioned into security fence panels that call for a stylish look as well as balustrade infill panels for commercial use.

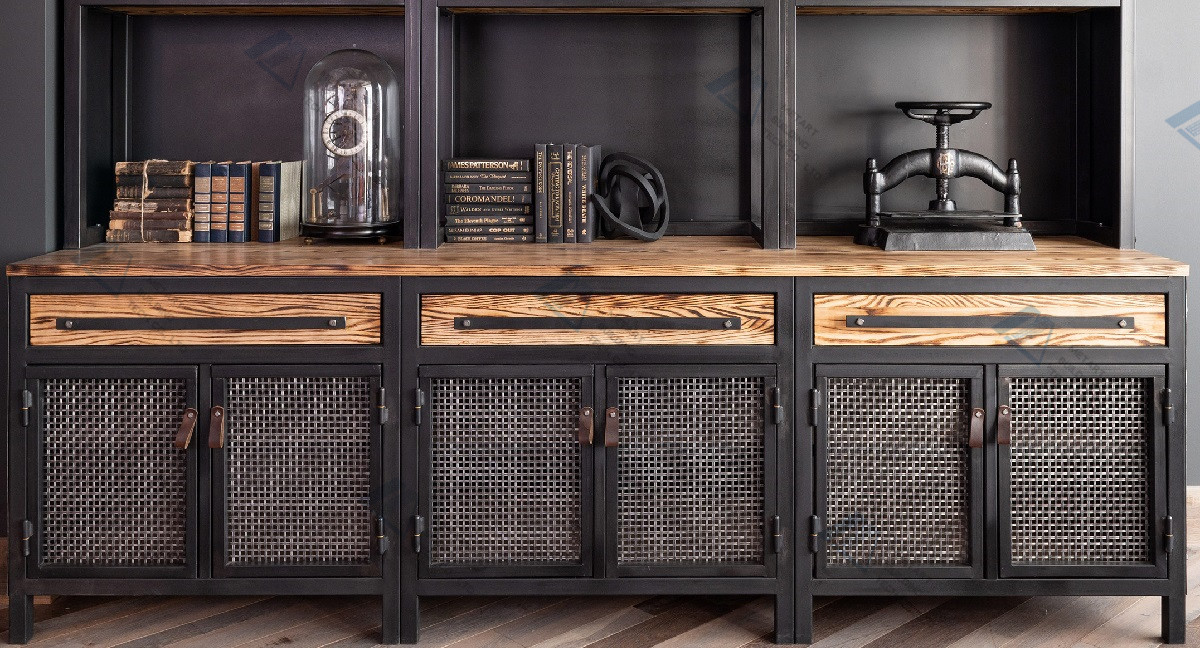

In addition to decorative railing infills and fence mesh, this stainless steel wire mesh may also be used as wire grilles for cabinet doors, suspended ceiling tiles mesh, shopfitting wire mesh, or wall cladding projects.


Specification Table.

Material

Stainless Steel Grade 201,304 or 316.

Type

Rigid Architectural WIre Mesh

Wire Diameter (Single wire)

2mm

Clear Hole Size

14mm

Overall thickness of the fabric

2.9mm

Opening Area

59%

Block out

41%

Privacy Rate

41%

Estimated Square Meter Weight

5.2kg/㎡

Finish

Stainless Steel Mill Finish

The way of cutting

Straight Cut

All optional ways of cut

Straight Cut, Diamond Cut

All optional Finish

Mill Finish ( Original stainless steel bright finish),
Antique Bronze plating, Antique Copper plating, Antique brass plate, vacuum titanium plated, Painted, PVDF Coated,

Custom made specifications and Mini order accepted.

Note:

All the measurements including wire thickness, diameter, opening, and overall thickness are nominal numbers. The actual specification might have a tiny bit of tolerance according to fabrication

Application



GET A QUOTE
