hello@metartmesh.comOrnamental Stainless Steel Wire Mesh-METART-WW19M
Raw Material: Stainless Steel 201, 304, 316
Mesh Type: Rigid Decorative Wire Mesh
Opening Rate: 36%
Estimated Square Meter Weight: Approx 4.8kg/㎡
Finish: Mill Finish (Matte Wire Strips)
Sheet Width: Custom made
Sheet Length: Custom made

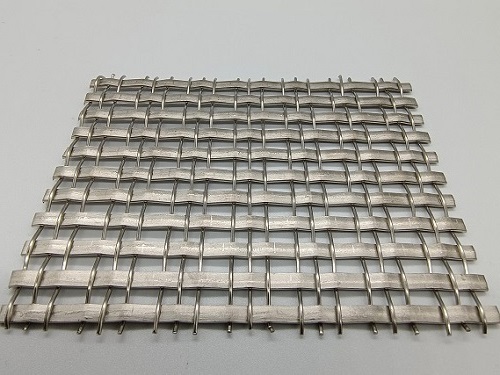

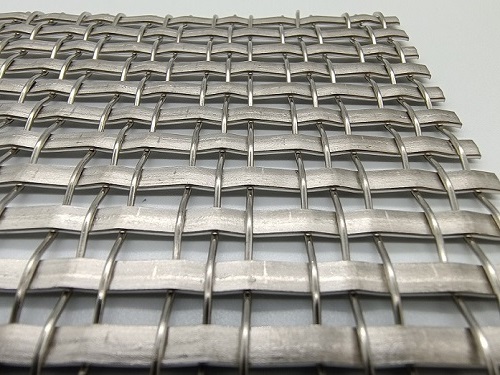

This is our architectural woven wire pattern METART-WW19M, with matte finish wire strips.
This simple but classic ornamental wire mesh adopts regular 0.95mm round stainless steel annealed bright wires as warp and a matte-finished 4x1mm stainless steel flat wire strip as weft.
As the whole vertical direction is fully flexible, this ornamental stainless steel mesh can be shaped easily to suit your architectural designs.

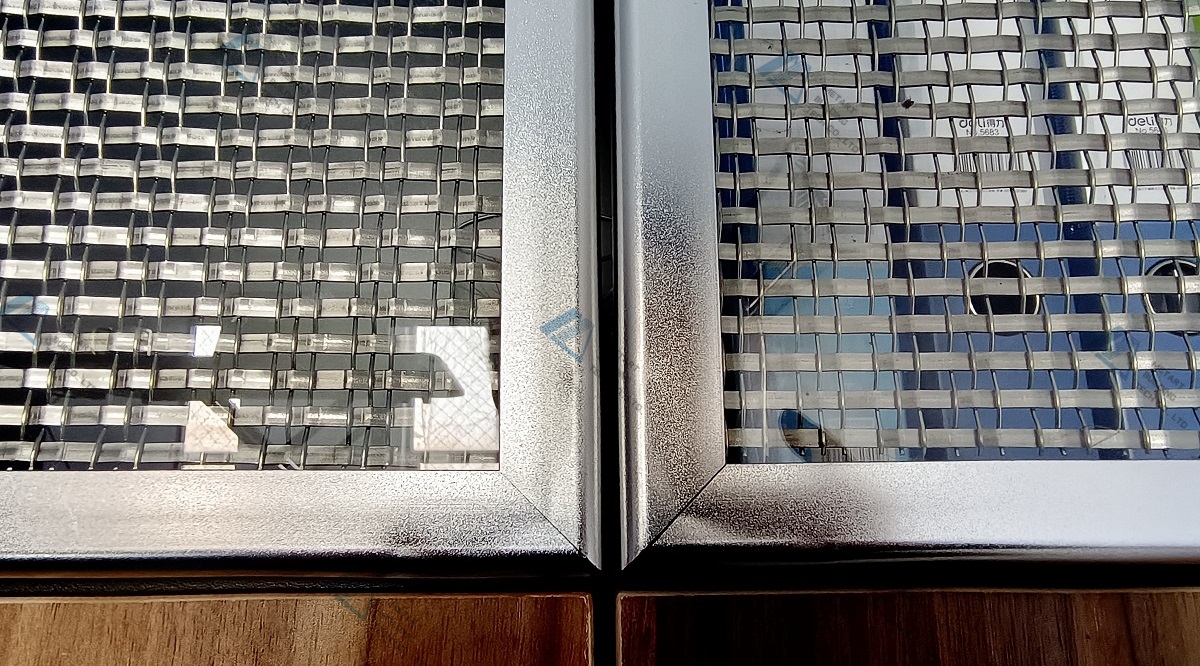

It can be either framed and welded to an exotic-shaped ceiling panel or used as cabinetry infill wire grilles.
And this mesh can be used in a lot more different decorative applications including fencing wire mesh, space dividing systems, shopfitting screening systems, shop from featured screens, etc.
With an approx 36% opening area, this architectural woven wire can also be made into shading screens or privacy screens in commercial buildings.
We could provide this mesh with different finishes including PVD titanium plated, copper plated, brass plated, painted, PVDF painted, powder coated, etc.
It will become even more beautiful and popular after it is extra finished.
Specification Table.
Raw Material |
Stainless Steel 201, 304, 316 |
Mesh Type |
Half Rigid Wire Mesh |
Wire Strips (width x thickness) |
4x1mm |
Wire Rod Diameter |
0.95mm |
Wire Strip Pitch |
8mm |
Wire Rod Pitch |
4.4mm |
Wire Rod Group Pitch |
15.8 |
Overall thickness of the fabric |
2.4mm |
Opening Area |
36% |
Privacy Rate |
64% |
Estimated Square Meter Weight |
4.8kg/㎡ |
Finish |
Stainless Steel Mill Finish |
The way of cutting |
Straight Cut |
All optional ways of cut |
Straight Cut, |
All optional Finishes |
Mill Finish ( Original stainless steel bright finish), |
Custom made specifications and Mini order accepted. |
|
Note: All the measurements including wire thickness, diameter, opening, and overall thickness are nominal numbers. The actual specification might have a tiny bit of tolerance according to fabrication |
