METART-WW34MSS-Bright Brass Plated Partition Screen Infill Wire Mesh

Specification

Raw Material: Stainless Steel Grade 201, 304 ,316

Mesh Type: Rigid Architectural Wire Mesh

Opening rate: 10%

Estimated Square Meter Weight: Approx 15.8kg/㎡

Finish: Bright brass plated color.

Sheet Size: custom made.

GET A QUOTE

Introduction

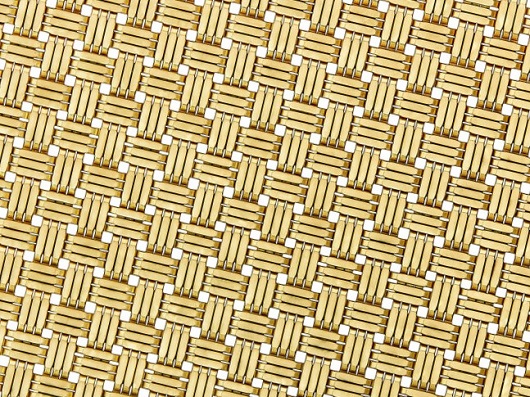

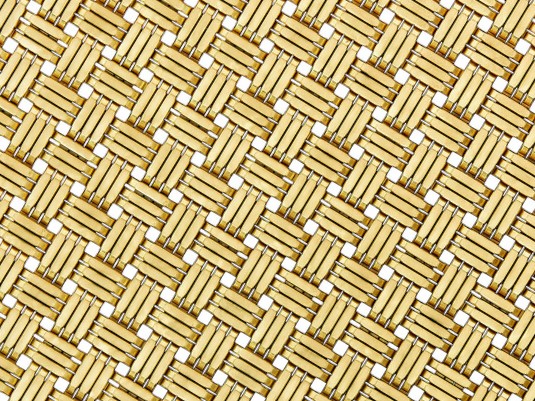

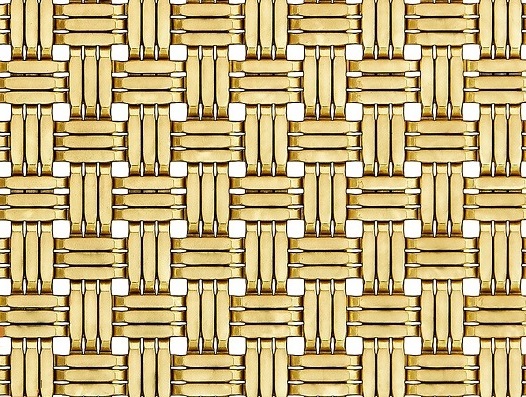

It is a bright brass plated finish of stainless steel architectural wire mesh pattern METAR WW34MSS.

Just like the other finishes, this is also a good choice for cladding and screening infills.

Specification Table.

Raw Material

Stainless Steel Grade 201,304 or 316.

Mesh Type

Rigid Architectural Mesh

Single Wire Strip

2.7x1.4mm

Strip Group Width (3 wires)

9.1mm

Clear Hole Size

4x4mm

The total thickness of the fabric

2.8mm

Opening Area

10%

Block out

10%

Privacy Rate

90%

Weight

15.8kg/Square Meter

Finish

Bright Brass Plated Color

The way of cutting

Straight Cut

All optional ways of cut

Straight Cut

All optional Finish

Mill Finish ( Original stainless steel bright finish),
Antique Bronze plating, Antique Copper plating, Antique brass plate, vacuum titanium plated

Custom made specifications and Mini order accepted.

Note:

All the measurements including wire thickness, diameter, opening, and overall thickness are nominal numbers. The actual specification might have a tiny bit of tolerance according to fabrication
