hello@metartmesh.comMETART-WW05-41022-Architectural Privacy Wire Mesh
Material: Stainless Steel Wire Strips Grade 201,304,316.
Type: Rigid Decorative Wire Mesh
Opening Area: 11%
Estimated Square Meter Weight: Approx 9.2kg/㎡
Finish: Mill Finish
Screen Width: Custom made
Screen Length: Custom made

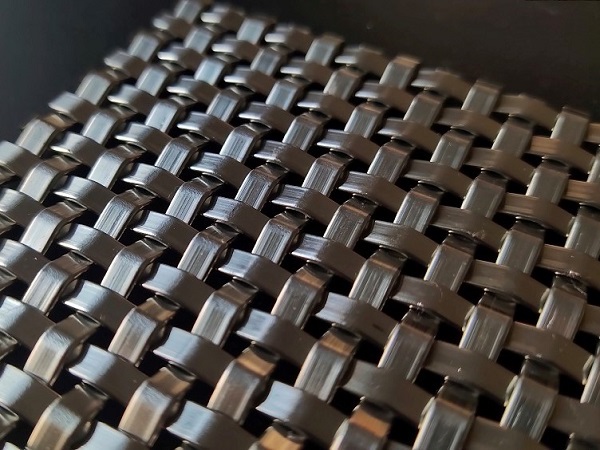

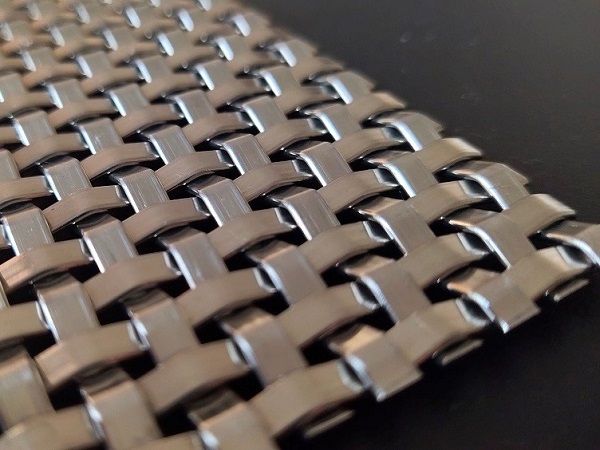

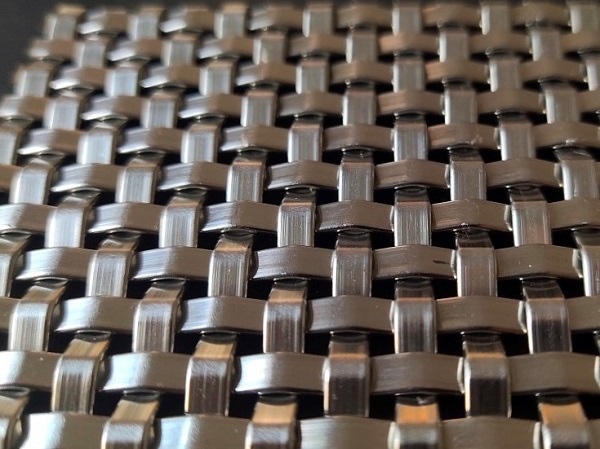

Flat woven wire design METART-WW05-41022 represents 4.0mm flat wire strips, 1.0mm wire thickness, and 2.2x2.2mm aperture size.
This design of wire mesh has a very small opening area, with only 11% of the total surface being open. The great density of the weaving in both directions provides a good deal of discretion for those who make use of it.
The example that we are showing here is a version that has not been painted. It is constructed of 304-grade stainless steel wire strips for indoor purposes and 316-grade stainless steel for outdoor uses.
Because of its qualities, this beautiful woven wire may be utilised as a privacy screen mesh for swimming pools, a privacy balustrade infill mesh, or a private shading screen mesh. All three of these applications are possible.
Specification Table.
Material |
Stainless Steel Grade 201,304 or 316 |
Type |
Rigid Decorative Wire Mesh |
Flat Wire Strip(WidthxThickness) |
4x1mm |
Clear Hole Size |
2.2mm |
Overall thickness of the fabric |
3.2mm |
Opening Area |
11% |
Privacy Rate |
89% |
Estimated Square Meter Weight |
9.2kg/㎡ |
Finish |
Stainless Steel Mill Finish |
The way of cutting |
Straight Cut |
All optional ways of cut |
Straight Cut, Diamond Cut |
All optional Finish |
Mill Finish ( Original stainless steel bright finish), |
Custom made specifications and Mini order accepted. |
|
Note: All the measurements including wire thickness, diameter, opening, and overall thickness are nominal numbers. The actual specification might have a tiny bit of tolerance according to fabrication |
Please refer to the following table for all the specifications of METART WW05.
Item # |
Flat Strip |
Clear Hole Dia. |
Opening Area |
Privacy Rate |
Square Meter Weight |
Overall Thickness |
METART 05-61585 |
6x1.5mm |
8.5x8.5mm |
34% |
66% |
9.5KG |
3.4mm |
METART 05-41022 |
4x1mm |
2.2x2.2mm |
11% |
89% |
9.2KG |
3.2mm |
METART 05-31507 |
3x1.5mm |
7x7mm |
49% |
51% |
7.0 KG |
3.0mm |
METART 05-31005 |
3x1.0mm |
5x5mm |
39% |
61% |
5.8 KG |
2.0mm |
METART 05-31204 |
3x1.2mm |
4x4mm |
33% |
67% |
7.6KG |
2.5mm |
METART 05-31205 |
3x1.2mm |
5x5mm |
39% |
61% |
7.0 KG |
2.4mm |
METART 05-31207 |
3x1.2mm |
7x7mm |
49% |
51% |
5.6 KG |
2.4mm |
METART 05-31210 |
3x1.2mm |
10x10mm |
59% |
41% |
4.3 KG |
2.4mm |
METART 05-31510 |
3x1.5mm |
10x10mm |
59% |
41% |
5.4 KG |
3.0mm |
METART 05-25103 |
2.5x1.0mm |
3x3mm |
29.7% |
70.3% |
7.1 KG |
2.0mm |
METART 05-22134 |
2.2x1.0mm |
3.4x3.4mm |
36.8% |
63.2% |
6.1 KG |
2.0mm |
METART 05-22834 |
2.2x0.8mm |
3.4x3.4mm |
36.8% |
63.2% |
4.9 KG |
1.6mm |
METART 05-22084 |
2.2x0.8mm |
4x4mm |
37% |
63% |
4.0KG |
1.6mm |
METART 05-18186 |
1.8x1.8mm |
6.2x6.2mm |
60% |
40% |
6.4KG |
3.6mm |
