Raw Material: Stainless Steel Grade 201, 304 and 316.

Mesh Type: Rigid Architectural Wire Mesh

Opening Rate: 30%

Estimated Square Meter Weight: Approx 6.9kg/㎡

Finish: Mill Finish

Sheet Size: Custom made.

GET A QUOTE

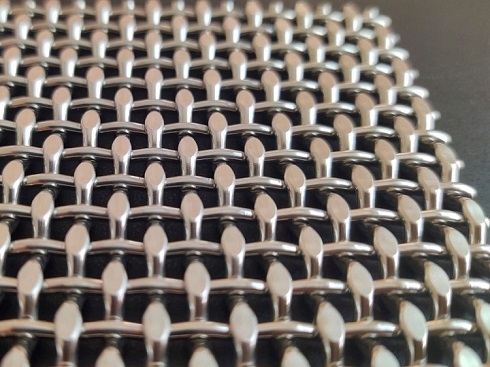

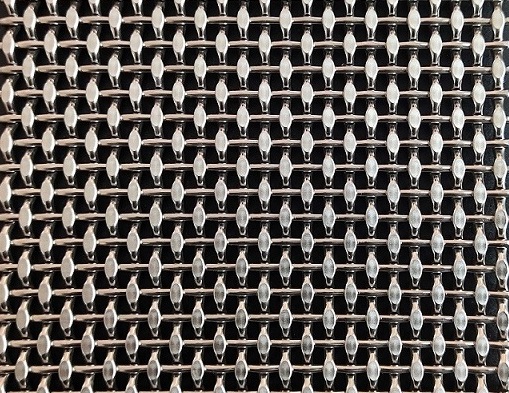

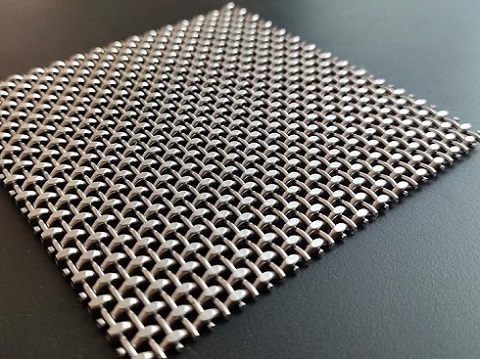

Architectural wire mesh pattern METART-WW31 is constructed with stainless steel wire that is 1.16 mm round and 1.6mm slightly flattened wires.

It is appropriate for use as wall cladding wire mesh, security window or door screen mesh, as well as privacy fencing mesh, etc.

Specifciation Table.

Raw Material	Stainless Steel Grade 201,304 or 316
Mesh Type	Rigid Architectural Wire Mesh
Wire Rod Diameter	1.16mm
Flattened Wire Diameter	1.6mm before flattened, 1.95mm after.
Clear Hole Size	1.9x2.4mm
The total thickness of the fabric	2.9mm
Opening Area	30%
Block out	70%
Privacy Rate	70%
Weight	6.9kg/Square Meter
Finish	Stainless Steel Mill Finish
The way of cutting	Straight Cut
All optional ways of cut	Straight Cut, Diamond Cut
All optional Finishes	Mill Finish ( Original stainless steel bright finish）, Antique Bronze plating, Antique Copper plating, Antique brass plate, vacuum titanium plated, Painted, PVDF Coated,
Custom made specifications and Mini order accepted.
Note: All the measurements including wire thickness, diameter, opening, and overall thickness are nominal numbers. The actual specification might have a tiny bit of tolerance according to fabrication
