METART-WW06-31053-Cabinet Door Wire Mesh

Specification

Material: Stainless Steel Wire Strip Grade 201,304,marine grade 316.

Type: Rigid Architectural Wire Mesh

Opening Area: 41%

Estimated Square Meter Weight: Approx 5.1kg/㎡

Finish: Mill Finish

Screen Width: Custom made

Screen Length: Custom made

GET A QUOTE

Introduction

This is the mill finish version of the straight-cut design METART-WW06-31053.

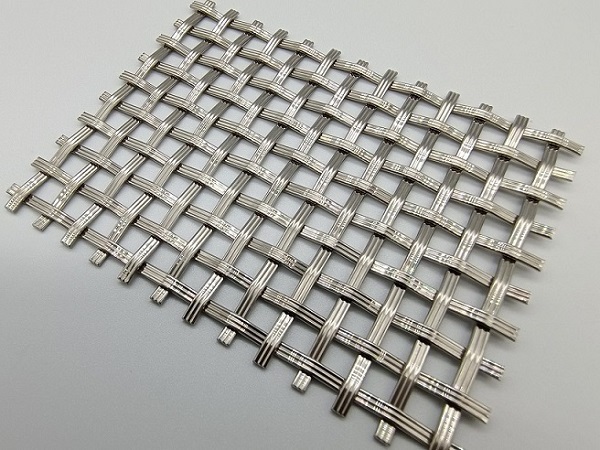

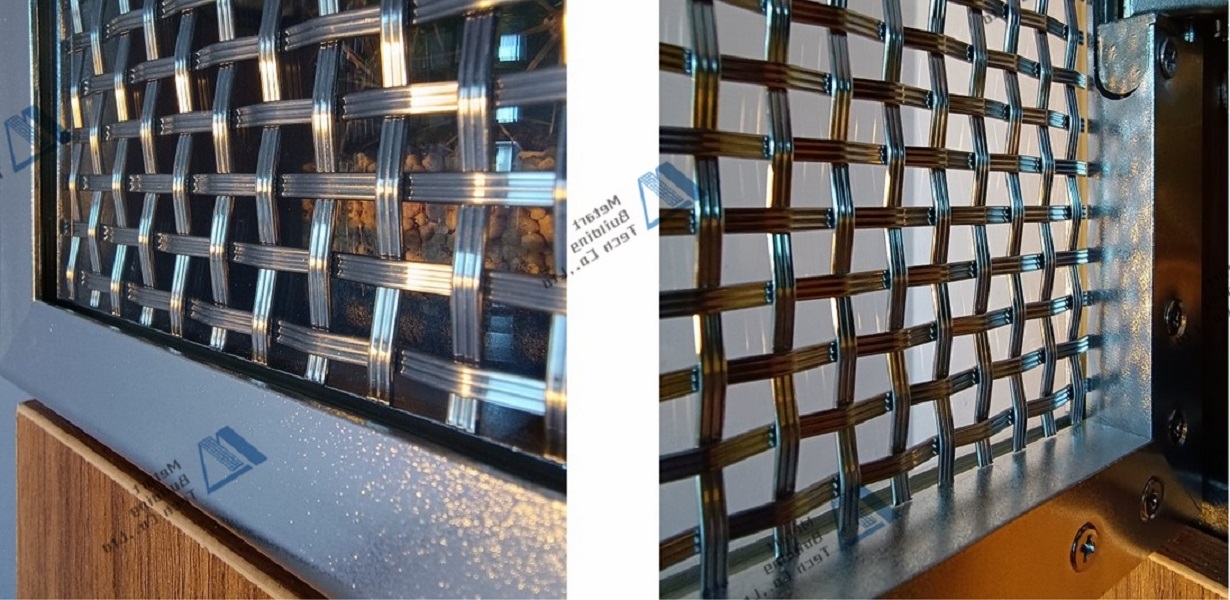

This pattern, which utilizes grooved wire strips measuring 3 mm by 1 mm in both directions, may be used for a variety of cladding decorations as well as cabinet door inserting mesh, divider screen infill wire mesh, and partition infills. After being framed by angles, it can be also used as ceiling screens.

You have a number of options available to you in terms of surface treatments and colors.

Specification Table.

Material

Stainless Steel Grade 201, 304 or 316.

Type

Rigid Decorative Wire Mesh

Flat Wire Strip(WidthxThickness):

3x1.0mm

Clear Hole Size

5.3mm

Overall thickness of the fabric

2mm

Opening Area

41%

Privacy Rate

59%

Estimated Square Meter Weight

5.1kg/㎡

Finish

Stainless Steel Mill Finish

The way of cutting

Straight Cut

All optional ways of cut

Straight Cut, Diamond Cut

All optional Finish

Mill Finish ( Original stainless steel bright finish),
Antique Bronze plating, Antique Copper plating, Antique brass plate,
Vacuum titanium plated, Painted, PVDF Coated,

Custom made specifications and Mini order accepted.

Note:

All the measurements including wire thickness, diameter, opening, and overall thickness are nominal numbers. The actual specification might have a tiny bit of tolerance according to fabrication

Application
