METART-WW09-Antique Brass Kitchen Cabinet Wire Grilles

Specification

Material: SS201,304,316, Brass Wire, Copper Wire, Aluminum Wire

Type: Rigid Architectural Wire Mesh

Opening Area:74%

Estimated Square Meter Weight: Approx

Finish: Antique Brass Plated

Screen Width: Custom made

Screen Length: Custom made

GET A QUOTE

Introduction

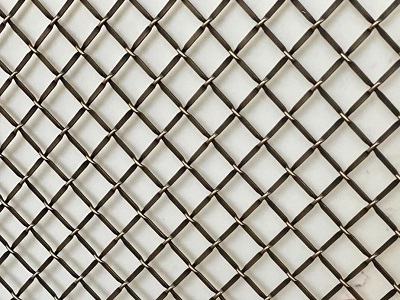

Decorative wire mesh pattern METART WW09 is made of pre-crimped and partially flattened metal wires. The most widely used material is stainless steel wires including grade 201, grade 304, and high corrosion-resistant marine grade 316.
Besides stainless steel, cheaper raw materials mild steel wire galvanized wire, and aluminum can also be used to produce this architectural woven wire pattern.

In order to achieve a better luxurious look, shining copper wires or brass wires are also adopted to produce this pattern.

Using wires 1.8mm before flattened and then made up to an optional aperture size of 10.4mm or 15.4mm.

If you need a bigger hole size, we can also increase the wire diameter to suit bigger hole options.

Specification Table.

Material

Stainless Steel Grade 201, 304, or 316, steeel wire or copper alloy wires.

Type

Rigid Decorative Wire Mesh

Wire Diameter Before Flattened

1.8mm

Clear Hole Size

10.4mm   (15.4mm Optional)

Overall thickness of the fabric

2.6mm

Opening Area

74%

Privacy Rate

26%

Estimated Square Meter Weight

3.2kg/㎡

Finish

Antique Brass Plated

The way of cutting

Diamond Cut

All optional ways of cut

Straight Cut, Diamond Cut

All optional Finishes

Mill Finish ( Original stainless steel bright finish),
Antique Bronze plating, Antique Copper plating, Antique brass plate,
Vacuum titanium plated, Painted, PVDF Coated,

Custom made specifications and Mini order accepted.

Note:

All the measurements including wire thickness, diameter, opening, and overall thickness are nominal numbers. The actual specification might have a tiny bit of tolerance according to fabrication

Application
