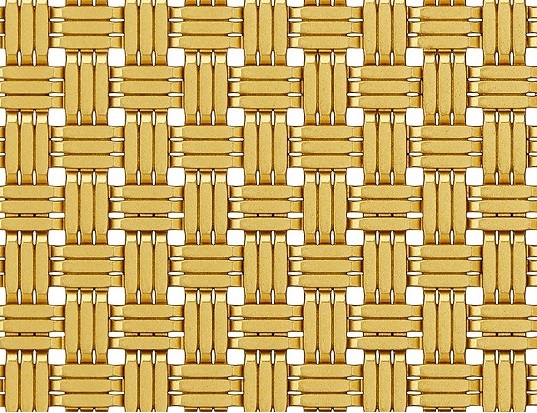

METART-WW34MSS-Architectural Wire Mesh-Satin Brass Plated

Specification

Raw Material: Stainless Steel Grade 201, 304, 316.

Mesh Type: Rigid Architectural Woven Wire Mesh

Opening rate: 10%

Estimated Square Meter Weight: Approx 15.8kg/㎡

Finish: Satin Brass Plating Finish.

Sheet Size: Custom Made.

GET A QUOTE

Introduction

METART-WW34MSS represents a medium-sized version that is with a satin brass plated finish.

Under its stunning golden color, it is originally made of stainless steel wires, including the cheapest 201 grade, the most commonly used 304 grade, and high corrosion-resistant marine grade 316.

As this mesh has a very limited opening area, it is a perfect partition infill decorative material for high-end decoration projects.

Specification Table.

Raw Material

Stainless Steel Grade 201,304 or 316

Mesh Type

Rigid Architectural Wire Mesh

Single Wire Strip

2.7x1.4mm

Strip Group Width (3 wires)

9.1mm

Clear Hole Size

4x4mm

Overall thickness of the fabric

2.8mm

Opening rate

10%

Privacy Rate

90%

Estimated Square Meter Weight

15.8kg/㎡

Finish

Satin Brass Plated Color

The way of cutting

Straight Cut

All optional ways of cut

Straight Cut

All optional Finishes

Mill Finish ( Original stainless steel bright finish),
Antique Bronze plating, Antique Copper plating, Antique brass plate, vacuum titanium plated

Custom made specifications and Mini order accepted.

Note:

All the measurements including wire thickness, diameter, opening, and overall thickness are nominal numbers. The actual specification might have a tiny bit of tolerance according to fabrication
