hello@metartmesh.comMETART-WW35-Lift Wall Cladding Wire Mesh
Raw Material: SS201, SS304, SS316.
Mesh Type: Rigid Architectural Cladding Mesh
Opening rate: 0%
Estimated Square Meter Weight: Approx 13.8kg/㎡
Finish: Mill Finish
Sheet Size: Custom made

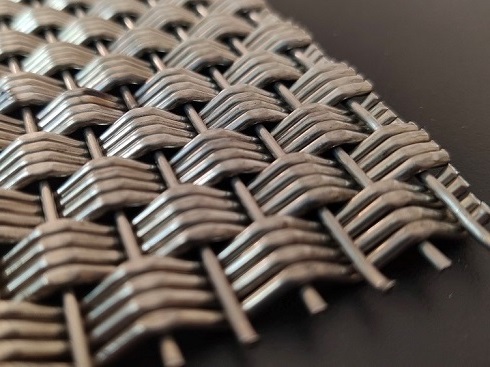

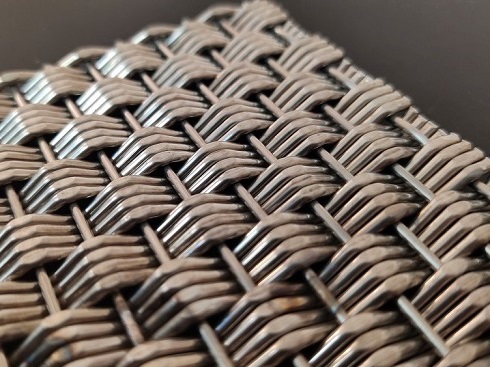

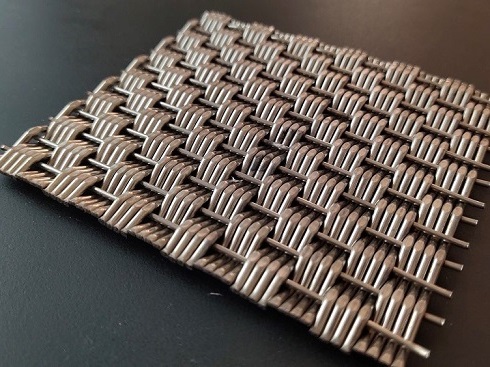

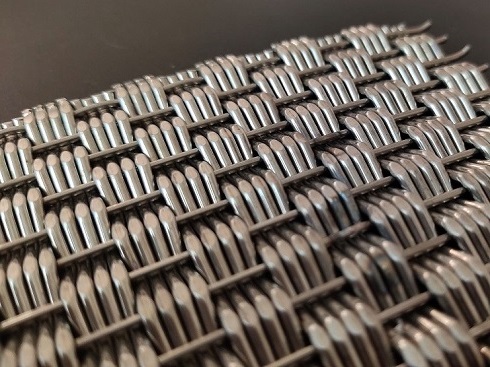

The pattern METART-WW35 is a solid architectural cladding mesh made of tightly woven stainless steel wires.
Produced mainly from premium stainless steel wires like SS304, and SS316, this mesh is designed to last for years with minimal maintenance.
With a weft wire diameter of 1.5mm and 4 warp wires of 2mm each, it offers robust and reliable protection against environmental factors.
Featuring a unique zero-opening design, METAR WW35 provides high-security solutions for architectural projects. It's designed with a 6.5mm weft wire rod pitch, and a 0mm hole size, ensuring privacy and security for your property without compromising on style.
Our METART-WW35 mesh is a perfect fit for various applications, mainly for wall cladding purposes.
Its rigid structure and thickness of 4.5mm make it ideal for projects that require durability, resistance to corrosion, and extreme weather conditions.
Designed to meet the unique needs of architects, builders, and contractors, METART-WW35 provides a high-quality, long-lasting solution for all your architectural wire mesh requirements.
Choose METAR WW35 for your next project and experience the difference in quality and durability that we offer.
Specification Table.
Raw Material |
SS201, SS304, SS316 |
Mesh Type |
Rigid Architectural Cladding Mesh |
Weft Wire Diameter |
1.5mm |
Warp wire (4 wires) |
2mm each wire |
Weft Wire Rod Pitch |
6.5mm |
Clear Hole Size |
0mm |
Overall thickness of the fabric |
4.5mm |
Opening Area |
0% |
Privacy Rate |
100% |
Estimated Square Meter Weight |
13.8kg/㎡ |
Finish |
Stainless Steel Mill Finish |
The way of cutting |
Straight Cut |
All optional ways of cut |
Straight Cut |
All optional Finishes |
Mill Finish ( Original stainless steel bright finish), |
Custom made specifications and Mini order accepted. |
|
Note: All the measurements including wire thickness, diameter, opening, and overall thickness are nominal numbers. The actual specification might have a tiny bit of tolerance according to fabrication |
