METART-WW32-Elevator Cabin Wall Cladding Ornamental Wire Mesh

Specification

Raw Material: SS201, SS304, SS316

Mesh Type: Rigid Architectural Wire Mesh

Opening rate: 0%

Estimated Square Meter Weight: Approx 14.8kg/㎡

Finish: Mill Finish

Sheet Size: Custom made

GET A QUOTE

Introduction

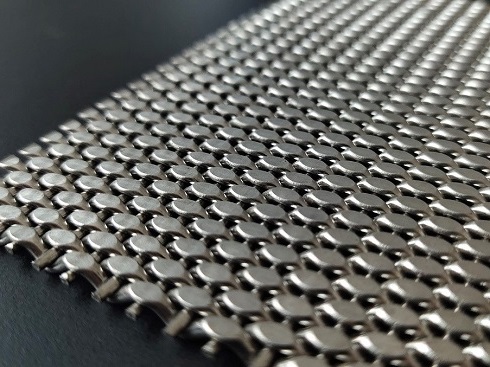

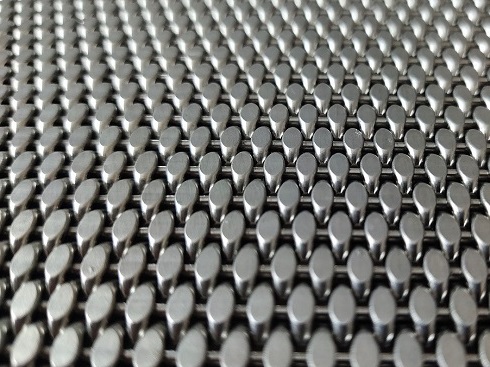

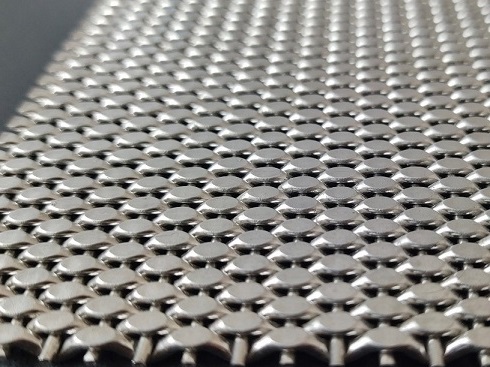

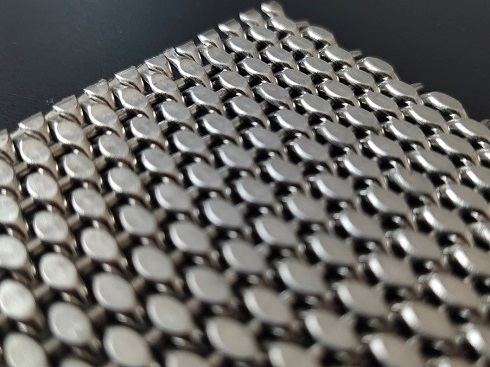

The METAR WW32 is a non-transparent wire mesh pattern that is tightly woven to ensure maximum privacy.

The mesh is constructed from 1.5mm stainless steel wire rods that are woven vertically, and partially flattened staggered 2mm wires that are woven horizontally, making it an ideal solution for elevator cabin wall cladding wire mesh.

This rigid architectural wire mesh is made from high-quality stainless steel, available mainly in SS304, and SS316 raw materials, ensuring the product's longevity and durability.

The METART-WW32 has been specially designed to offer complete privacy, making it an excellent choice for those who value discretion.

Featuring a wire rod pitch of 5mm and a flattened wire pitch of 2mm, the METART-WW32 is a unique and functional wire mesh pattern. It is also ideal for other applications that require complete privacy, making it a versatile and useful solution for a range of different settings.

Overall, the METAR WW32 is an excellent option for those looking for a high-quality, non-transparent cladding wire mesh that provides both functionality and durability.

Its unique design, coupled with its robust construction, makes it an ideal choice for a range of applications, from elevator cabin wall cladding to other areas that require complete metal mesh cladding materials.
Specification Table.

Raw Material

SS201, SS304, SS316

Mesh Type

Rigid Architectural Wire Mesh

Wire Rod Diameter

1.5mm

Flattened Wire Diameter

2mm before flattened.

Wire Rod Pitch

5mm

Flatted wire pitch

2mm

Aperture

0mm

Overall thickness of the fabric

3.5mm

Opening rate

0%

Privacy Rate

100%

Estimated Square Meter Weight

14.8kg/Square Meter

Finish

Stainless Steel Mill Finish.

The way of cutting

Straight Cut

All optional ways of cut

Straight Cut

All optional Finish

Mill Finish ( Original stainless steel bright finish),
Antique Bronze plating, Antique Copper plating, Antique brass plate, vacuum titanium plated

Customized specifications and Mini order accepted.

Note:

All the measurements including wire thickness, diameter, opening, and overall thickness are nominal numbers. The actual specification might have a tiny bit of tolerance according to fabrication
